93050-2503: Description2.50mm (.098") pitch appli-mate rast 2.5 female connector, glow wire compliant, 8 circuits; File Size443KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

93050-2503 Overview

2.50mm (.098") pitch appli-mate rast 2.5 female connector, glow wire compliant, 8 circuits

Preview

Download Datasheet

View All

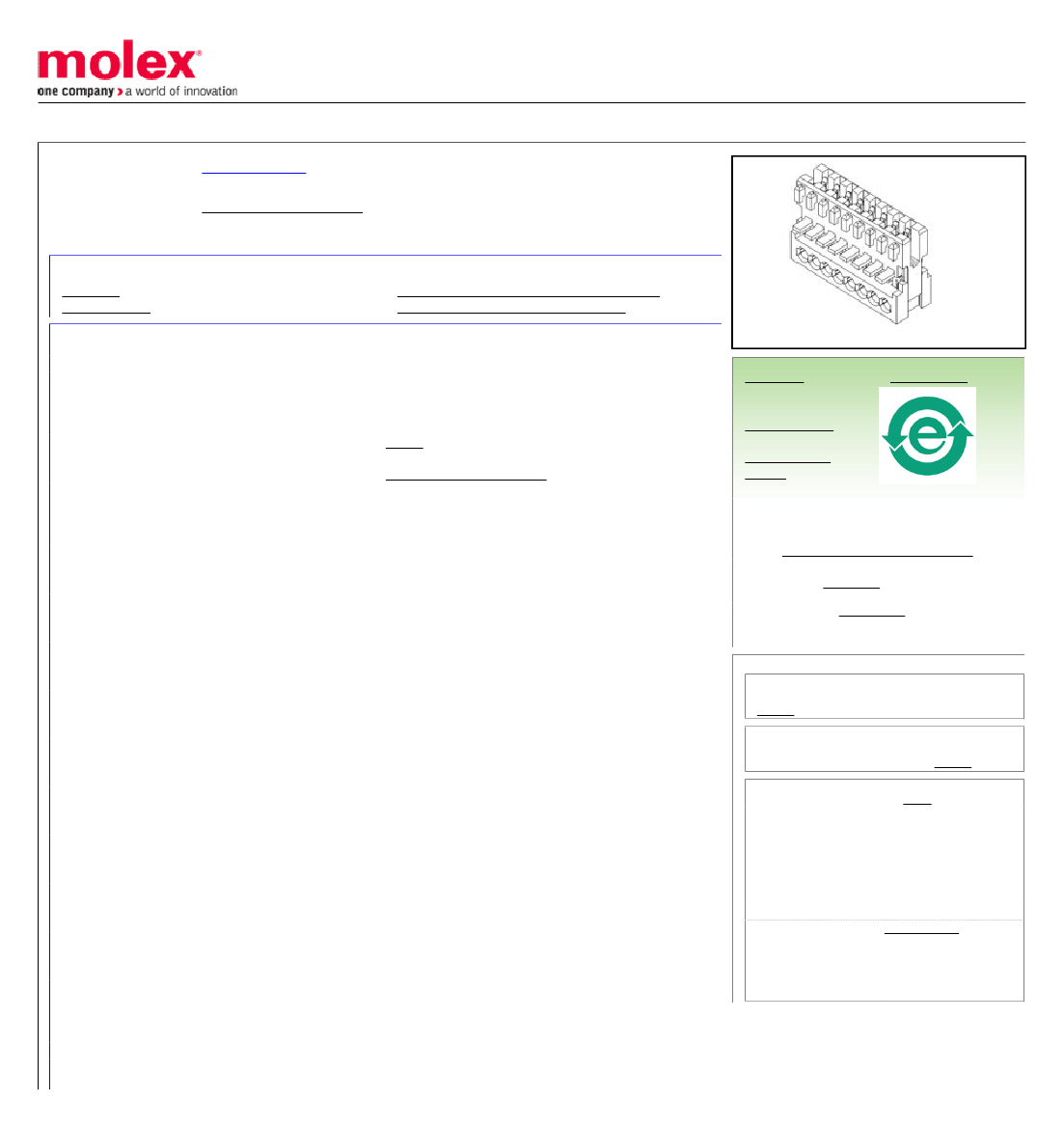

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0930500001

Active

rast_25_connector_system

2.50mm (.098") Pitch Appli-Mate RAST 2.5 Female Connector, Glow Wire Compliant, 3

Circuits, Natural, Open Endwalls, Positions Removed None

Documents:

3D Model

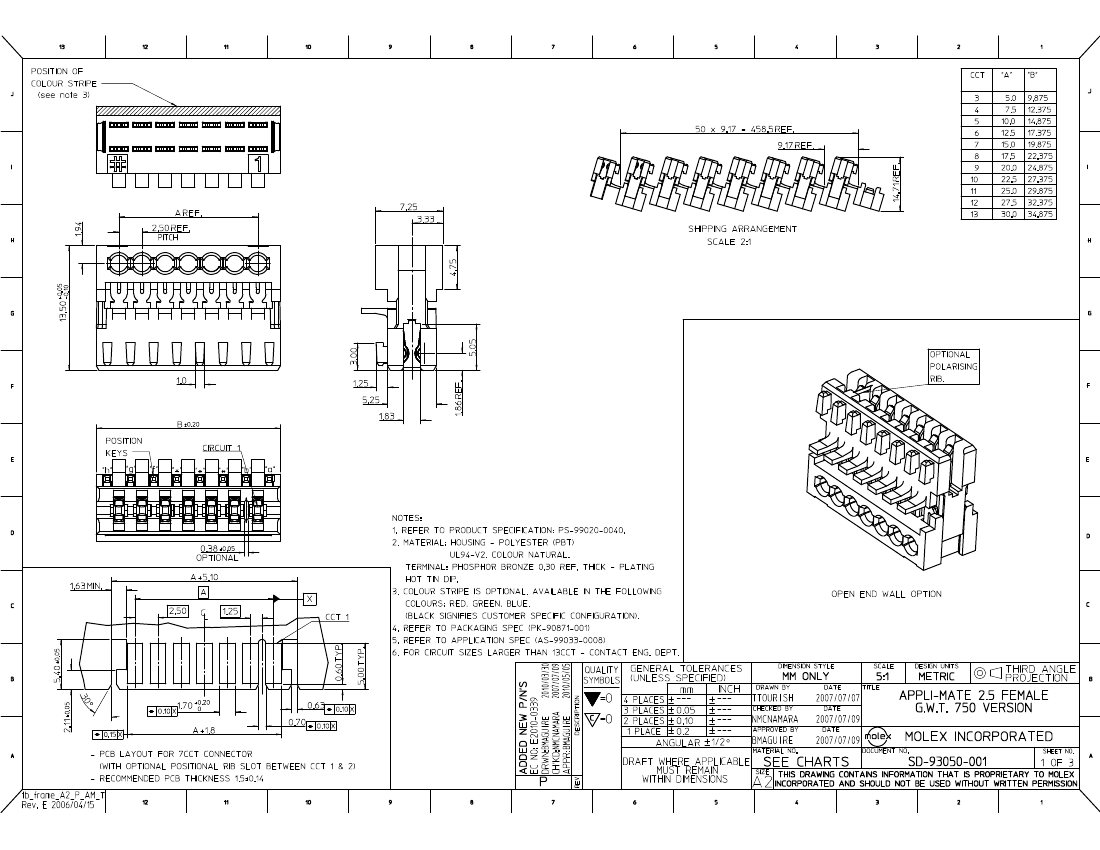

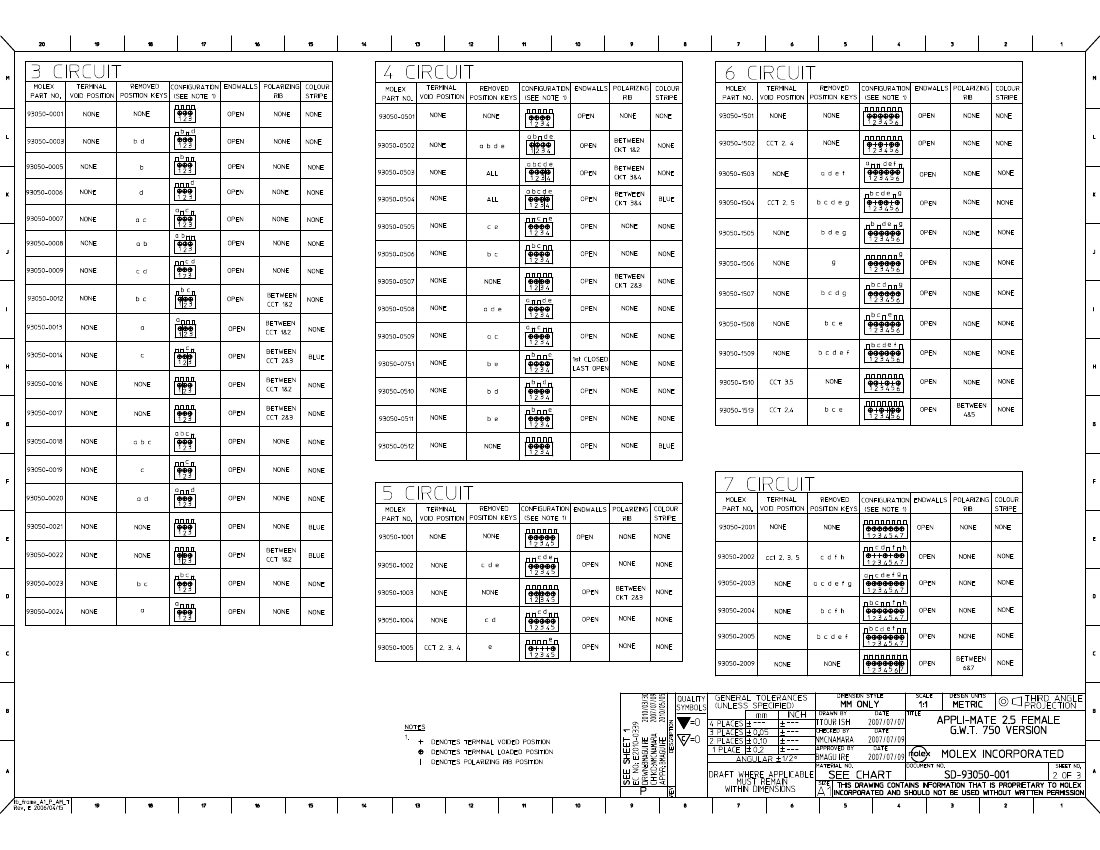

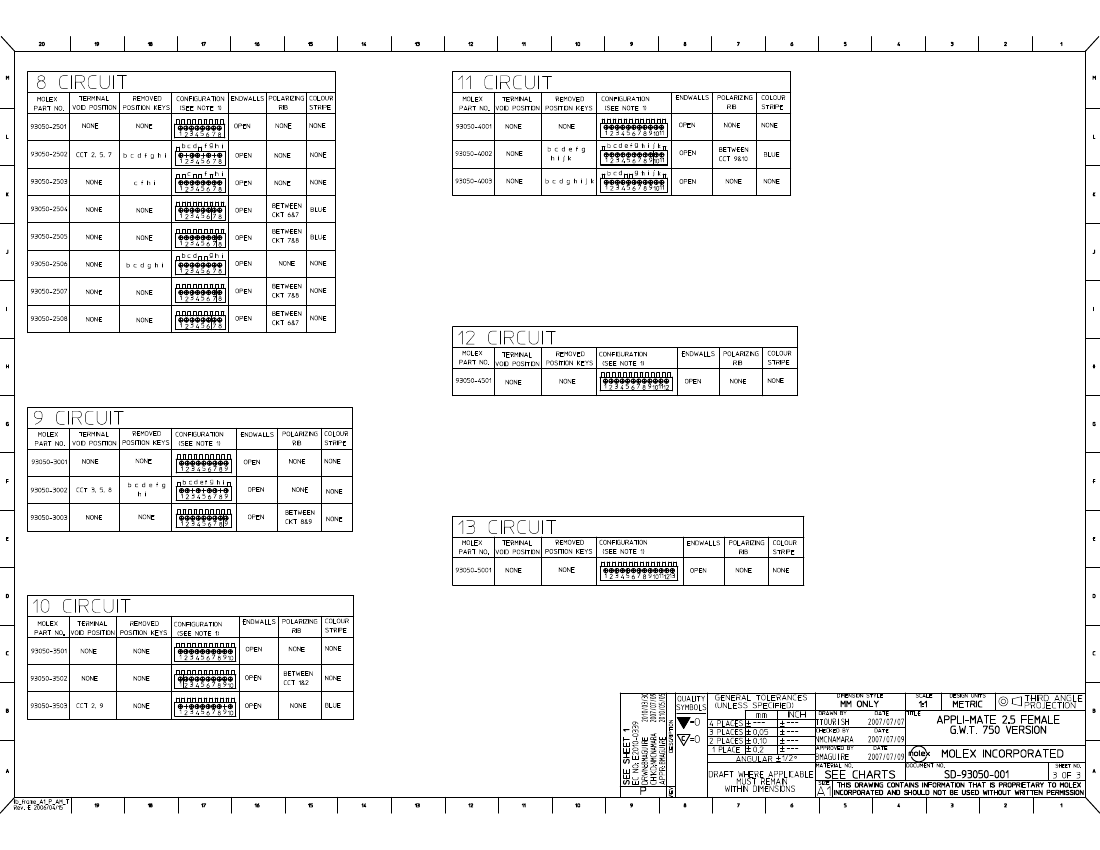

Drawing (PDF)

Product Specification PS-99020-0040 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Crimp Quality Equipment

Overview

Product Name

Use With

IDT and Solder Connectors

93050

Yes

rast_25_connector_system

RAST 2.5

RAST standard interface

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

94V-2

Female

Yes

None

Phosphor Bronze

Tin

Polyester

Tray

0.198 In

5.00 mm

0.198 In

5.00 mm

1.00

-20C TO +120C

IDT or Pierce

22, 24

Search Parts in this Series

93050Series

Mates With

Appli-Mate RAST 2.5 Header 93070

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

RAST 2.5 Semi-

0623006200

Automatic

Terminator Machine

For Appli-Mate™

Connectors

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V AC

Material Info

93050-2503 Related Products

	93050-2503	0930500001	93050-0001
Description	2.50mm (.098") pitch appli-mate rast 2.5 female connector, glow wire compliant, 8 circuits	TWO PART BOARD CONNECTOR	2.50mm (.098") pitch appli-mate rast 2.5 female connector, glow wire compliant, 3 circuits, natural
