5-640867-0 datasheet, PDF - EEWORLD Datasheet

5-640867-0: Description20p mta156 edge conn assy LF; CategoryThe connector; File Size169KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-640867-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-640867-0	-	-	View	Buy Now

20p mta156 edge conn assy LF

Parameter Name	Attribute value
Datasheets
640867
RoHS Informati
5-640867-0 Statement of Compliance
RoHS 2 Stateme
3D Model

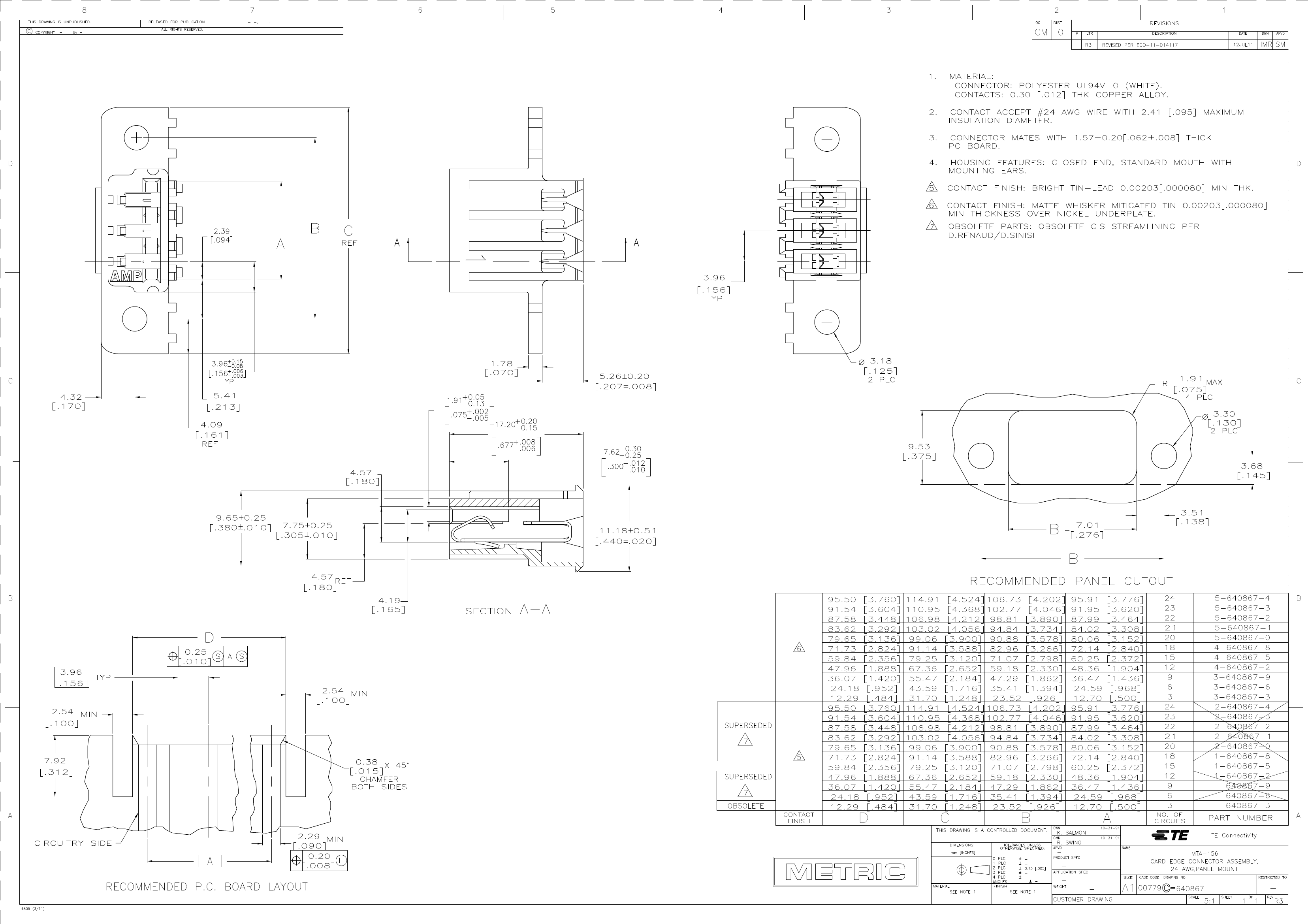

5-640867-0.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk
Card Type	Non Specified - Single Edge
Gende	Female
Number of Positions/Bay/Row	20
Number of Positions	20
Card Thickness	0.062" (1.57mm)
Number of Rows	1
Pitch	0.156" (3.96mm)
Features	-
Mounting Type	Panel Mou
Terminati	IDC
Contact Material	Copper Alloy
Contact Finish	Ti
Contact Finish Thickness	8µin (0.20µm)
Contact Type	-
Col	White
Flange Feature	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Di
Material - Insulati	Polyeste
Operating Temperature	-55°C ~ 105°C
Read Ou	Single

	5-640867-0	4-640867-5	4-640867-2
Description	20p mta156 edge conn assy LF	15p mta156 edge conn assy LF	12p mta156 edge conn assy LF
Standard Package	500	500	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk	Bulk	Bulk
Card Type	Non Specified - Single Edge	Non Specified - Single Edge	Non Specified - Single Edge
Gende	Female	Female	Female
Number of Positions/Bay/Row	20	15	12
Number of Positions	20	15	12
Card Thickness	0.062" (1.57mm)	0.062" (1.57mm)	0.062" (1.57mm)
Number of Rows	1	1	1
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Mounting Type	Panel Mou	Panel Mou	Panel Mou
Terminati	IDC	IDC	IDC
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy
Contact Finish	Ti	Ti	Ti
Contact Finish Thickness	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)
Col	White	White	White
Flange Feature	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Di	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Di	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Di
Material - Insulati	Polyeste	Polyeste	Polyeste
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Read Ou	Single	Single	Single
