74780-0106: DescriptionI/O connector assy hssdc2 Dual row ual row (2x7) IB key; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74780-0106 Overview

I/O connector assy hssdc2 Dual row ual row (2x7) IB key

74780-0106 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	POLARIZED, SHIELDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	74780
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

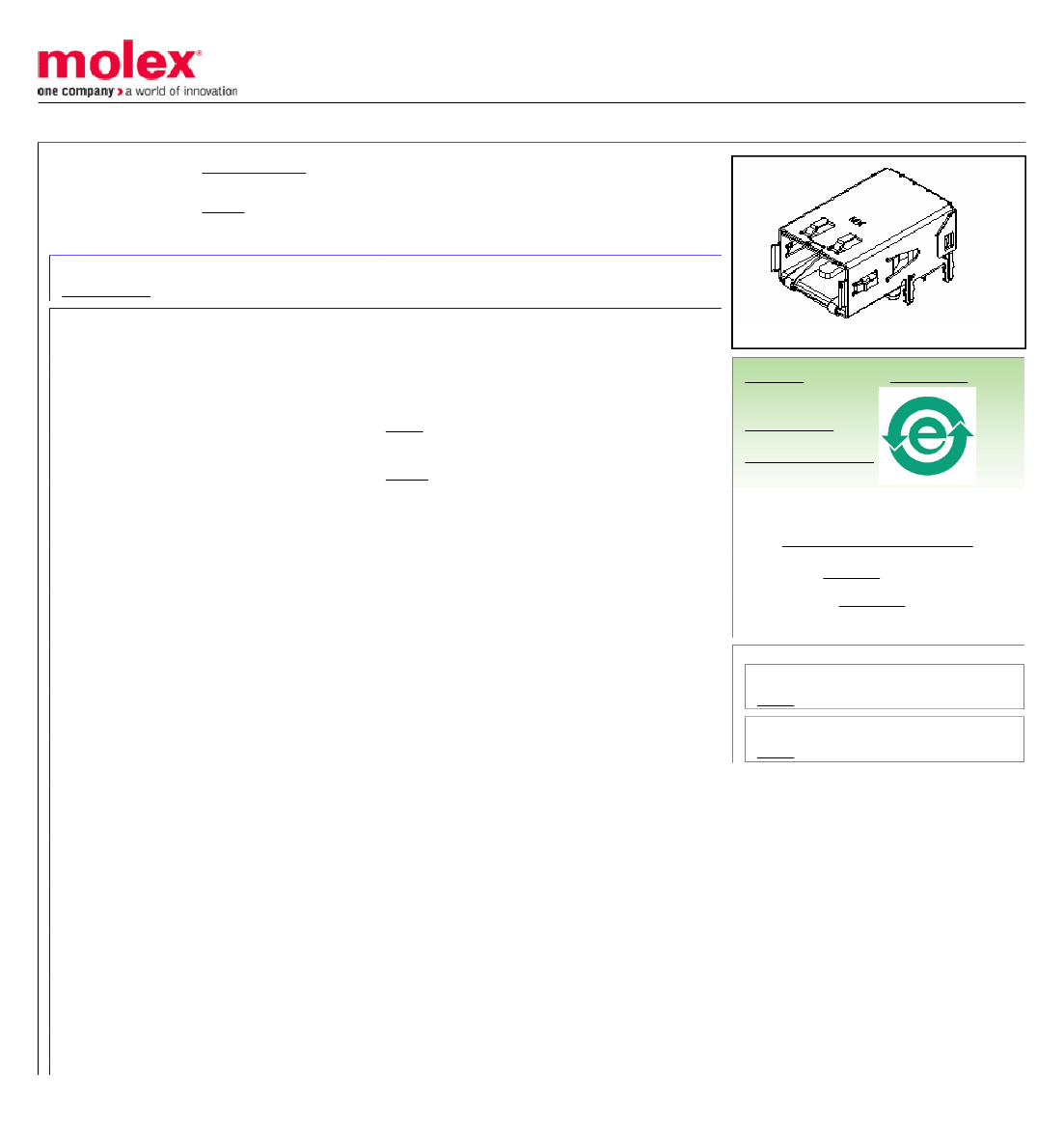

This document was generated on 11/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0747800106

Obsolete

hssdc2

1.27mm (.050") Pitch HSSDC2 Receptacle, Shielded, Right Angle, Dual Row, 14

Circuits

Documents:

Drawing (PDF)

Agency Certification

CSA

UL

LR19980

E29179

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

I/O Connectors

74780

Wire-to-Board

Receptacle

hssdc2

HSSDC2

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

N/A

14

Natural

250

94V-0

Receptacle

Yes

High Performance Alloy (HPA)

Gold

Tin-Lead

High Temperature Thermoplastic

2

Right Angle

2.62mm (.103")

Yes

Tray

No

1.27mm (.050")

Yes

1

Yes

-10°C to +60°C

Surface Mount

No

N/A

Search Parts in this Series

74780Series

Mates With

74514

Electrical

Current - Maximum per Contact

0.5A
