3-5147490-6 datasheet, PDF - EEWORLD Datasheet

3-5147490-6: Descriptionconn next gen pace 36dual pos; CategoryThe connector; File Size287KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-5147490-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-5147490-6	-	-	View	Buy Now

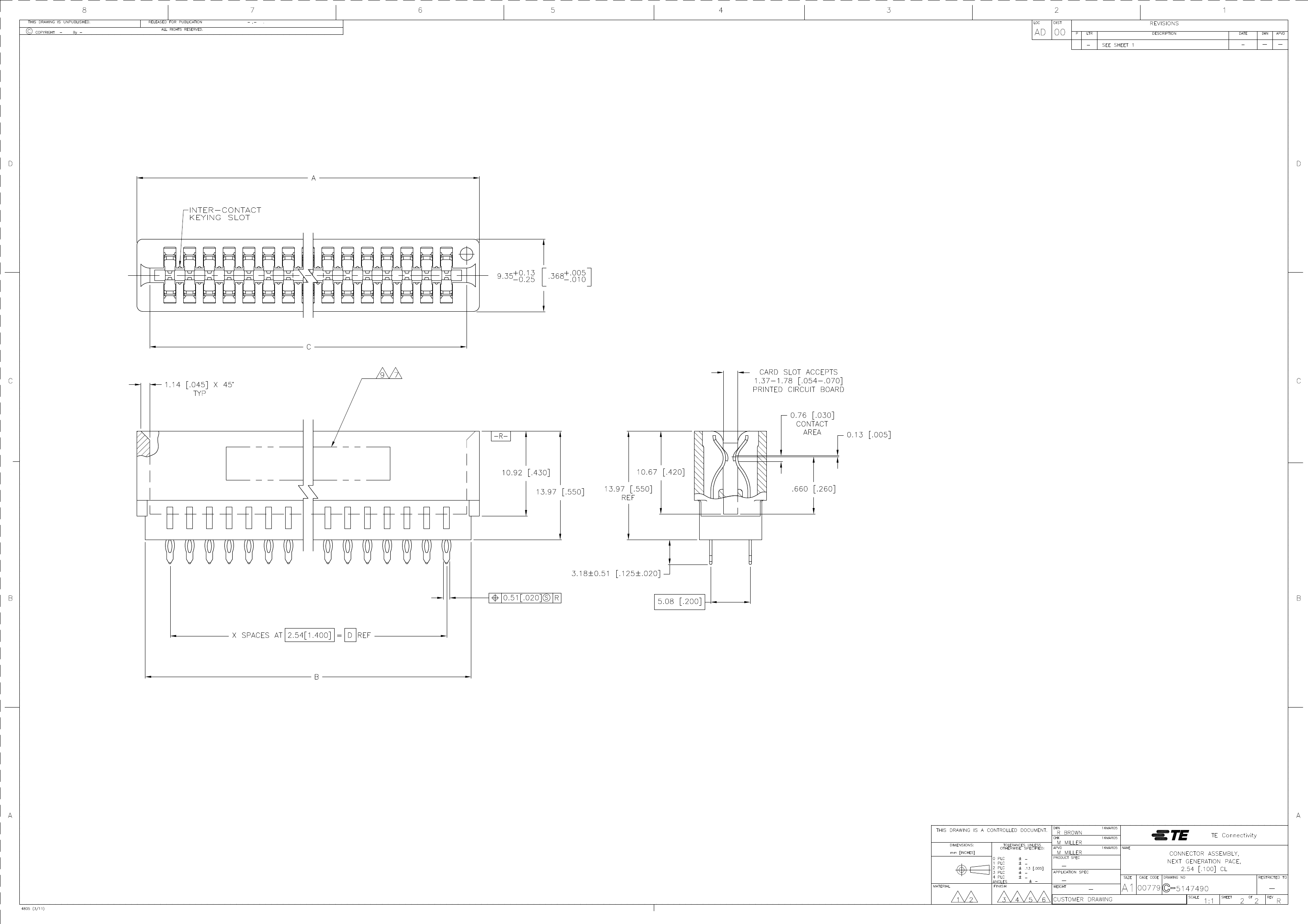

conn next gen pace 36dual pos

Parameter Name	Attribute value
Datasheets
5147490
Standard Package	810
Category	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk
Card Type	Non Specified - Dual Edge
Gende	Female
Number of Positions/Bay/Row	-
Number of Positions	72
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows	2
Pitch	0.100" (2.54mm)
Features	-
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Contact Type	-
Col	Black
Flange Feature	-
Material - Insulati	Polyester, Glass Filled
Operating Temperature	-
Read Ou	Dual

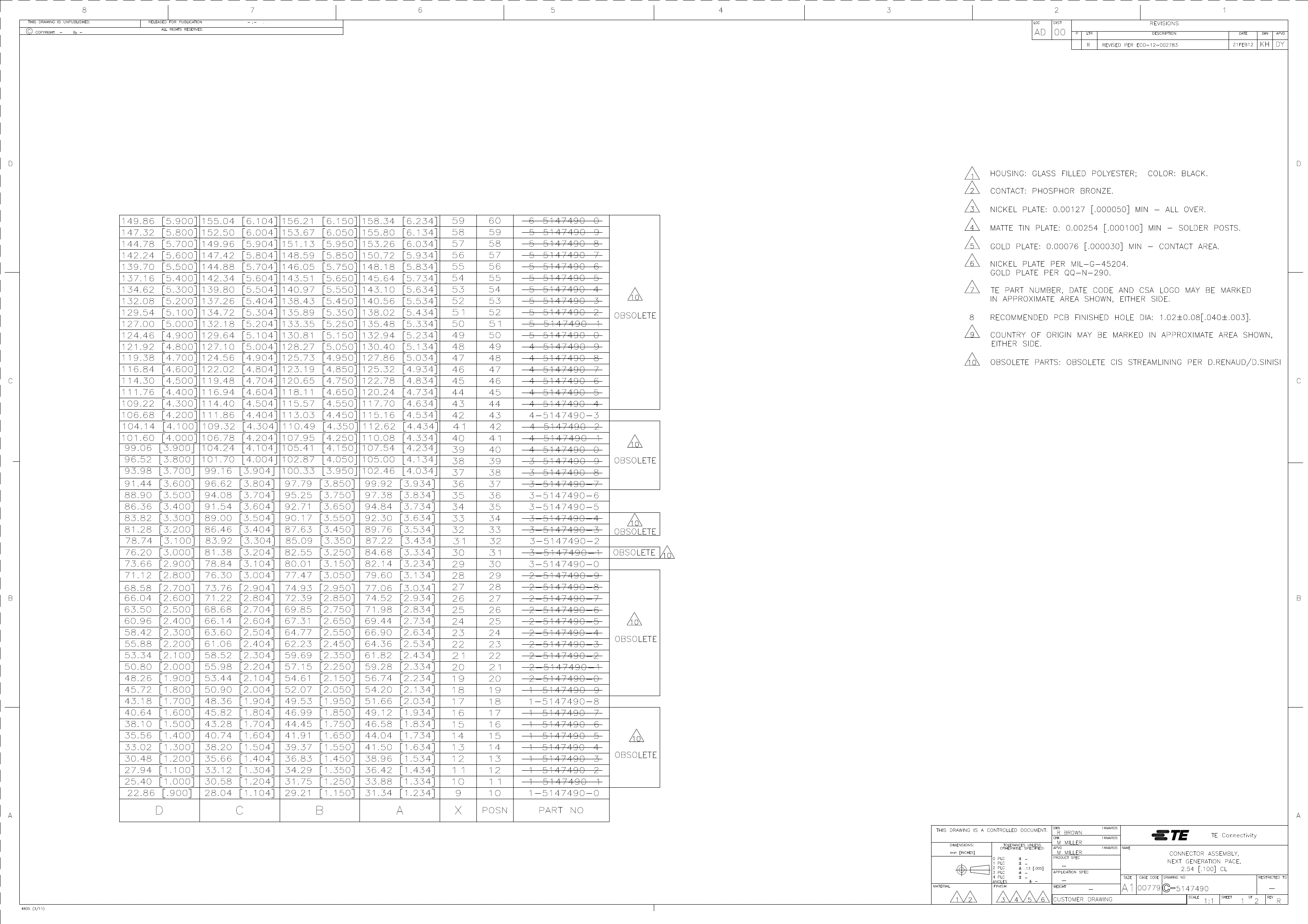

	3-5147490-6	1-5147490-8	2-5147490-0	2-5147490-5
Description	conn next gen pace 36dual pos	conn next gen pace 18dual pos	conn next gen pace 20dual pos	conn next gen pace 25dual pos
Standard Package	810	1,620	486	378
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk	Bulk	Bulk	Bulk
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge
Gende	Female	Female	Female	Female
Number of Positions	72	36	40	50
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)	0.054" ~ 0.070" (1.37mm ~ 1.78mm)	0.054" ~ 0.070" (1.37mm ~ 1.78mm)	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows	2	2	2	2
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
Material - Insulati	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled
Read Ou	Dual	Dual	Dual	Dual
