5106774-1 datasheet, PDF - EEWORLD Datasheet

5106774-1: Descriptionconn rcpt HM 125pos vert 2mm; CategoryThe connector; File Size127KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5106774-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5106774-1	-	-	View	Buy Now

conn rcpt HM 125pos vert 2mm

Parameter Name	Attribute value
Datasheets
5106774
Product Photos
5106774-1
RoHS Informati
5106774-1 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings

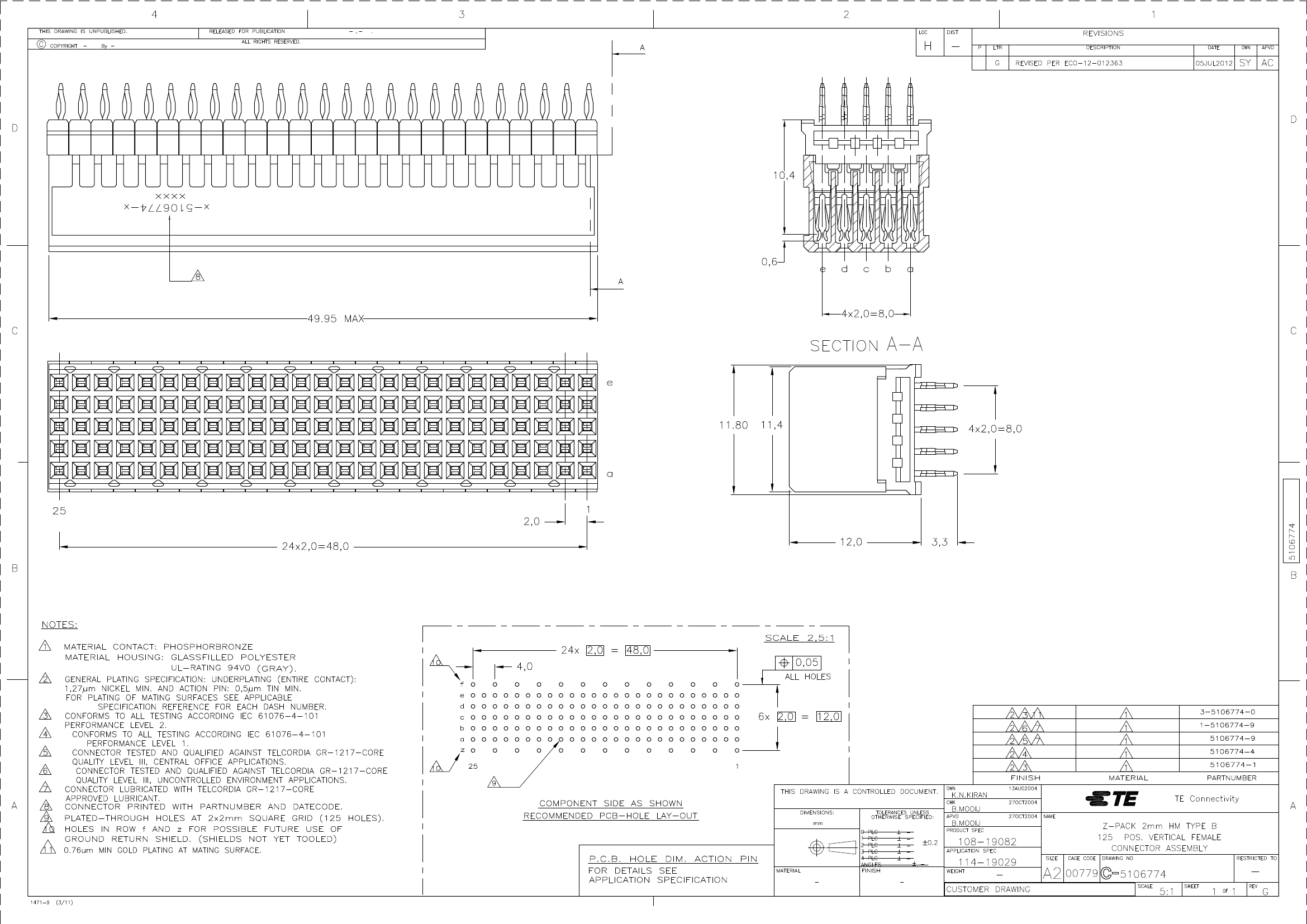

Z-Pack Receptacle Through Hole
Standard Package	11
Category	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard
Packaging	Tube
Connector Type	Receptacle, Female Sockets
Connector Style	B 25
Number of Positions	125
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	5
Mounting Type	Through Hole
Terminati	Press-Fi
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Current Rating	1.5A
Voltage Rating	500V
Operating Temperature	-55°C ~ 125°C
Features	-
Dynamic Catalog	Z-Pack Series
Mating Products	A97848-ND - CONN HEADER 125POS VERT 2MMA97871-ND - CONN HEADER 125POS RT ANG 2MM
Other Names	5106774-1-ND51067741A97874

	5106774-1	1-5106774-9	5106774-9
Description	conn rcpt HM 125pos vert 2mm	conn recept 125pos type B vert	conn rcpt HM 125pos vert 2mm
Standard Package	11	385	385
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard	Backplane Connectors - Hard Metric, Standard	Backplane Connectors - Hard Metric, Standard
Packaging	Tube	Bulk	Bulk
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Connector Style	B 25	B 25	B 25
Number of Positions	125	125	125
Number of Positions Loaded	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	5	5	5
Mounting Type	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi
Connector Usage	Backplane	Backplane	Backplane
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	50µin (1.27µm)	30µin (0.76µm)
Current Rating	1.5A	1.5A	1.5A
Voltage Rating	500V	500V	500V
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
