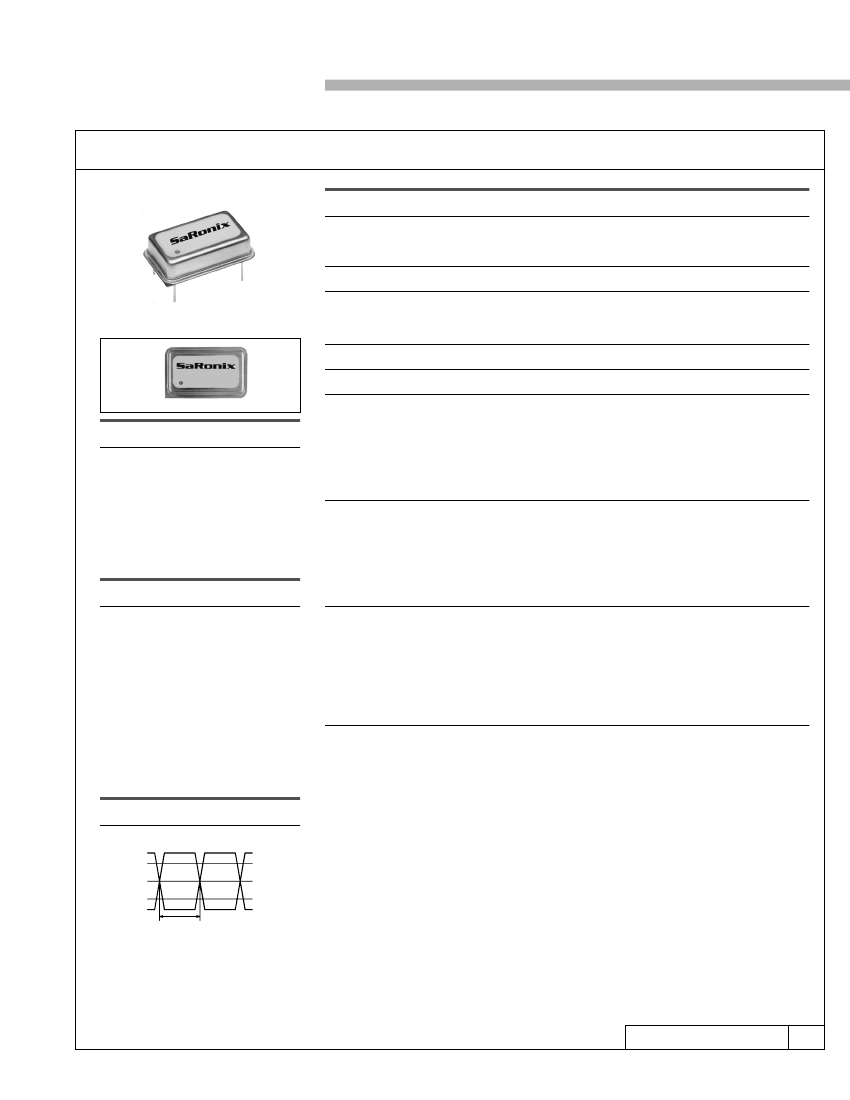

SaRonix
Voltage Controlled Crystal Oscillator
Technical Data
Frequency Range:
Frequency Stability:
38.88 MHz to 155.52 MHz
±20, ±25, ±50, or ±100 ppm over all conditions: operating
temperature, supply voltage change, load change, calibration
tolerance, shock and vibration.
±3ppm max per year, ±7ppm max over 10 years
PECL
S1550 Series
Aging @ 25°C:
Temperature Range:
Operating:
Storage:
Supply Voltage (V
CC
):
Supply Current:
ACTUAL SIZE
0°C to +70°C or -40°C to +85°C
-55°C to +125°C
+5.0V ±5%
70mA typ, 100mA max
Output Drive:
Symmetry:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Jitter:
Pull Characteristics:
Input Impedence (Pin 1):
Frequency Response (-3dB):
Pullability:
Control Voltage:
Linearity:
Transfer Function:
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
MIL-STD-202, Method 213, Condition F
MIL-STD-883, Method 2003
MIL-STD-202, Method 211, Conditions A & C
MIL-STD-883, Method 2007, Condition A
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition A, B or C
(I or J for Gull-wing)
45/55% max @ outputs crossing
1.2ns T
r
max & 1.7ns T
f
max, 20% to 80% of output waveform
V
CC
-1.60 max
V
CC
-1.02 min
50Ω to V
CC
-2V (all outputs require termination)
3.5ps max RMS period jitter
Description
A voltage controlled crystal oscillator
designed primarily for use in phase locked
loops, phase shift keying, ATM, SDH
and network/switch applications. Output
is Motorola 10KH compatible. Device is
packaged in a 14-pin DIP compatible,
resistance welded package. Case is
grounded to Pin 7 to reduce EMI.
Applications & Features
•
Positive supply voltage ECL (PECL)
˜
Complementary outputs
•
Wide frequency range from 38.88 MHz
to 155.52 MHz using SaRonix funda-
mental crystals for exceptional jitter
performance
•
±50 or ±100 ppm minimum APR*
•
Covers wide range of telecommunica-
tion applications
•
Other features such as enable/disable
and negative supply are available in
this series, consult factory
Output Waveforms
Logic 1
80%
V
OH
Min
Outputs
Crossing
20%
Logic 0
SYMMETRY
45% Min, 55% Max
V
OL
Max
50KΩ min
10 kHz min
±50 or ±100 ppm min APR* (V
C
= +2.5 ±2V)
+0.5V to +4.5V
10% max
Frequency increases when control voltage increases
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014, Condition C
1014, Condition A2
1011, Condition A
1004
*
APR = (VCXO Pull relative to specified Output Frequency)
–
(VCXO Frequency Stability)
DS-157
REV C
5.5
SaRonix
www.pericom.com/saronix
SaRonix
Voltage Controlled Crystal Oscillator
Technical Data
Package Details
Part Numbering Guide
S 1550 A A B
21.0
max
.825
0.91
.036
5.08
max
.200
5.77±0.5
.227±.02
15.24±.13
.600±.005
0.46±.08
.018±.003
PECL
S1550 Series
- 77.7600
Frequency (MHz)
Package
Blank = 5.08mm high
M = 7.49mm high (not shown)
K = 5.08mm high, gull wing
J = 7.49mm high, gull wing
Linearity
B = 10% max
Model
ECL VCXO Series
Stability Tolerance
AA = ±20 ppm, 0 to +70°C
*
A = ±25 ppm, 0 to +70°C
*
B = ±50 ppm, 0 to +70°C
C = ±100 ppm, 0 to +70°C
*
E = ±50 ppm, -40 to +85°C
Pin 1
Pin 7
7.75
max
.305
Pullability
(APR)
**
A = ±50 ppm min
B = ±100 ppm min
13.0
.510
max
*
A pullability only
**
APR = (VCXO Pull relative to specified Output Frequency)
Test Circuit
–
(VCXO Frequency Stability)
Pin 14
Pin 10
2.54
.100
2.54
.100
Pin 8
Pin 9
Q
Gull Wing Package
Pin 9
1.78
typ
.070
+2.0V
Pin 14
Pin 10
Pin 8
50Ω INTERNAL SCOPE
TERMINATION
TO GND
Q
OSCILLATOR
50Ω INTERNAL SCOPE
TERMINATION
TO GND
Pin 7
13.46±.25
.530±.010
Pin 1
CONTROL
VOLTAGE
-3.0V
Pin Functions:
Pin 1: Control Voltage
Pin 7: GND / Case
Pin 8: Q Output
Pin 9: Q Output
Pin 10: N/C
Pin 14: Supply Voltage
Marking Format
**
Includes Date Code, Frequency & Model
SARONIX
VCXO
Denotes Pin 1
**
Exact location of items may vary
Scale: None (Dimensions in
mm
)
inches
All specifications are subject to change without notice.
DS-157
REV C
5.6
SaRonix
www.pericom.com/saronix
