583717-5

Description
conn cardedge hsg dual 34pos
CategoryThe connector
File Size213KB，2 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

583717-5 Online Shopping

Suppliers Part Number Price MOQ In stock
583717-5 - - View Buy Now

583717-5 Overview

conn cardedge hsg dual 34pos

583717-5 Parametric

Parameter NameAttribute value
Datasheets

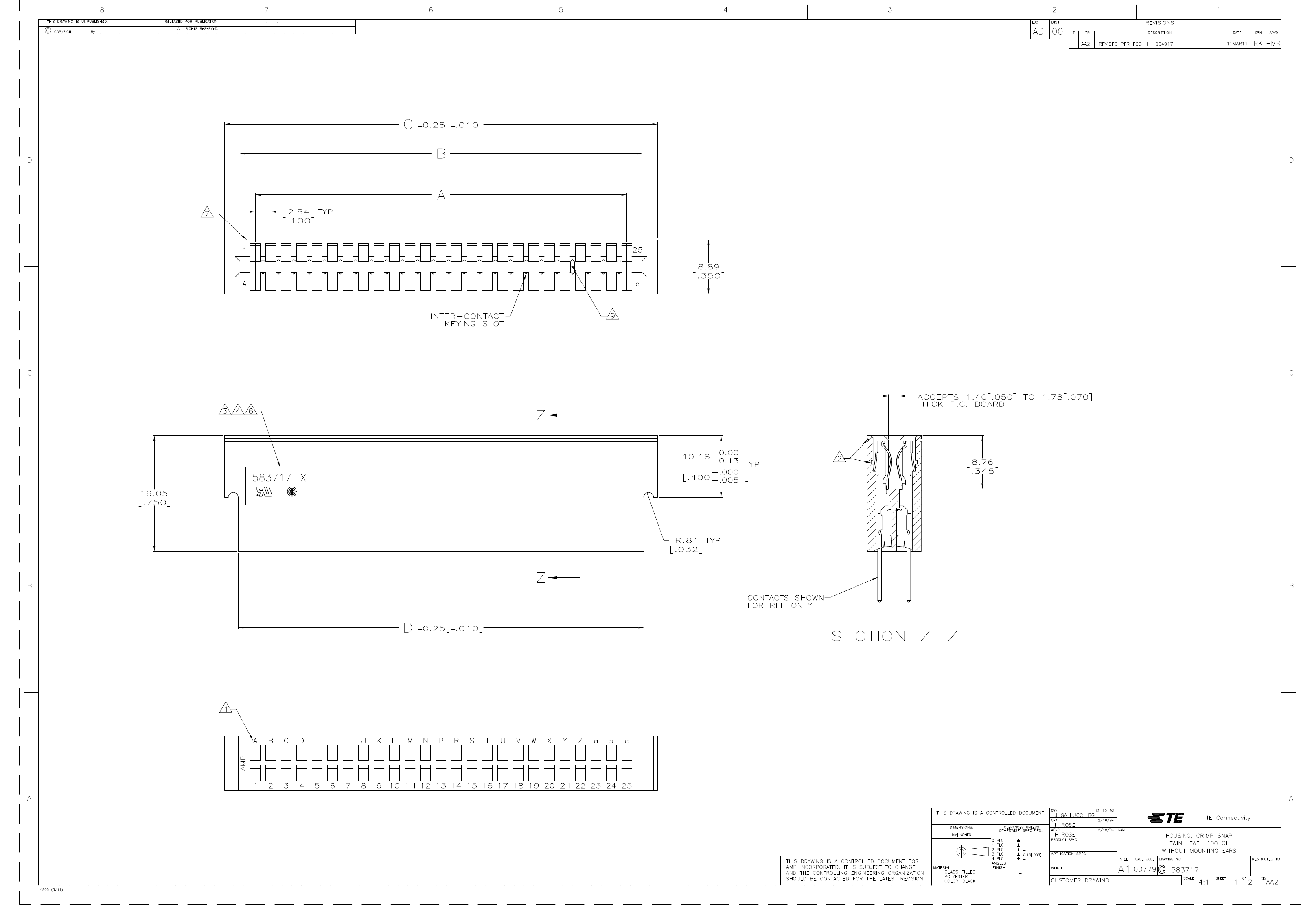

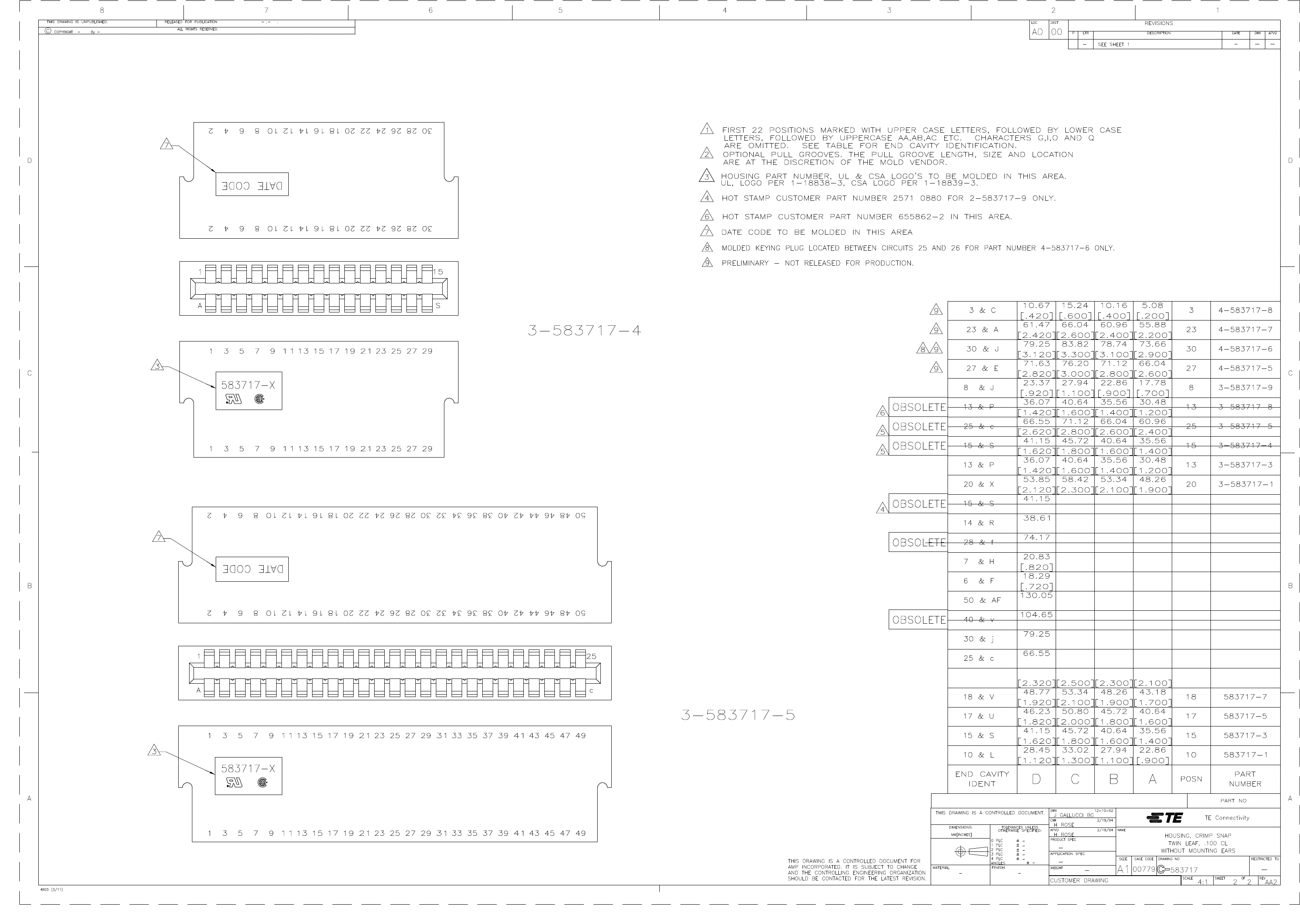

583717 Drawing
RoHS Informati
583717-5 Statement of Compliance
RoHS 2 Stateme
Standard Package1,100
CategoryConnectors, Interconnects
FamilyCard Edge Connectors - Housings
PackagingBulk
Card TypeNon Specified - Dual Edge
Number of Positions34
Card Thickness0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Pitch0.100" (2.54mm)
Features-
Mounting TypeFree Hanging (In-Line)
ColBlack
Flange Feature-
Material - InsulatiPolyester Thermoplastic, Glass Filled
NoteContacts Not Provided
Material Flammability RatingUL94 V-0
Operating Temperature-40°C ~ 85°C
Associated Produc583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP

Preview

Download Datasheet

583717-5 Related Products

583717-5 1-583717-1 3-583717-3 583717-1 1-583717-3 2-583717-1 3-583717-1 2-583717-7 1-583717-9
Description conn cardedge hsg dual 34pos conn cardedge hsg dual 50pos conn cardedge hsg dual 26pos conn cardedge hsg dual 20pos conn cardedge hsg dual 60pos conn cardedge hsg dual 12pos conn cardedge hsg dual 40pos conn cardedge hsg dual 28pos conn cardedge hsg dual 100pos
Standard Package 1,100 200 300 1 1 2,200 1,000 1,200 1,200
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects
Family Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings Card Edge Connectors - Housings
Packaging Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk
Card Type Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge Non Specified - Dual Edge
Number of Positions 34 50 26 20 60 12 40 28 100
Card Thickness 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm) 0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Pitch 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Col Black Black Black Black Black Black Black Black Black
Material - Insulati Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled Polyester Thermoplastic, Glass Filled
Note Contacts Not Provided Contacts Not Provided Contacts Not Provided Contacts Not Provided Contacts Not Provided Contacts Not Provided Contacts Not Provided Contacts Not Provided Contacts Not Provided
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Associated Produc 583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP 583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP 583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP 583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP 531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP - - 583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP 583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP
Other Names - 1-583717-1-NDA112409 3-583717-3-NDA113500 583717-1-NDA114057Q1146431C 1-583717-3-NDA112410 - - Q1146431A -
