583718-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 583718-9

583718-9: Descriptionconn cardedge hsg dual 44pos; CategoryThe connector; File Size281KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

583718-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	583718-9	-	-	View	Buy Now

583718-9 Overview

conn cardedge hsg dual 44pos

583718-9 Parametric

Parameter Name	Attribute value
Datasheets
583718
Product Photos
583718-9
RoHS Informati
583718-9 Statement of Compliance
RoHS 2 Stateme
3D Model
583718-9.pdf
Standard Package	125
Category	Connectors, Interconnects
Family	Card Edge Connectors - Housings
Packaging	Bulk
Card Type	Non Specified - Dual Edge
Number of Positions	44
Card Thickness	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Pitch	0.100" (2.54mm)
Features	Flange
Mounting Type	Panel Mou
Col	Black
Flange Feature	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di
Material - Insulati	Polyester Thermoplastic, Glass Filled
Note	Contacts Not Provided
Material Flammability Rating	UL94 V-0
Operating Temperature	-40°C ~ 85°C
Associated Produc	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP
Other Names	583718-9-NDA114059

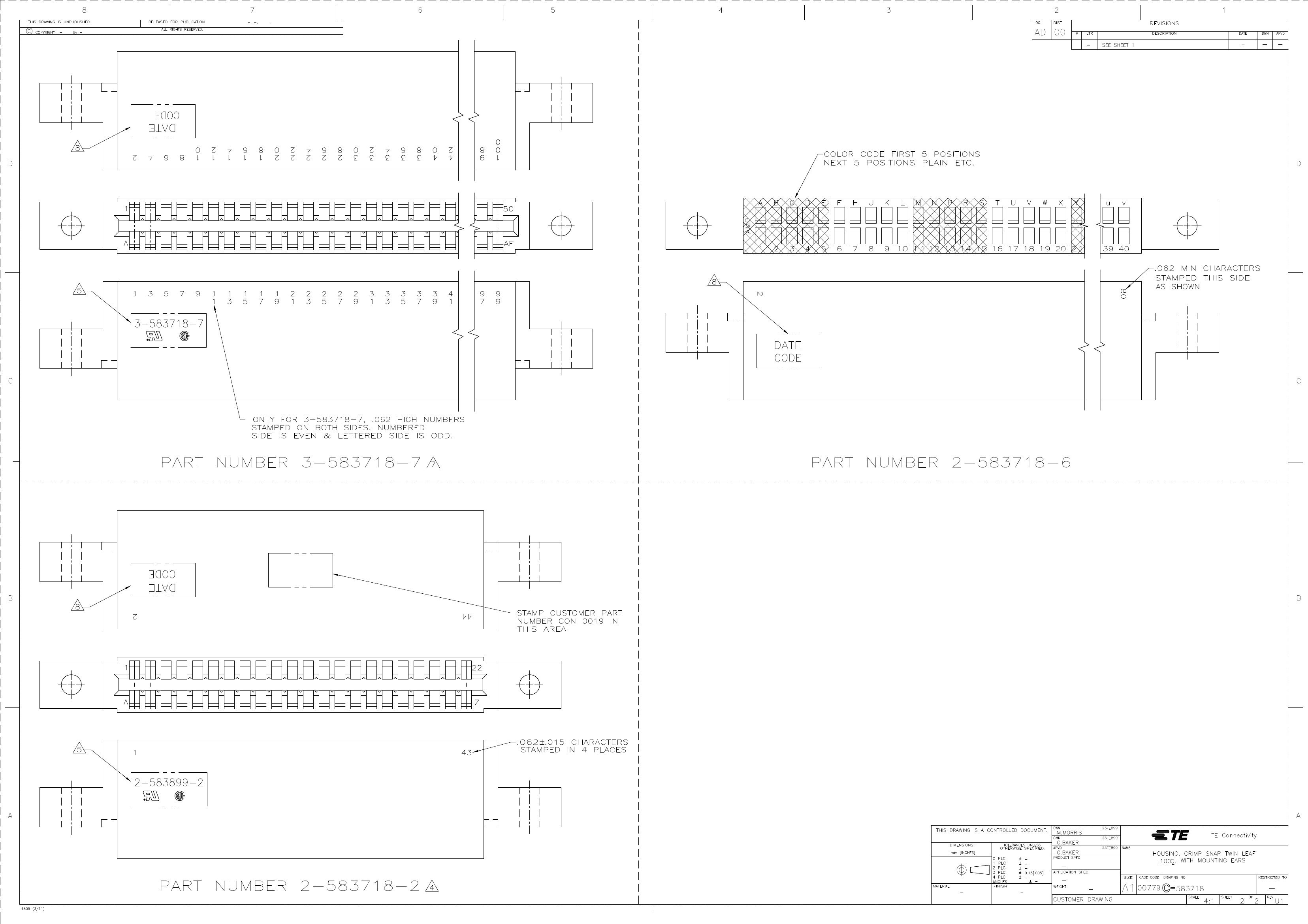

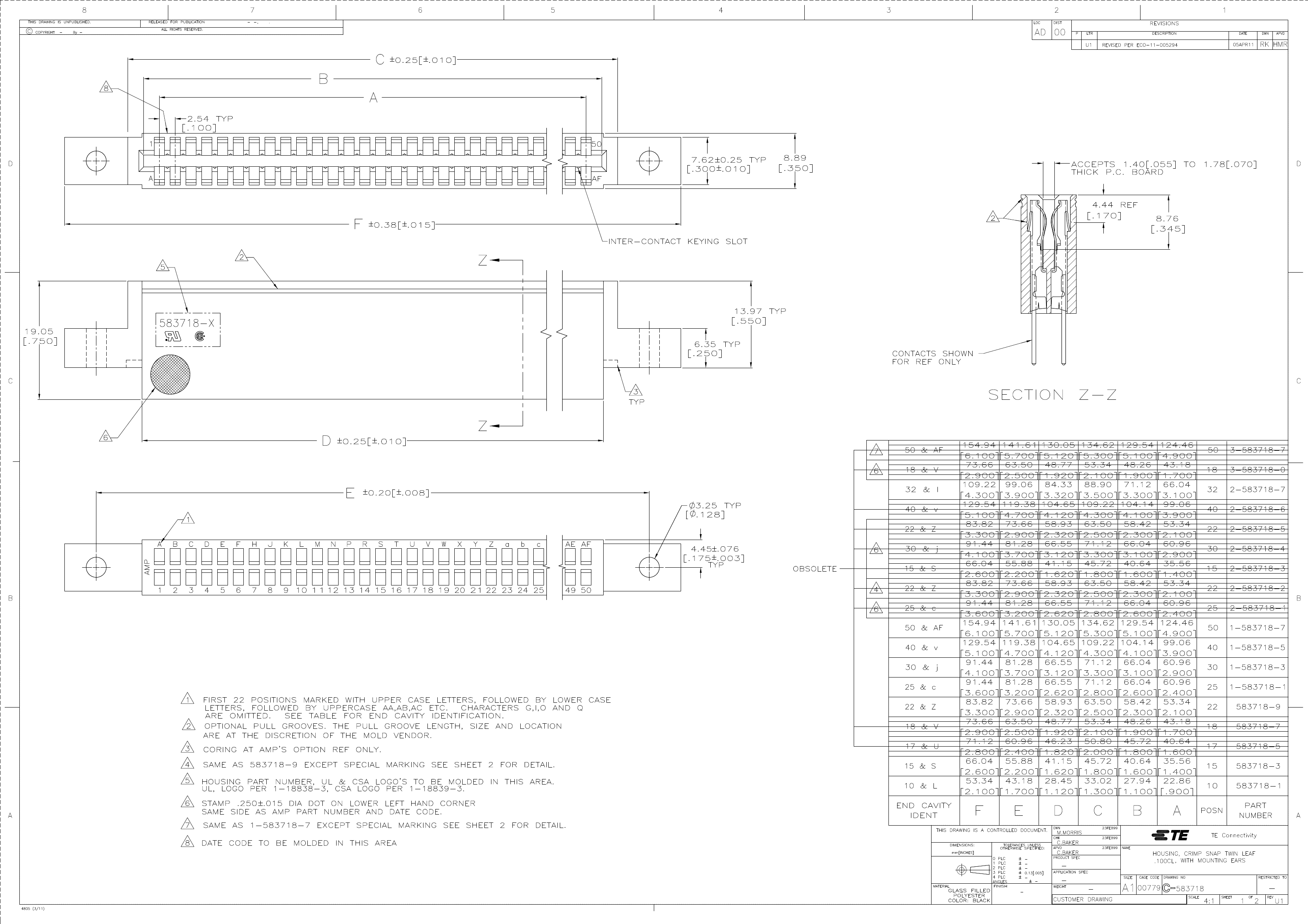

Preview

Download Datasheet

View All

583718-9 Related Products

	583718-9	1-583718-1	583718-1	2-583718-7	583718-3	1-583718-5	1-583718-3	1-583718-7
Description	conn cardedge hsg dual 44pos	conn cardedge hsg dual 50pos	conn cardedge hsg dual 20pos	conn cardedge hsg dual 64pos	conn cardedge hsg dual 30pos	conn cardedge hsg dual 80pos	conn cardedge hsg dual 60pos	conn cardedge hsg dual 100pos
Standard Package	125	200	300	125	300	125	2,500	400
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Card Edge Connectors - Housings	Card Edge Connectors - Housings	Card Edge Connectors - Housings	Card Edge Connectors - Housings	Card Edge Connectors - Housings	Card Edge Connectors - Housings	Card Edge Connectors - Housings	Card Edge Connectors - Housings
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge
Number of Positions	44	50	20	64	30	80	60	100
Card Thickness	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Features	Flange	Flange	Flange	Flange	Flange	Flange	Flange	Flange
Mounting Type	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou	Panel Mou
Col	Black	Black	Black	Black	Black	Black	Black	Black
Flange Feature	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Di
Material - Insulati	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled
Note	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided	Contacts Not Provided
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Associated Produc	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	A100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPB583854-5-ND - TERM EDGE TWIN LF SLDR EYELETA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP	583879-4-ND - TERM EDGE TWIN LF SLDR POST SNPBA100671TR-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583616-5-ND - TERM EDGE TWIN LF 24-28AWG CRIMP531477-4-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583853-0-ND - TERM EDGE TWIN LF 20-24AWG CRIMP1-583616-0-ND - TERM EDGE TWIN LF 24-28AWG CRIMPA112413-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583853-9-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114062-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA114061-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104031TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP583616-2-ND - TERM EDGE TWIN LF 24-28AWG CRIMP583853-3-ND - TERM EDGE TWIN LF 20-24AWG CRIMPA104032TR-ND - TERM EDGE TWIN LF 20-24AWG CRIMP
Other Names	583718-9-NDA114059	1-583718-1-NDA112411	5837181	25837187	583718-3-NDA114058	1-583718-5-NDA112412	-	-
