532434-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 532434-1

532434-1: Descriptionconn rcpt 100POS 4row .100 R/A; CategoryThe connector; File Size211KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

532434-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	532434-1	-	-	View	Buy Now

532434-1 Overview

conn rcpt 100POS 4row .100 R/A

532434-1 Parametric

Parameter Name	Attribute value
Datasheets
532434
RoHS Informati
532434-1 Statement of Compliance
3D Model

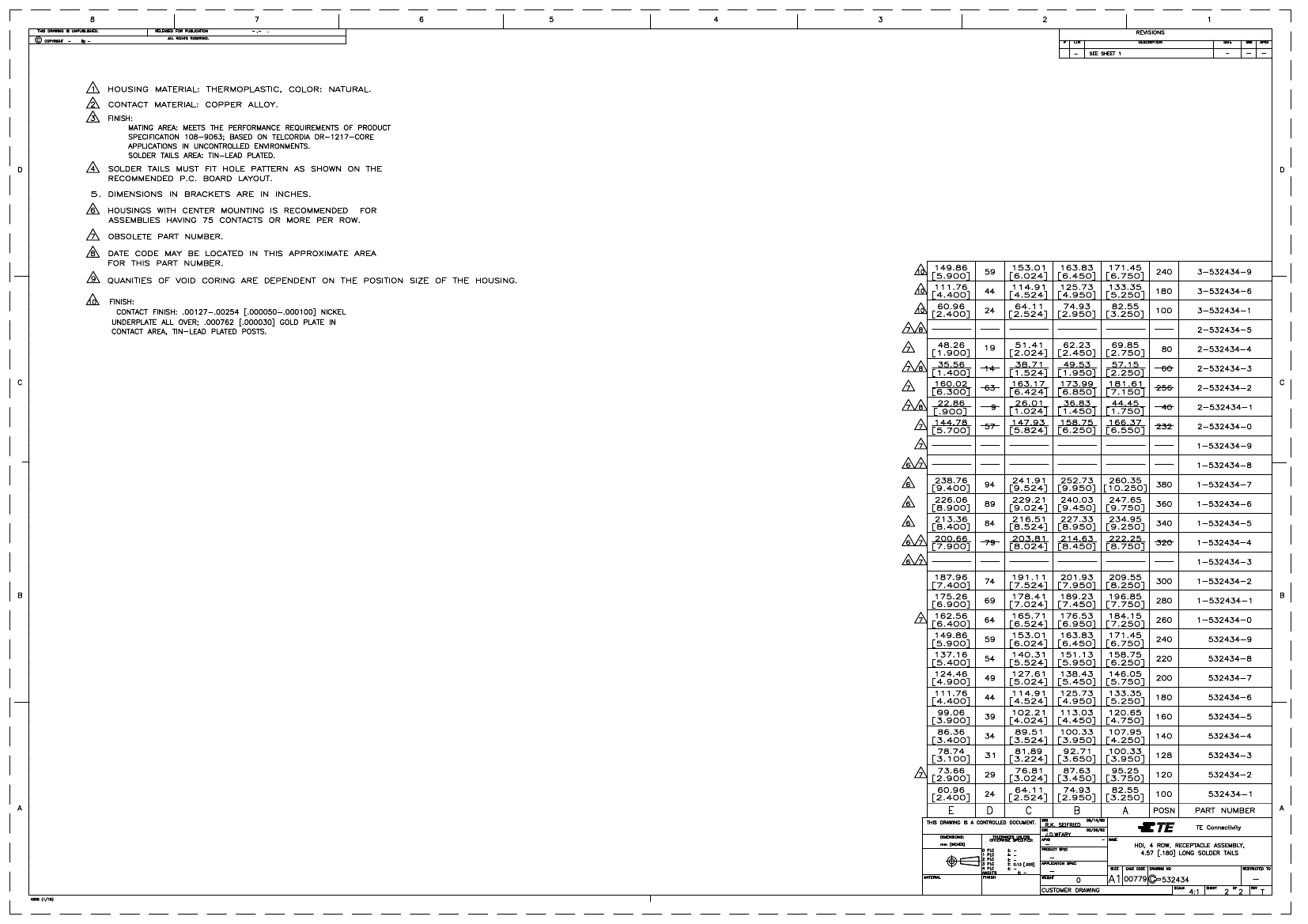

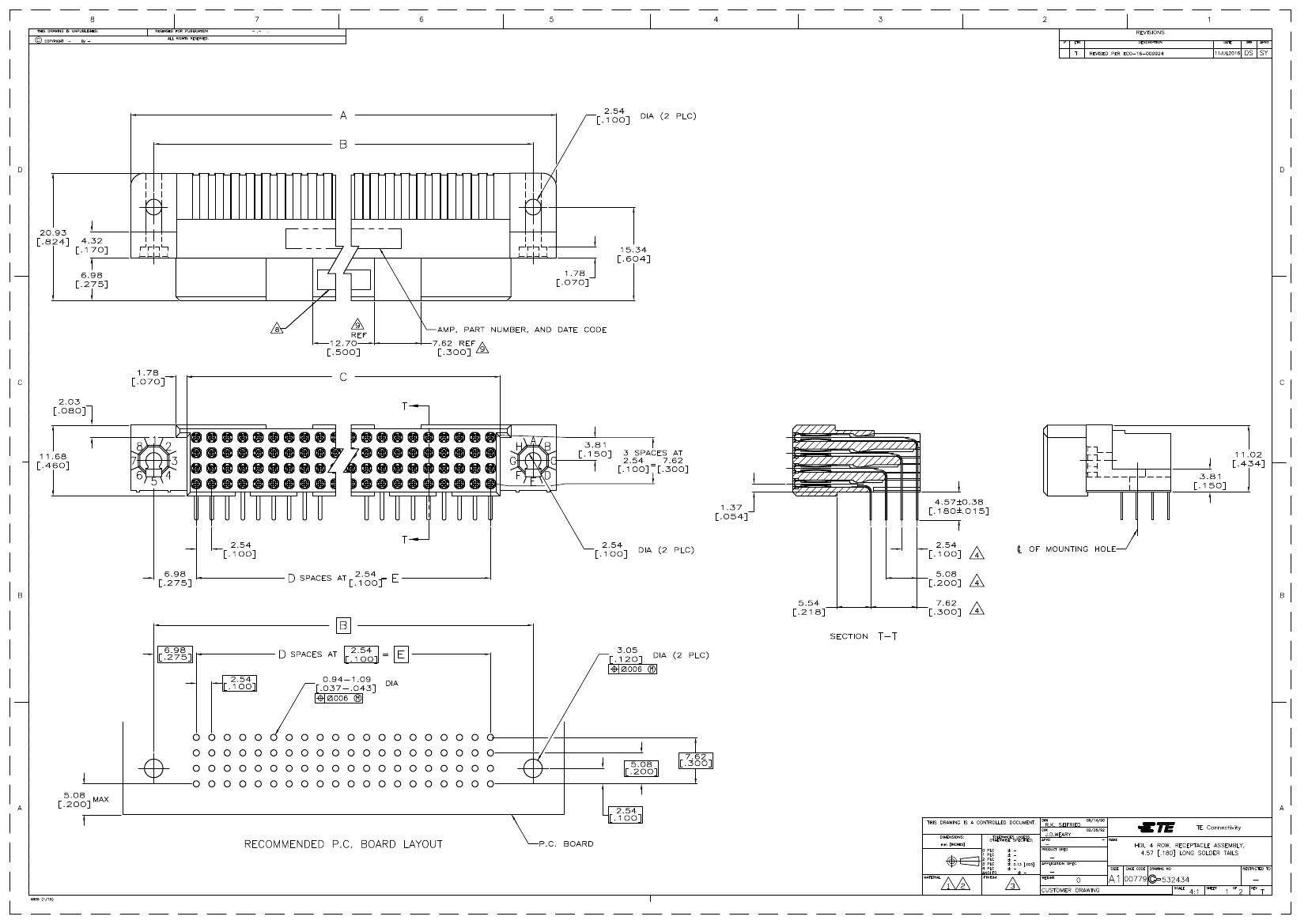

532434-1.pdf
Standard Package	56
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Receptacle, Female Sockets
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	100
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	-
Features	Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-

Preview

Download Datasheet

View All

532434-1 Related Products

	532434-1	532434-5	532434-6	532434-9	1-532434-1	1-532434-2	532434-8	532434-7
Description	conn rcpt 100POS 4row .100 R/A	conn rcpt 160pos 4row .100 R/A	conn rcpt 180pos 4row .100 R/A	conn rcpt 240pos 4row .100 R/A	conn rcpt 280pos 4row .100 R/A	conn rcpt 300pos 4row .100 R/A	conn rcpt 220pos 4row .100 R/A	conn recept rang 200pos gold pcb
Standard Package	56	224	224	168	168	112	168	4
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Connector Style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Number of Positions	100	160	180	240	280	300	220	200
Number of Positions Loaded	All	All	All	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4	4	4	4	4	4	4
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Features	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
