532448-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 532448-8

532448-8: Descriptionhdi pin assy 4 row 220 pos; CategoryThe connector; File Size211KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

532448-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	532448-8	-	-	View	Buy Now

532448-8 Overview

hdi pin assy 4 row 220 pos

532448-8 Parametric

Parameter Name	Attribute value
Datasheets
532448
RoHS Informati
532448-8 Statement of Compliance
3D Model
532448-8.pdf
Standard Package	1,050
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	220
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-

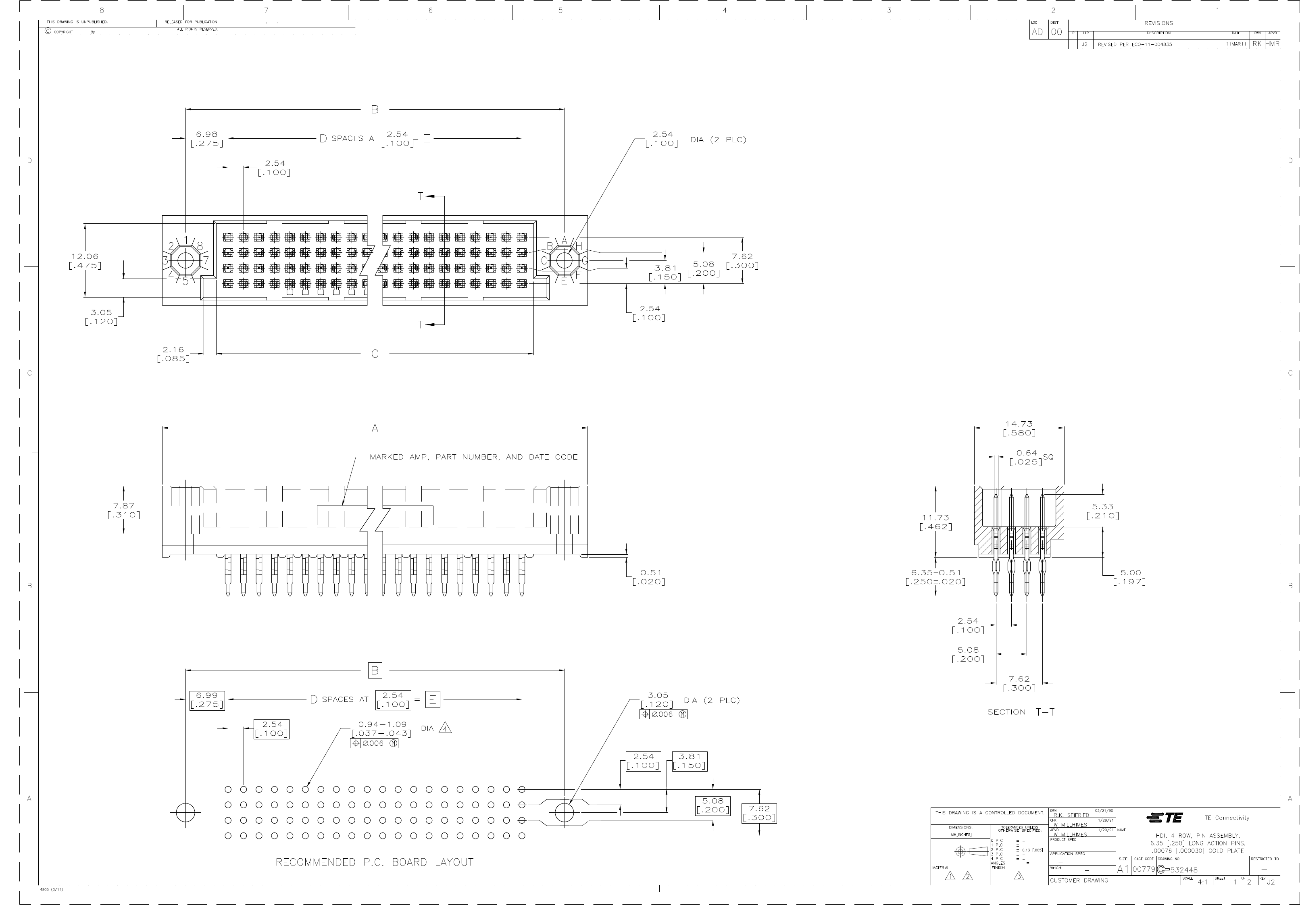

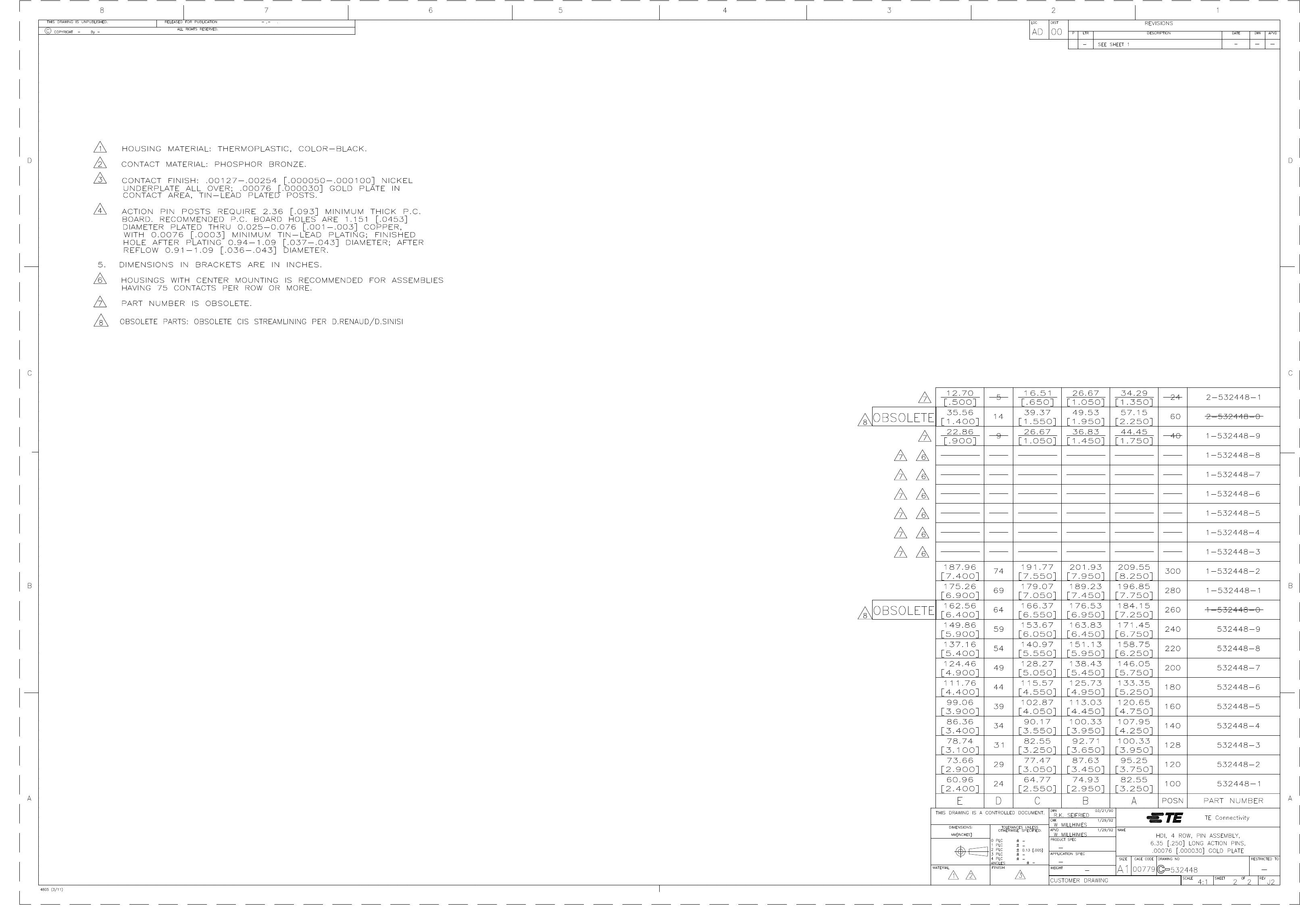

Preview

Download Datasheet

View All

532448-8 Related Products

	532448-8	532448-6	1-532448-1	1-532448-2	532448-7	1-532448-0	532448-5	532448-2
Description	hdi pin assy 4 row 220 pos	hdi pin assy 4 row 180 pos	hdi pin assy 4 row 280 pos	hdi pin assy 4 row 300 pos	hdi pin assy 4 row 200 pos	conn plug hdi 260pos 4row T/H	conn plug vert 160 pos gold pcb	conn plug 120pos 4row .100 vert
Standard Package	1,050	140	105	140	280	3	4	2,100
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Number of Positions	220	180	280	300	200	260	160	120
Number of Positions Loaded	All	All	All	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4	4	4	4	4	4	4
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Features	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide	Mating Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black	Black	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
