101-61-10-249XX-Q11 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 101-61-10-249XX-Q11

101-61-10-249XX-Q11: DescriptionBasic/quick action/limit switch spdt 10.1A button; CategoryTopical application Mechanical and electrical/engineering/automation; File Size63KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric View All

101-61-10-249XX-Q11 Overview

Basic/quick action/limit switch spdt 10.1A button

101-61-10-249XX-Q11 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Basic/Snap Action/Limit Switch
RoHS	no
Contact form	SPDT
Contact rating	10.1 Amps at 125 Volts, 250 Volts
Actuator	Bu
work force	249 g
Termination type	Quick Connec
type	Sub-Miniature Snap-Action Switches

Preview

Download Datasheet

View All

Last Update:

5-5-05

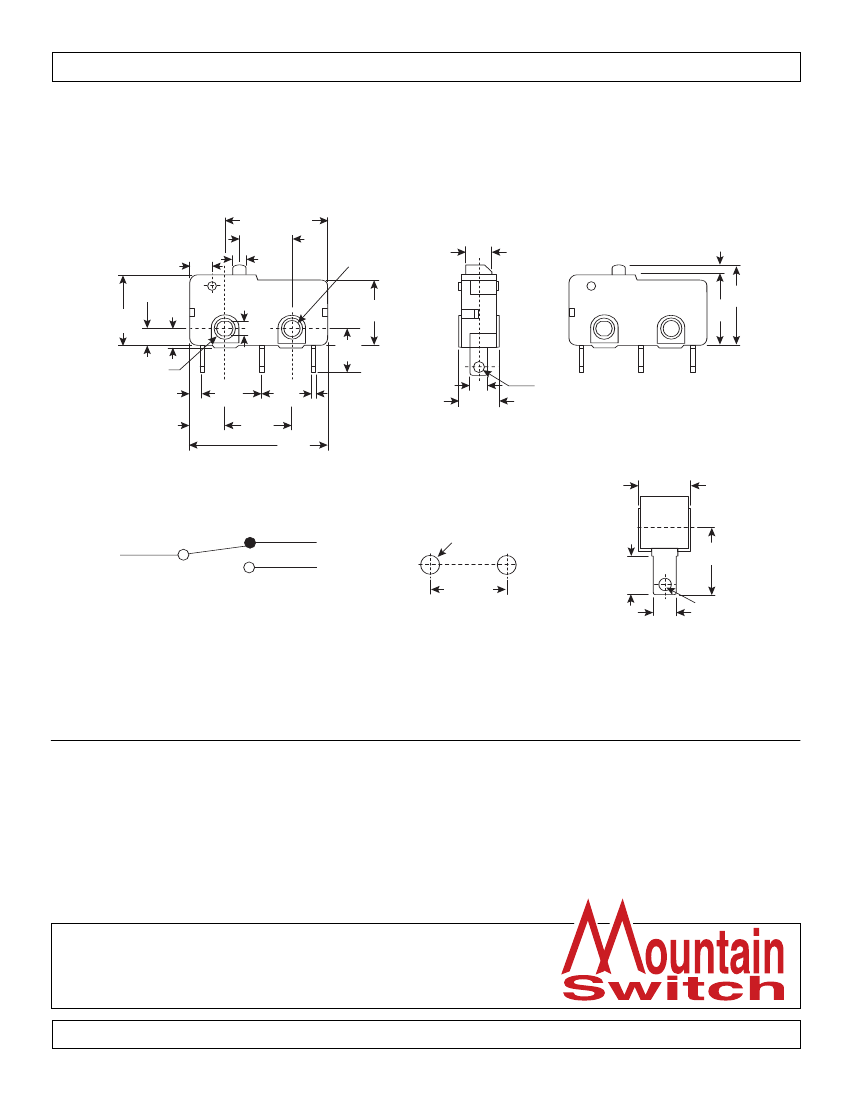

Dimensions: mm (In.)

Ref. #:

MS-100047

14.7 (.578)

3.2

(.126)

2.5

(.098) 2.9

(.114)

10.2

(.401)

ø2.5

(ø.098)

1.6

(.062)

7.5 (.295)

(.079)

2.4

(.09)

ø2.4±.10

(ø.09±.004)

3.55 (.14)

9.5

(.374)

6.4

(.252)

3.2

(.126)

6.4

(.252)

ø1.6

(ø.06)

8.8

(.346)

5.1

(.20)

7.3

(.287) .60

(.023)

9.5

(.374)

19.8

(.779)

6.4 (.252)

2-ø2.4 (ø.09)

mounting holes

or M2.3 screw holes

7.1

(279)

3.2

(.126)

Contact Configuration

Mounting Holes

10.6

(.417)

N.C.

COM.

N.O.

9.5±.10

(.374±.004)

ø1.2

(ø.047)

Holes

Quick Connect Terminal

Mechanical Specifications:

•

Operating Frequency: 120 operations/min

•

Life: 10,000,000 operation min.

Electrical Specifications:

•

Operating Frequency: 10~30 operations/min

•

Life: 6,000~100,000 operations

•

Rating: 10.1A/125VAC/250VAC

•

Contact Resistance: 30mΩ max.

•

Insulation Resistance: 100mΩ min. @ 500VDC

•

Dielectric Strength: 1,000VAC RMS (50-60HZ)

Operating

Characteristics:

•

OF Max. (g): 249

•

Op (mm): 11.4 ±0.3

•

PT Max. (mm): 1.1

•

OT Min. (mm): 0.4

•

MD Max. (mm): 0.2

•

FP Max. (mm): 12.2

•

RF Min. (g): 50

Sub-Miniature Snap Switch

SNS61-10-249XX-Q11

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
