Last Update:
6-9-05
Dimensions: mm (In.)
Ref. #:
MS-100029
5.80
(.228)
10.30
(.405)
22.20
(.874)
20.20
(.795)
10.30
(.405)
8.20
(.322)
.80
(.031)
NO
NC
4
(.157)
15.90
(.626)

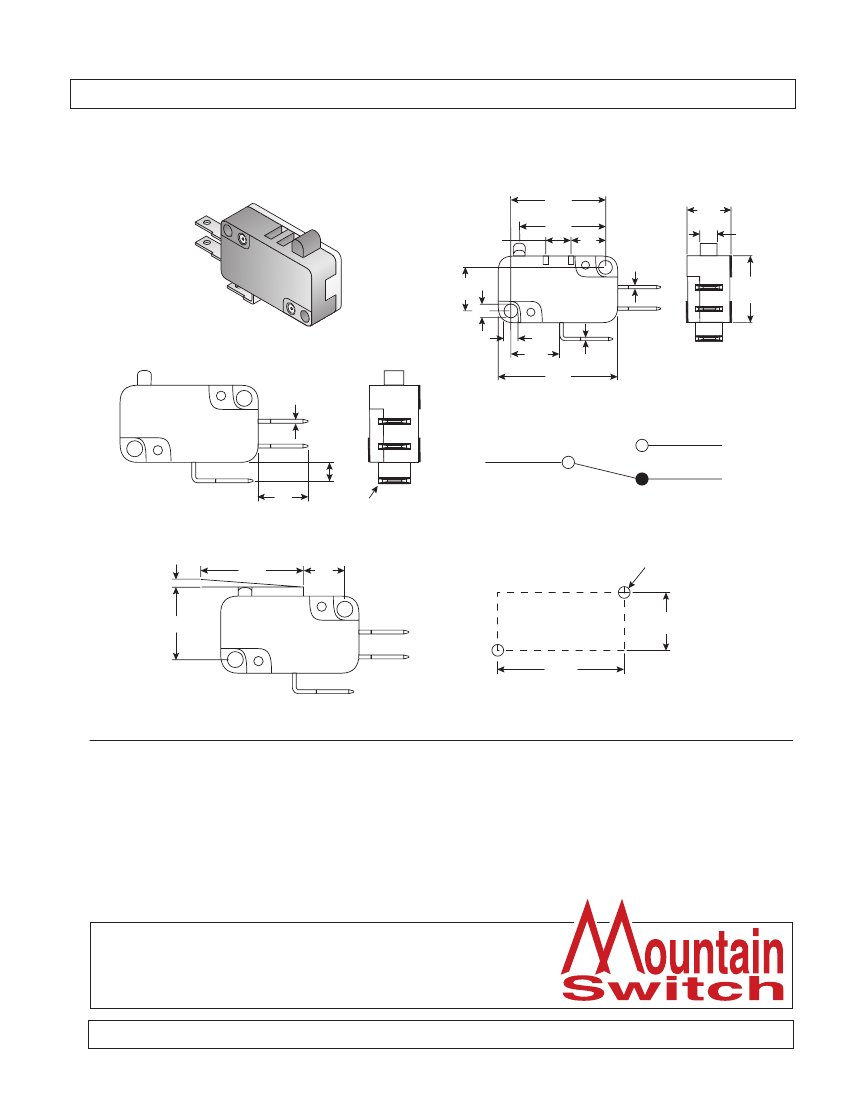

TERMINAL TYPES
Quick connect terminal 187 series (D)
.80
(.031)
NO
NC
3.80
(.149)
COM
10
(.393)
3-#187
Quick Connect Terminal
3.10
(.122)
3.40
(.133)
11.30
.80
(.444)
(.031)
27.80
(1.09)
COM
CONTACT CONFIGURATION
N.O.
COM.
N.C.
OPERATING CHARACTERISTICS
27.50
(1.08)
8.20
(.322)
MOUNTING HOLES
2-ø3.10 (ø.122) mounting holes
or M3 screw holes.
PT
OP
10.30
(.405)
22.20
(.874)
Mechanical Specifications:
•
Operating Frequency: 300 operations/min.
•
Mechanical Life : 5,000,000 operations(Min.)
Electrical Specifications:
•
Insulation Resistance (at 500VDC): 100MΩ Min.
•
Dielectric Strength: 1,000VAC RMS(50-60HZ)
•
Contact Resistance (Initial): 30mΩ Max.
•
Operating Frequency: 10-30 operations/min.
•
Operating Speed: 0.1mm to 1m/sec.
•
Electrial Life: 6,000~100,000 operations(Min.)
•
Rating: 10.1A/125/250 VAC
Operating Characteristics:
•
OF (g) max: 75
•
OP (mm): 15.0±1.5
•
PT max: 4.80mm
•
OT min (mm): 1.0
•
MD max (mm): 2.70
Miniature Snap Switch
SNS73-10-075ST-Q21
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
