2-87655-4 datasheet, PDF - EEWORLD Datasheet

2-87655-4: Descriptionconn header 24pos R/A .156 tin; CategoryThe connector; File Size184KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

2-87655-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-87655-4	-	-	View	Buy Now

conn header 24pos R/A .156 tin

Parameter Name	Attribute value

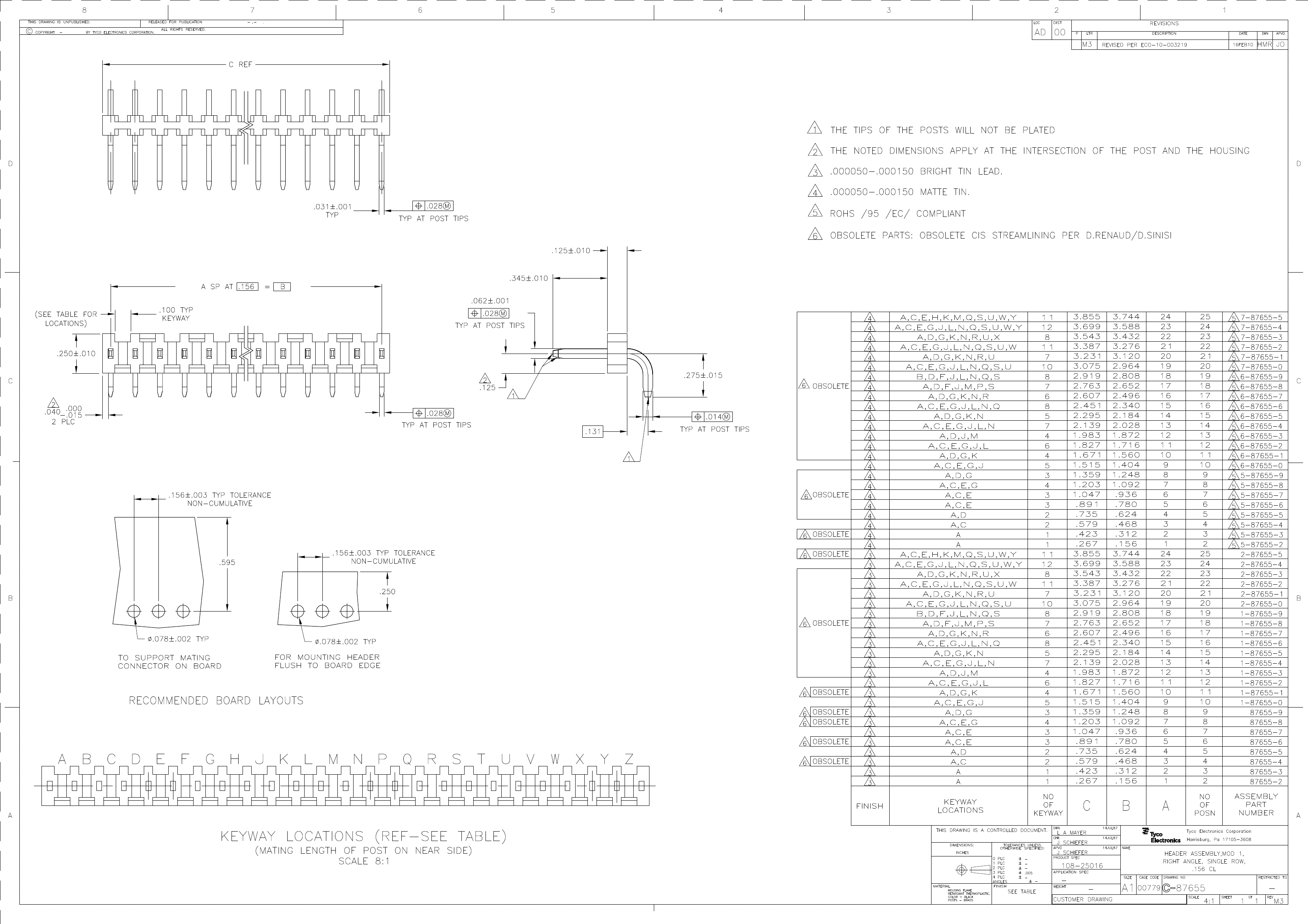

Datasheets
87655
RoHS Informati
2-87655-4 Statement of Compliance
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	24
Number of Positions Loaded	All
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.345" (8.76mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Tin-Lead
Contact Finish Thickness	50µin (1.27µm)
Col	Black

	2-87655-4	5-87655-4	87655-2	87655-3	2-87655-5
Description	conn header 24pos R/A .156 tin	conn header 4pos R/A .156 tin	conn header 2pos R/A tin	conn header 3pos R/A tin	conn header 25pos R/A .156 tin
Standard Package	500	504	504	248	25
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded
Number of Positions	24	4	2	3	25
Number of Positions Loaded	All	All	All	All	All
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1	1	1	1
Contact Mating Length	0.345" (8.76mm)	0.345" (8.76mm)	0.345" (8.76mm)	0.345" (8.76mm)	0.345" (8.76mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde
Contact Finish	Tin-Lead	Ti	Tin-Lead	Tin-Lead	Tin-Lead
Contact Finish Thickness	50µin (1.27µm)	-	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)
Col	Black	Black	Black	Black	Black
