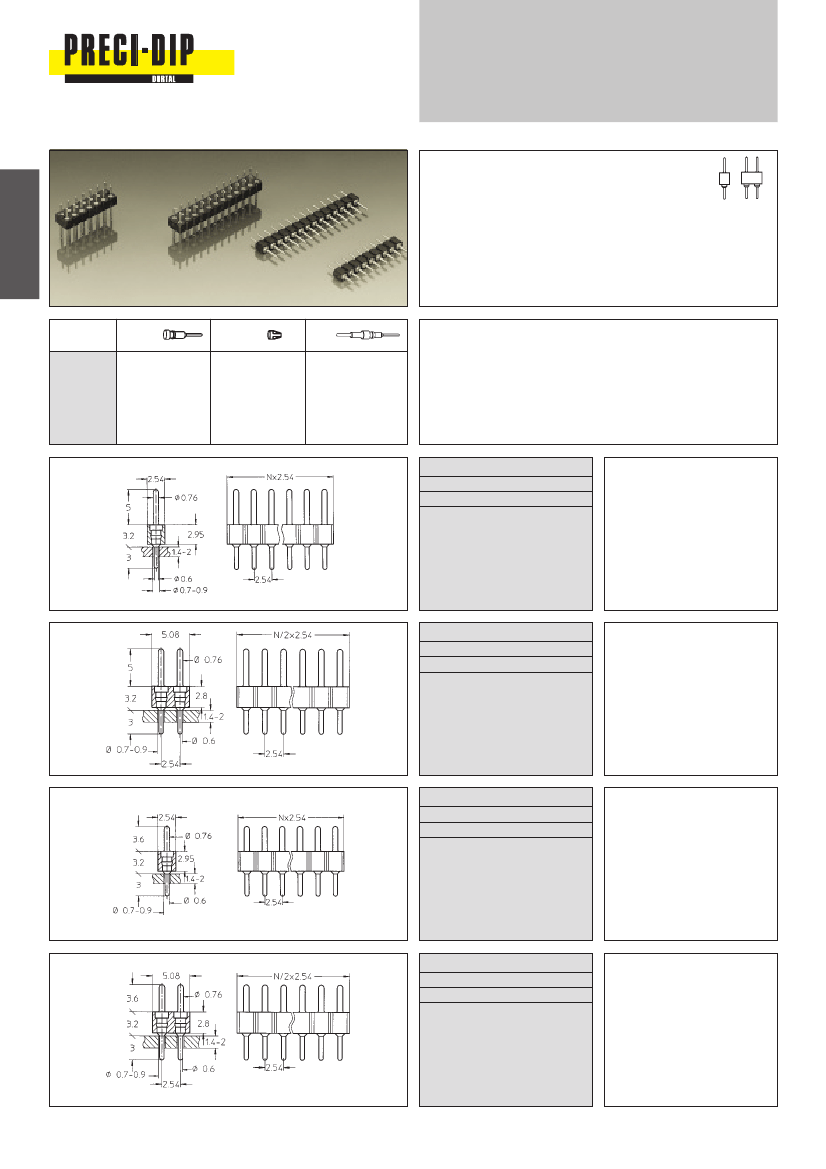

Series 800
30
PCB connectors 2.54 mm
Single row / double row
Solder tail
Pin connectors, solder tail
Screw-machined pins
∅
0.76 mm
For corresponding receptacles see pages 22 to 29
New:
Pin connectors with selective plated precision screw machined
pin, plating code Z1.
Connecting side 1: gold plated
soldering/PCB side 2: tin plated
Platings
10
90
Z1
Sleeve
Clip
Pin
0.25
µm
Au
5
µm
Sn Pb
1: 0.25
µm
Au
2: 5
µm
Sn Pb
Ordering information
Replace
xx
with the number of poles, e.g. 802-10-0xx-10-001
for a double row version with 8 pins per row becomes:
802-10-016-10-001
800-10-0xx-10-001
800-90-0xx-10-001
800-Z1-0xx-10-001
Straight pin connector: solder
tail, single row
Availability from: 1 to 64 contacts
Standard number of contacts 5,
6, 8, 10, 14, 16, 20, 21, 25, 30,
32, 48, 56, 60, 64
Option
On request with clinched
(right/left) solder tails
802-10-0xx-10-001
802-90-0xx-10-001
802-Z1-0xx-10-001
Straight pin connector: solder
tail, double row
Availability from: 4 to 72 contacts
Standard number of contacts 40,
44, 56, 64, 72
800-10-0xx-10-002
800-90-0xx-10-002
800-Z1-0xx-10-002
Straight pin connector: solder
tail, single row, short pin
Availability from: 1 to 64 contacts
Standard number of contacts 5,
6, 8, 10, 14, 16, 20, 21, 25, 30,
32, 48, 56, 60, 64
Option
On request with clinched
(right/left) solder tails
802-10-0xx-10-002
802-90-0xx-10-002
802-Z1-0xx-10-002
Straight pin connector: solder
tail, double row, short pin
Availability from: 4 to 72 contacts
Standard number of contacts 40,
44, 56, 64, 72
