101-1201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 101-1201

101-1201: DescriptionBasic/quick action/limit switch blk std lvr qkter; CategoryTopical application Mechanical and electrical/engineering/automation; File Size63KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric Compare View All

101-1201 Overview

Basic/quick action/limit switch blk std lvr qkter

101-1201 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
RoHS	no
Contact form	SPDT
Contact rating	5 Amps at 125 Volts
Actuator	Simulated Roller Leve
work force	28 g
Termination type	Lug
type	Miniature Snap Switch

Preview

Download Datasheet

View All

Last Update:

4-13-05

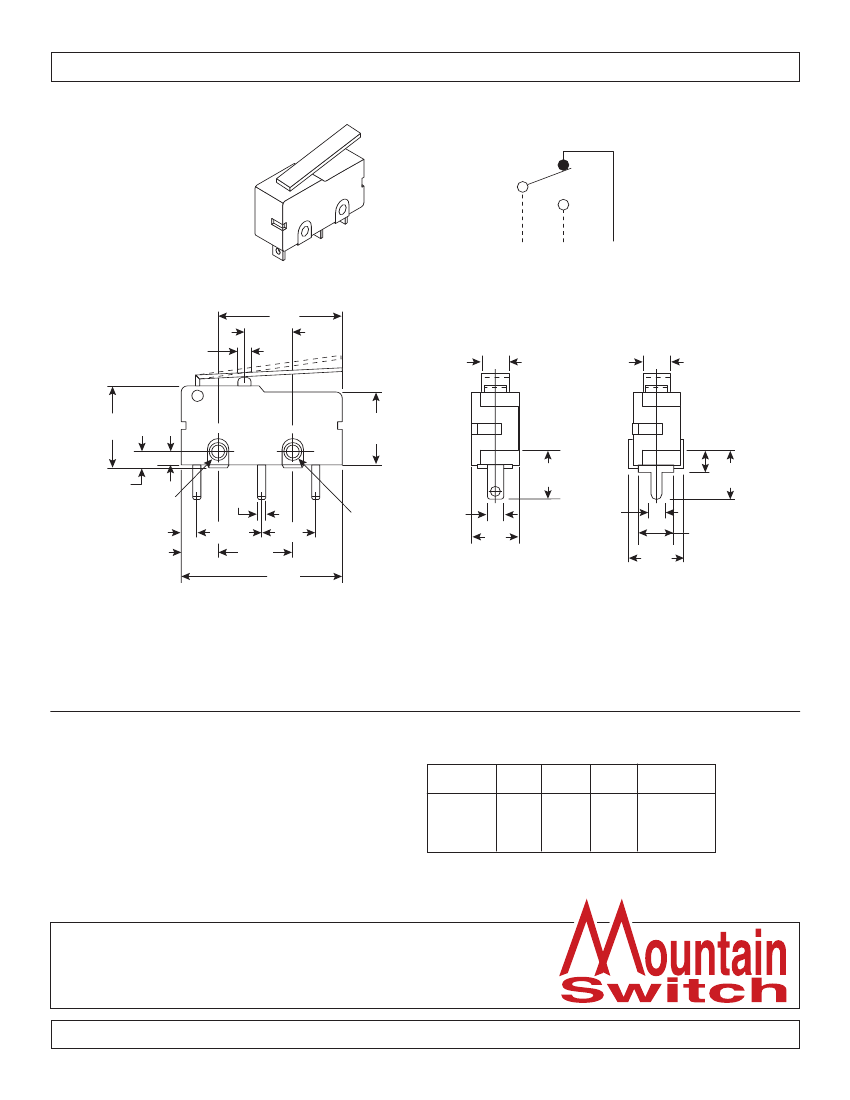

Dimensions:mm (In.)

Ref. #:

MS-100118

COM

2.01

(.079)

7.49

(.295)

3.99

(.157)

3.99

(.157)

10.59

(.417)

2.49

(.098)

.61

(.024)

8.79

(.346)

7.29

(.287)

9.5

(.374)

6.4

(.252)

2.36±.076

(ø.093±.003)

3.2

(.126)

6.4

(.252)

Solder Lug

* PC Pin

1.19

(.047)

6.4

(.252)

3.5

(.138)

7.01

(.276)

2.9

(.114)

2.49

(ø.098)

1.6

(.063)

5.1

(.201)

9.5

(.374)

19.81

(.780)

3.2

(.126)

Electrical Specifications:

•

Rating: 5A/125VAC

•

Insulation resistance: 100MΩ > 500VDC

•

Dielectric strength: 500VAC for 1 minute

•

Contact resistance: <50mΩ

•

Life cycling (full load): 200,000 cycles

Mechanical Specifications:

•

Switching timing: non-shorting

•

Life cycling (no load): 1,000,000 cycles

•

Operating temperature: -25°C ~ +80°C

Mouser

Stock No.

101-1201

101-1202

101-1203

101-1206

(In.)

.571

.650

.890

1.69

Travel

(In.)

.079

.087

.126

.224

Oper.

Force

28g

25g

18g

10g

Terminal

Type

Solder Lug

PC Pin

Miniature Snap Switches

101-1201, 101-1202, 101-1203, 101-1206

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
