103-0002-EVX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 103-0002-EVX

103-0002-EVX: Descriptiontoggle switch illuminated blu spst; CategoryTopical application Mechanical and electrical/engineering/automation; File Size116KB，1 Pages; ManufacturerMountain Switch; Environmental Compliance

Download Datasheet Parametric Compare View All

103-0002-EVX Overview

toggle switch illuminated blu spst

103-0002-EVX Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	yes
Contact form	SPST
Contact current rating	20 Amps at 12 Volts
Termination type	Solder Lug
Installation style	Panel
Terminal seal	Epoxy
Actuator	Lever, Standard
lighting color	Blue

Preview

Download Datasheet

View All

Last Update:

9-18-06

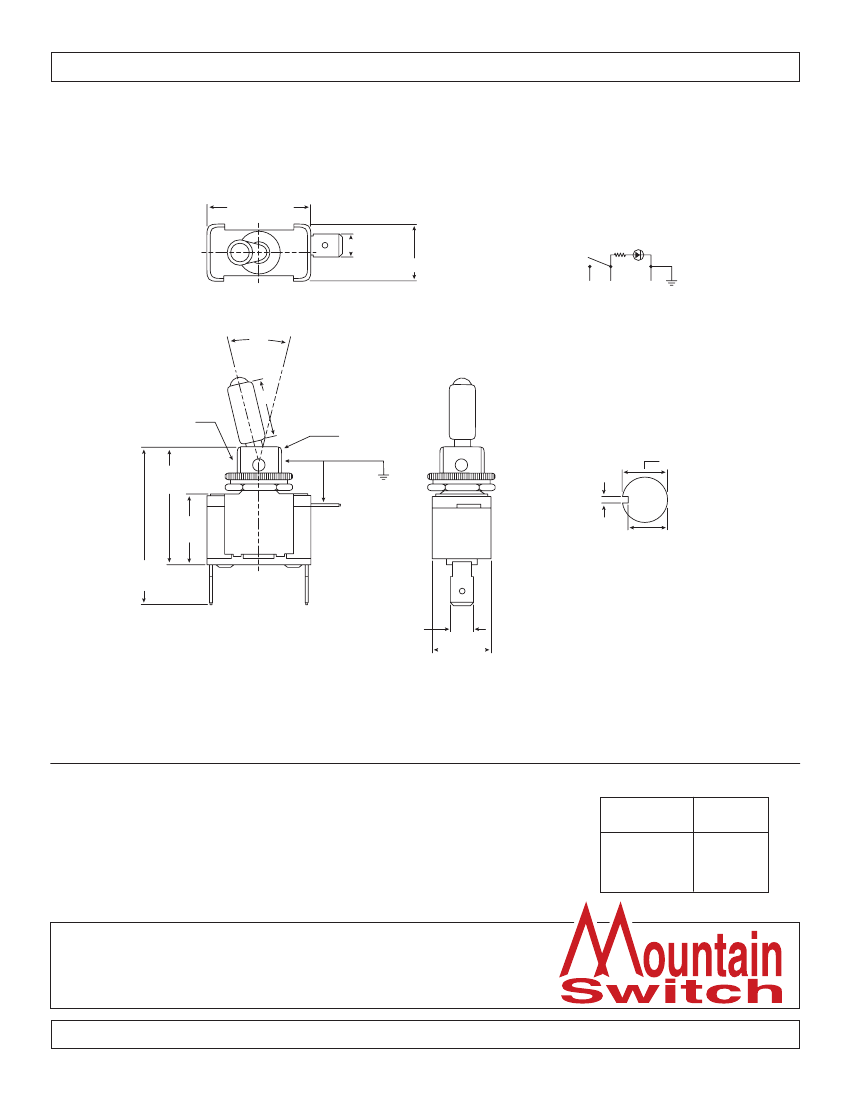

Dimensions: mm (In)

Ref. #:

MS-101083

28.6 (1.12)

6.3±.10

(.248±.004)

16 (.63)

ground

Circuit Structure

28°

20 (.787)

Keyway

M12*.75

ø12.2±.20

(ø.48±.008)

(1.26)

19.2

(.756)

43.2

(1.70)

ground

1.5±.10

(.059±.004)

11±.10

(.433±.004)

Mount Hole

6.35±.10

(.25±.004)

16±.5

(.63±.02)

Electrical Specifications:

•

Rating: 20A/12VDC

•

Contact Resistance: 50mΩ Max.

•

Insulation Resistance: 500VDC 100MΩ Min.

•

Dielectric Strenght: 1500VAC for 1 Minute

Mechanical Specifications:

•

Circuit: 3P SPST On-Off

Note:

•

RoHS Compliant by Exemption

MOUSER

STOCK NO.

103-0001-EVX

103-0002-EVX

103-0003-EVX

103-0004-EVX

LED Color

White

Blue

Green

Red

Illuminated (LED) Toggle Switches

103-0001-EVX, 103-0002-EVX, 103-0003-EVX, 103-0004-EVX

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

103-0002-EVX Related Products

	103-0002-EVX	103-0001-EVX	103-0004-EVX
Description	toggle switch illuminated blu spst	toggle switch illuminated Wh spst	toggle switchilluminated red spst
Maker	Mountain Switch	Mountain Switch	Mountain Switch
Product Category	Toggle Switches	Toggle Switches	Toggle Switches
RoHS	yes	yes	yes
Contact form	SPST	SPST	SPST
Contact current rating	20 Amps at 12 Volts	20 Amps at 12 Volts	20 Amps at 12 Volts
Termination type	Solder Lug	Solder Lug	Solder Lug
Installation style	Panel	Panel	Panel
Terminal seal	Epoxy	Epoxy	Epoxy
Actuator	Lever, Standard	Lever, Standard	Lever, Standard
lighting color	Blue	White	Red
