103-0007-EVX: DescriptionToggle switch illum red/Cl spst; CategoryTopical application Mechanical and electrical/engineering/automation; File Size122KB，1 Pages; ManufacturerMountain Switch; Environmental Compliance

Download Datasheet Parametric Compare View All

103-0007-EVX Overview

Toggle switch illum red/Cl spst

103-0007-EVX Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	yes
Contact form	SPST
switch function	ON - OFF
Contact current rating	30 Amps at 12 Volts
Termination type	Solder Lug
Installation style	Panel
Terminal seal	Epoxy
Actuator	Lever, Standard
lighting color	Red, Cle

Preview

Download Datasheet

View All

Last Update:

9-18-06

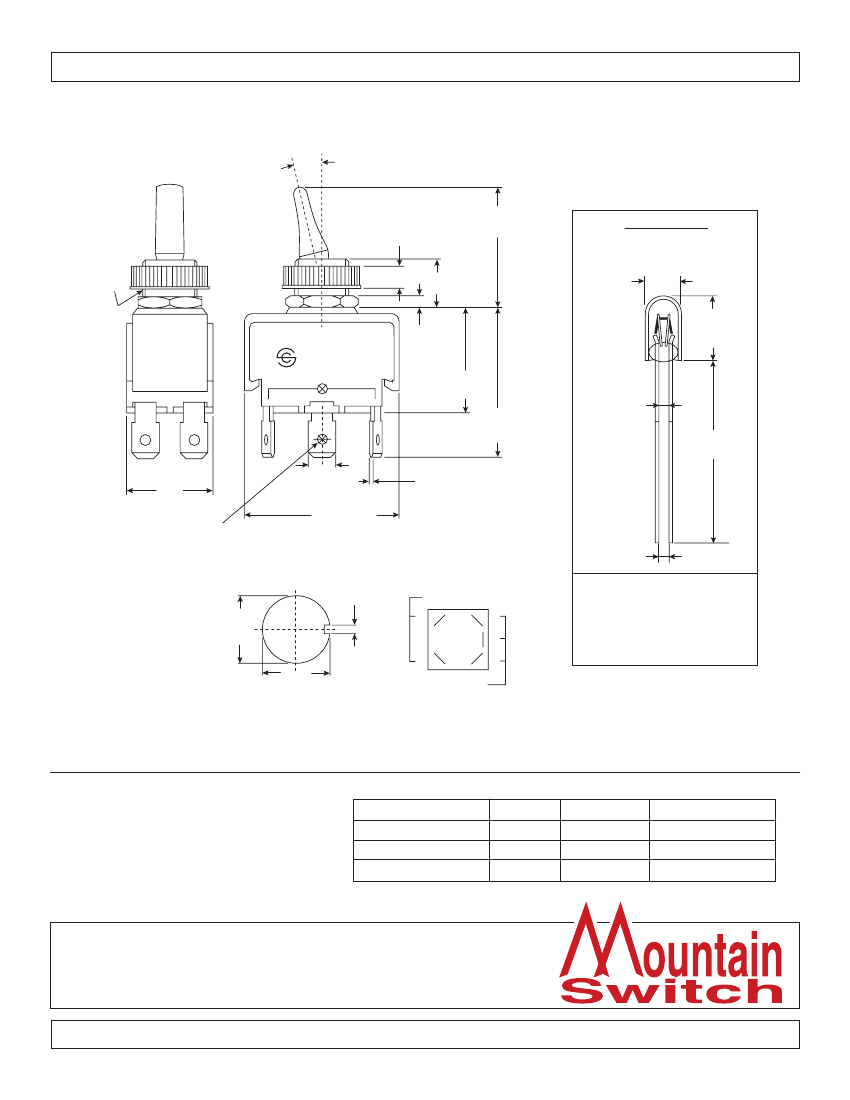

Dimensions: mm (In)

Ref. #:

MS-101084

13°

5.5±.50

(.217±.02)

27.±1.5

(1.66±.059)

Backlight Lamp

4±.1

(.157±.004)

M12x1.0

10.5±.50

(.413±.02)

R13 - 403

12V 30A

2.5±.50

(.098±.02)

23.4±1

(.421±.039)

.40 (.016)

33.2±1

(1.30±.039)

9.8±.2

(.386±.008)

25

(.984)

19±.50

(.748±.02)

ø2.2±.20

(ø.087±.008)

6.35±.10

(.25±.004)

34.4±.50

(1.354±.02)

.80±.10

(.03±.004)

1 (.04)

Mount Hole

1.5±.10

(.059±.004)

Illuminated

Contacts

6

1

2

4

11±.10

(.433±.004)

Switch

Contacts

3

ø12±.20

(ø.472±.008)

Electrical Specifications:

•

Voltage: 80mA / 12V

•

Current: 80mA ± -10%

•

Life: 15,000 Hrs.

•

Intensity: 0.2CP ± -25%

Electrical Specifications:

•

Rating: 30A / 12V DC

•

Contact Resistance: 50m Ω max.

•

Insulation Resistance: 500 DC 100M Ω min.

•

Dielectric Strength: 1500V AC 1 minute

Note:

•

RoHS Compliant by Exemption

Mouser Stock No.

Type

103-0005-EVX

5P SPDT

103-0006-EVX

5P SPDT

103-0007-EVX

4P SPST

Circuit

On-Off-On

On-On

On-Off

Illuminated Color

Red/Clear/Green

Red/Green

Red/Clear

Illuminated Toggle Switches

103-0005-EVX, 103-0006-EVX, 103-0007-EVX

www.mouser.com

1-800-346-6873

Available from Mouser Electronics

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

103-0007-EVX Related Products

	103-0007-EVX	103-0005-EVX
Description	Toggle switch illum red/Cl spst	toggle switch illum red/Cl/Gr spdt
Maker	Mountain Switch	Mountain Switch
Product Category	Toggle Switches	Toggle Switches
RoHS	yes	yes
Contact form	SPST	SPDT
switch function	ON - OFF	ON - OFF - ON
Contact current rating	30 Amps at 12 Volts	30 Amps at 12 Volts
Termination type	Solder Lug	Solder Lug
Installation style	Panel	Panel
Terminal seal	Epoxy	Epoxy
Actuator	Lever, Standard	Lever, Standard
lighting color	Red, Cle	Red, Clear, Gree
