Part Number

Search

103-0017-EVX

Description
toggle switch toggle spdt
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size118KB,1 Pages
ManufacturerMountain Switch
Environmental Compliance
Download Datasheet Parametric View All

103-0017-EVX Overview

toggle switch toggle spdt

103-0017-EVX Parametric

Parameter NameAttribute value
MakerMountain Switch
Product CategoryToggle Switches
RoHSyes
Contact formSPDT
switch functionON - ON
Contact current rating6 Amps at 125 Volts
Termination typeSolder Lug
Installation stylePanel
Terminal sealEpoxy
ActuatorLever, Standard

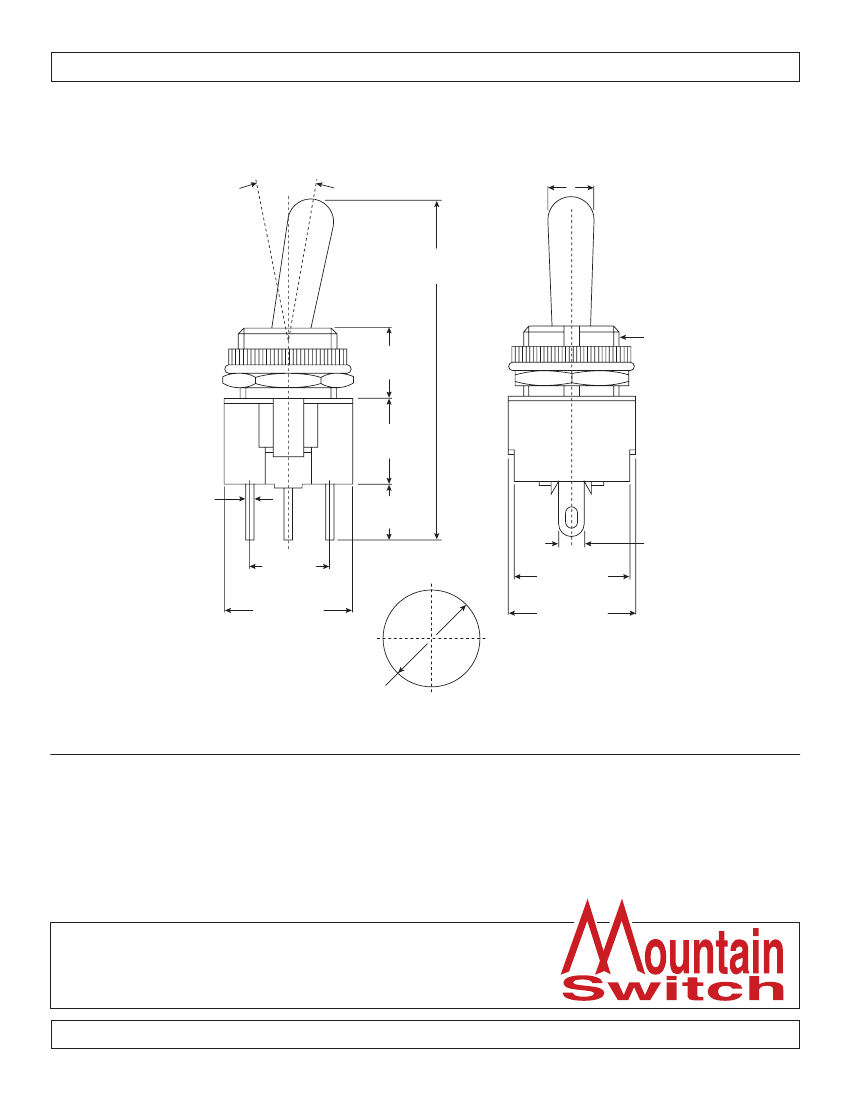

Last Update:
9-18-06
Dimensions: mm (In.)
Ref. #:
MS-101092
20˚
ø5.8±.2
(ø.228±.008)
43.2±1
(1.70±.039)
M12x0.75
9±.3
(.354±.012)
11±.3
(.433±.012)
.9±.10
(.035±.004)
7.2±.5
(.283±.02)
3.4±.20
(.134±.008)
Mount Hole
14.7±.3
(.578±.012)
16.2±.3
(.638±.012)
10±.5
(.394±.02)
16±.2
(.63±.008)
29.46±.5
(1.16±.02)
Electrical Specifications:
Rating: 3A/250V, 6A/125VAC
Contact Resistance: 50m Ω max.
Insulation Resistance: 500V DC 100M Ω min.
Dielectric Strength: 1000V AC 1 minute
Mechanical Specifications:
Circuit: 3P SPDT ON-ON
Note:
RoHS Compliant by Exemption
Toggle Switch
103-0017-EVX
www.mouser.com
1-800-346-6873
Available from Mouser Electronics
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
