50543-7925 Overview

Terminal r100-16 r100-16

50543-7925 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial number50543
Terminal and terminal strip typesRING TERMINAL
Conductor cross section117.2 mm2
Base Number Matches1

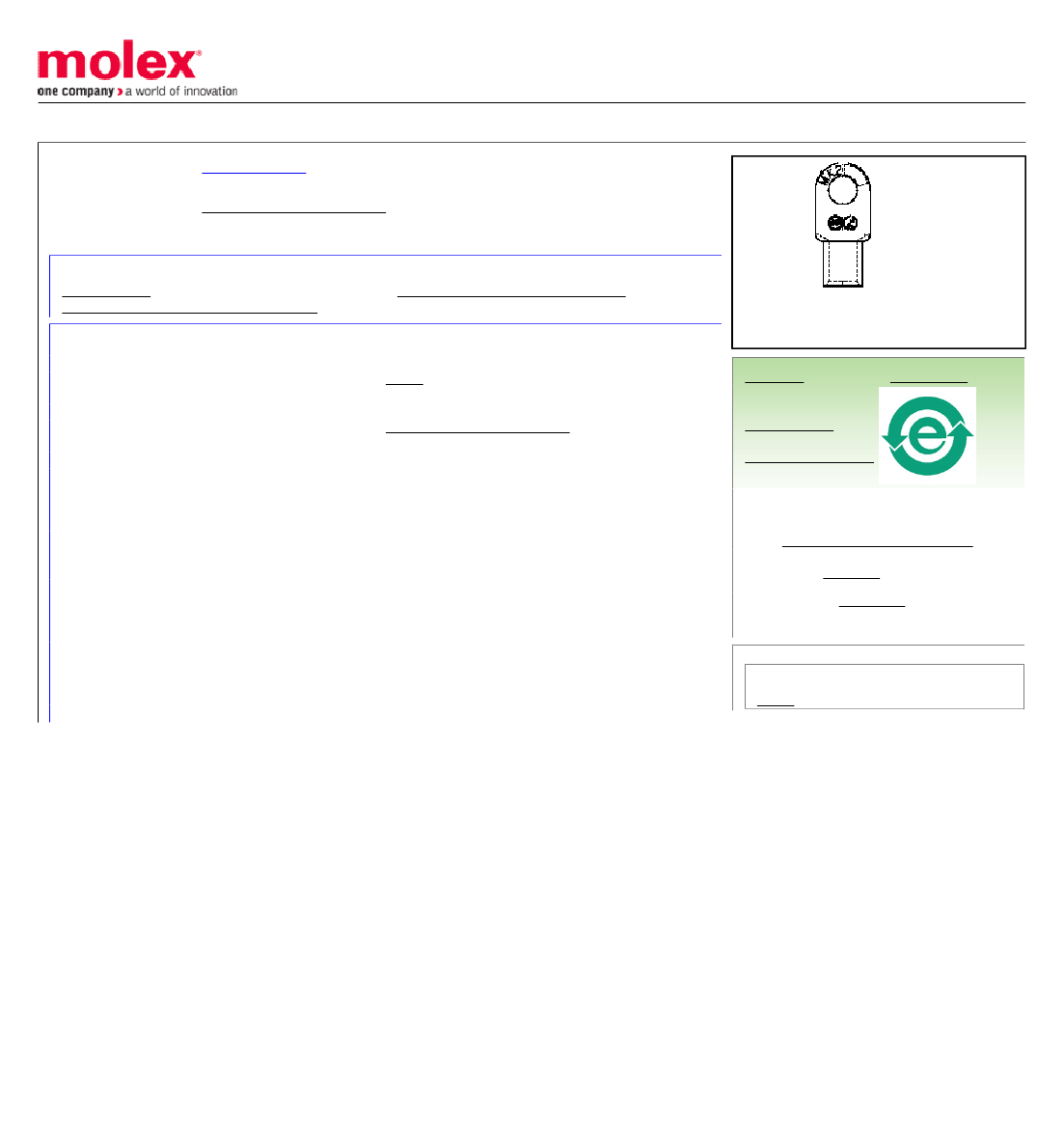

This document was generated on 11/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0505437925
Contact Molex
ring_tongue__spade_terminals
Ring Tongue Terminal for 4/0 AWG, Closed Uninsulated Brazed Barrel, Stud Size
5/8" (M16), Oxygen-Free Copper, Length 69.00mm (2.717")
Documents:
Drawing (PDF)
Product Specification PS-50541-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Overview
Product Name
Type
Ring and Spade Terminals
50543
Yes
N/A
ring_tongue__spade_terminals
R (Ring)
Ring
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
5/8" (M16)
4/0
96.3 - 117.2
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Country of Origin
JP, KR
Search Parts in this Series
50543Series
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-50541-002
SD-50543-001
This document was generated on 11/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
