103-4024: DescriptionToggle switch dpdt ON-ON; CategoryTopical application Mechanical and electrical/engineering/automation; File Size64KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric View All

103-4024 Overview

Toggle switch dpdt ON-ON

103-4024 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	no
Contact form	DPDT
switch function	ON - NONE - ON
Contact current rating	6 Amps at 250 Volts
Termination type	Solder Lug
Installation style	Panel
Terminal seal	Epoxy
Contact plating	Silve
Actuator	Lever, Standard
Voltage ratingAC	125 Volts

Preview

Download Datasheet

View All

Last Update:

4-22-05

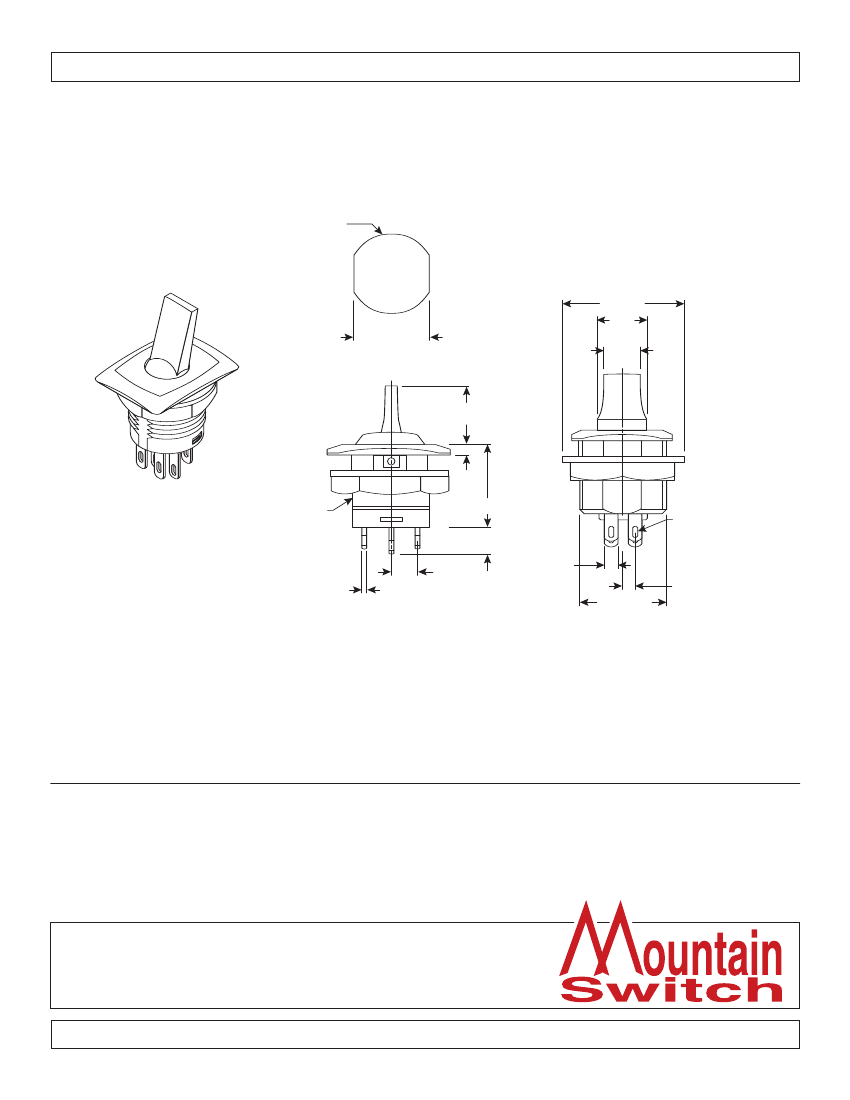

Dimensions: mm (In)

Ref. #:

MS-100152

ø18±.101

(ø.709±.004)

25.4 (1)

16.68±.101

(.657±.004)

Mounting Hole

11.6

(.457)

(.315)

13 (.512)

(.079)

M18 x 1.0mm

16.99 (.669)

5.31 (.209)

4.69

(.185)

2 (.079)

2.49 (.098)

16.51 (.65)

2 x .99

(.079 x .039)

.76 (.03)

Electrical Specifications:

•

Rating: 6A/250VAC

•

Contact resistance: 50mΩ max.

•

Insulation resistance: 500VDC 100MΩ min.

•

Dielectric strength: 1500VAC for 1 minute

Mechanical Specifications:

•

Type: 6P, DPDT

•

Circuit: On-On (103-4024), On-(On) (103-4025)

•

Operational life cycles: 100,000

Toggle Switches

103-4024, 103-4025

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
