1055-TA1360

Description
toggle switch dpdt 6 pin PC mnt
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size73KB,1 Pages
ManufacturerMountain Switch
Download Datasheet Parametric View All

1055-TA1360 Overview

toggle switch dpdt 6 pin PC mnt

1055-TA1360 Parametric

Parameter NameAttribute value
MakerMountain Switch
Product CategoryToggle Switches
RoHStransition period
Contact formDPDT
switch functionON - NONE - ON
Contact current rating6 Amps at 250 Volts
Termination typeSolder Pi
Installation stylePanel
Terminal sealEpoxy
ActuatorLever, Standard
Voltage ratingAC125 Volts
Last Update:
4-18-05

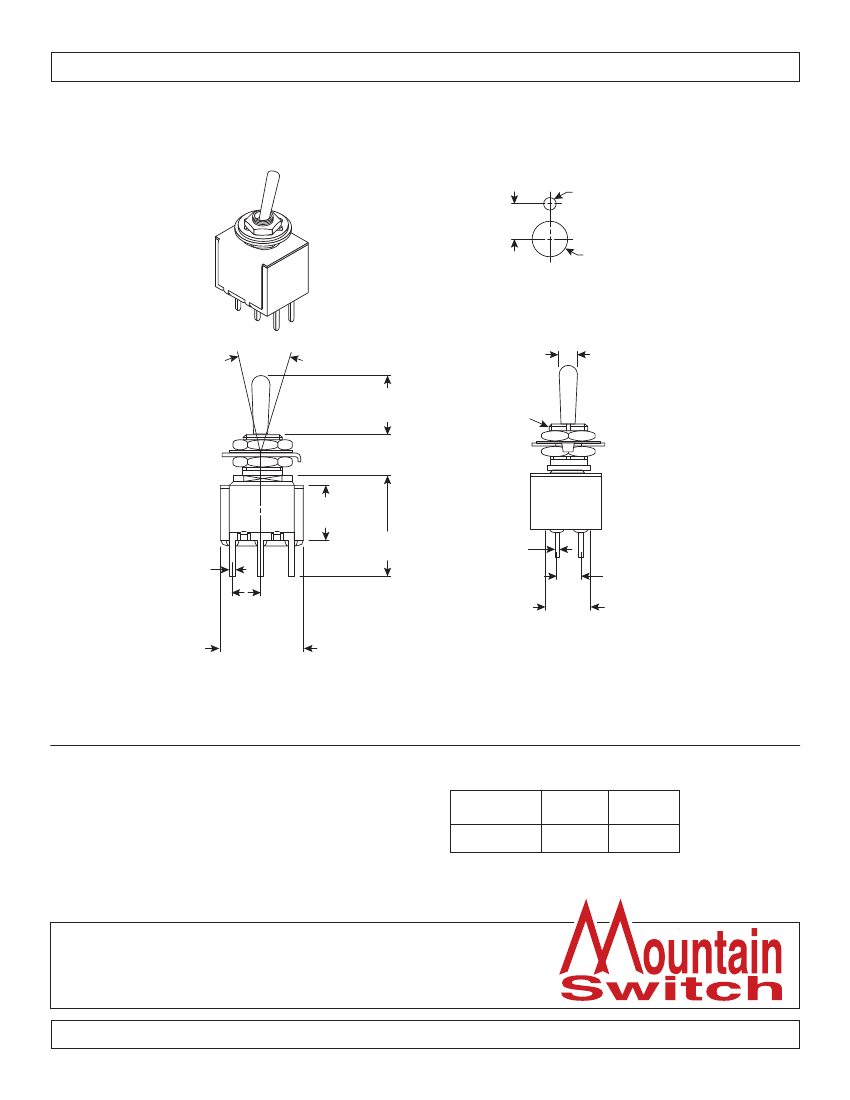

Dimensions: mm (In.)
Ref. #:
MS-100191
ø2.48
(ø.098)
6.30
(.248)
ø6.19
(ø.244)
Mounting Holes
2.80 ± .508
(.11 ± .02)
24° ± 6°
10.50 ± .99
(.413 ± .039)
7.50 ± .508
(.295 ± .02)
M6 x .75mm
9.19 ± .99
(.362 ± .039)
.03
(.762)
4.70 ± .508
(.185 ± .02)
13.20 ± .99
(.520 ± .039)
17.10 ± 2.01
(.673 ± .079)
1.17 ± .305
(.046 ± .012)
4.80 ± .508
(.189 ± .02)
12.10 ± .508
(.476 ± .02)
Mechanical Specifications:
Rating: 6A/250VAC, 3A/250VAC
Contact resistance: 20mΩ max.
Insulation resistance: 100MΩ min. @500VDC
Dielectric strength: 1000VAC for 1 minute
Electrical life: 10,000 cycles
Mechanical Specifications:
Mechanical life: 100,000 cycles
Operating temperature: -20°~+65°C
Mouser
Stock No.
1055-TA1360
1055-TA1365
Type
6P DPDT
6P DPDT
Circuit
On-On
On-Off-On
Miniature Toggle Switches
1055-TA1360, 1055-TA1365
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
