Technical Data Sheet
5.0 mm Round LED (T-1 3/4 )
3384-15UTC/S400-X9
Features
․Popular
T-1 colorless 3mm package.
․High
luminous power.
․Typical
chromaticity coordinates x=0.29, y=0.28
according to CIE1931.
․Bulk,
available taped on reel.
․Pb
free .
Descriptions
․The
series is designed for application required
high luminous intensity.
․The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Outdoor
Displays
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
Chip
PART NO.
Material
3384-15UTC/S400-X9
InGaN/Sapphire
Emitted Color
White
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device Number: CDLE-033-1708
http\\:www.everlight.com
Established date:2006/1/30
Rev: 1
Page: 1 of 6
Established by: GuangXiu Yuan
3384-15UTC/S400-X9

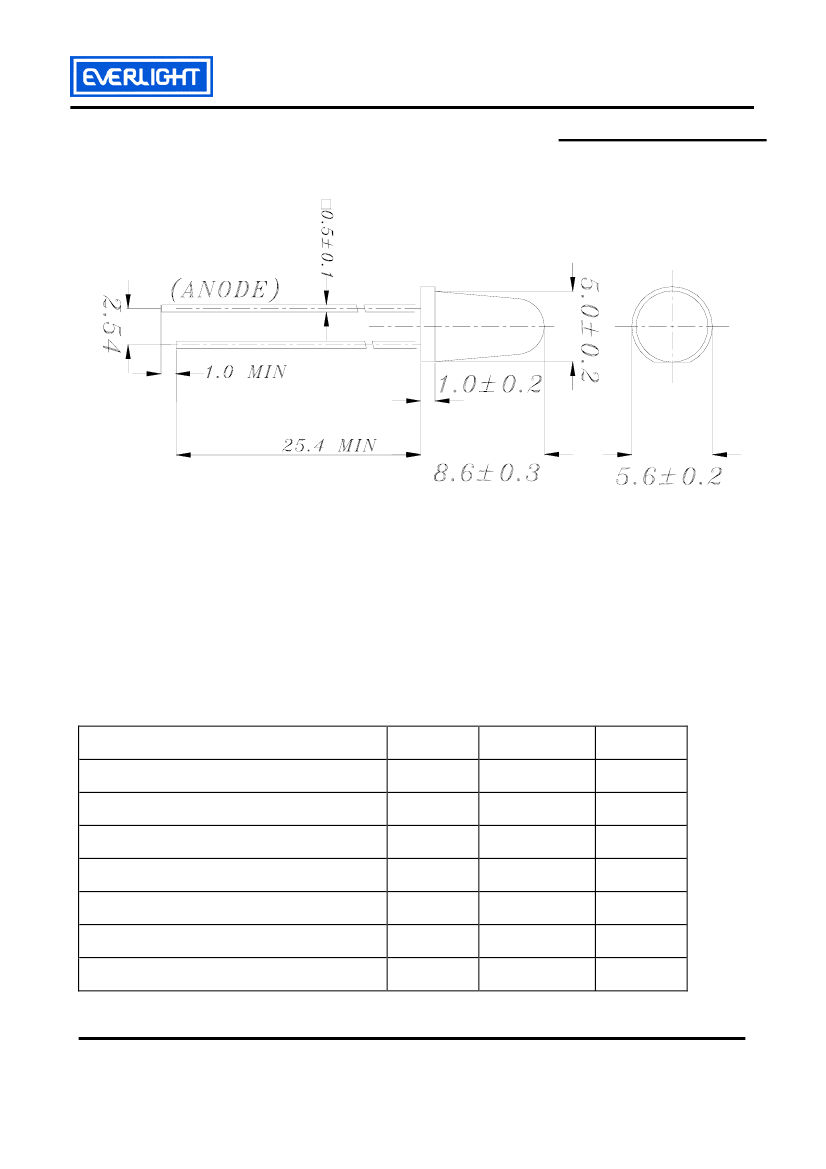

Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Electrostatic Discharge
Symbol
I
F
V
R
T
opr
T
stg
T
sol
P
d
ESD
Rating
25
5
-30 ~ +85
-40 ~ +100
260 ± 5
120
150
Unit
mA
V
℃
℃
℃
mW
V
Everlight Electronics Co., Ltd.
Device Number: CDLE-033-1708
http\\:www.everlight.com
Established date:2006/1/30
Rev: 1
Page: 2 of 6
Established by: GuangXiu Yuan
3384-15UTC/S400-X9
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Chromaticity
Coordinates
Symbol
V
F
I
R
I
V
2θ1/2
x
y
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
------
Min.
--
--
5000
--
--
--
Typ.
3.2
--
8000
15
0.29
0.28
Max.
4.0
10
--
--
--
--
Units
V
uA
mcd
deg
Luminous Intensity Combination (
mcd at 20mA)
I
V
Ranks
Min.
Max.
Z
5000
8000
Z1
8000
11000
Z2
11000
14000
Measurement Uncertainty of Luminous Intensity:
±15%
Forward Voltage Combination (
V at 20mA)
V
F
Rank
1
3.0
3.5
2
3.5
4.0
Min.
Max.
*Measurement Uncertainty of Forward Voltage：±0.1V
Everlight Electronics Co., Ltd.
Device Number: CDLE-033-1708
http\\:www.everlight.com
Established date:2006/1/30
Rev: 1
Page: 3 of 6
Established by: GuangXiu Yuan
3384-15UTC/S400-X9
CIE Chromaticity Diagram
Color Ranks (IF=20mA，Ta=25℃)
Color Ranks
A1
A0
B3
B4
B5
B6
C0
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
X
0.255
0.245
0.264
0.267
0.283
0.305
0.304
0.33
0.287
0.295
0.307
0.315
0.33
0.264
0.267
0.283
0.305
0.304
0.33
0.33
0.36
0.307
0.315
0.33
0.339
0.361
CIE
0.28
0.248
0.296
0.276
0.307
0.315
0.33
0.339
0.311
0.294
0.33
0.318
0.355
0.27
0.23
0.28
0.248
0.287
0.295
0.307
0.315
0.296
0.276
0.311
0.294
0.33
0.318
Y
0.36
0.385
0.35
Measurement uncertainty of the color coordinates：±0.01
Everlight Electronics Co., Ltd.
Device Number: CDLE-033-1708
http\\:www.everlight.com
Established date:2006/1/30
Rev: 1
Page: 4 of 6
Established by: GuangXiu Yuan
3384-15UTC/S400-X9

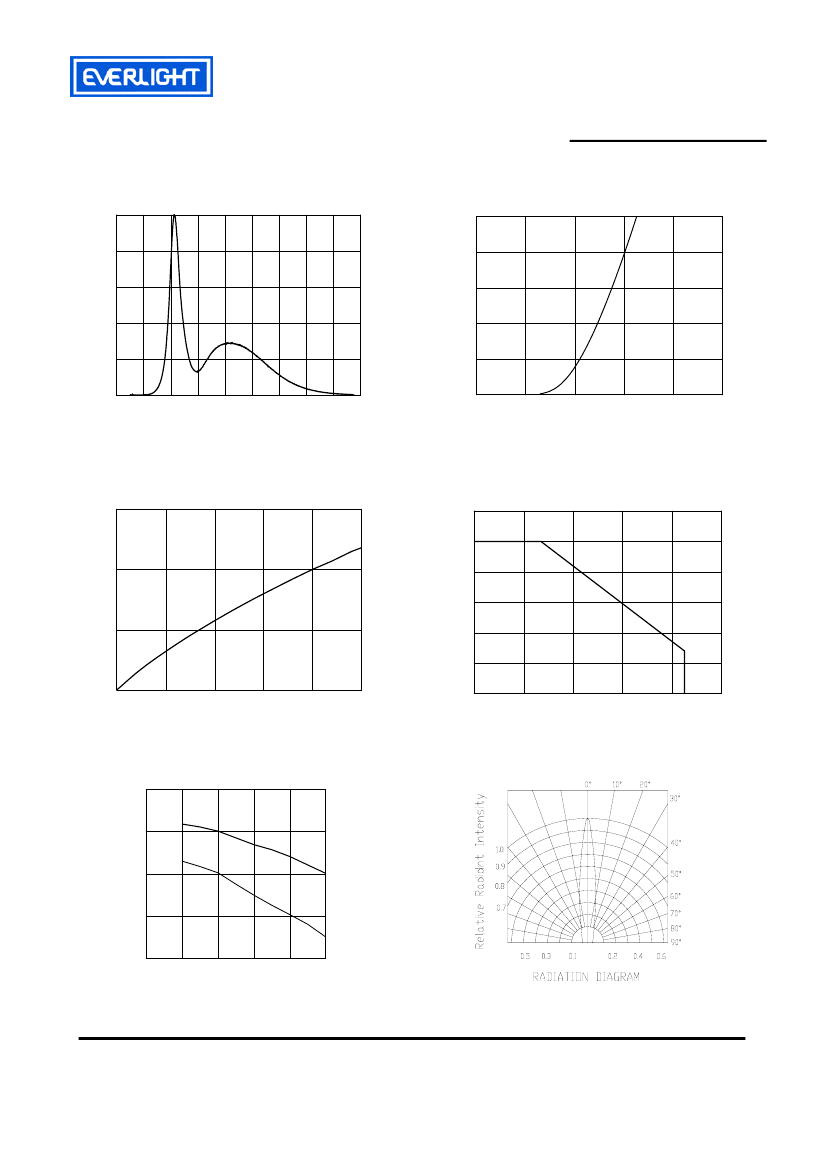

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.0
Forward Current vs. Forward Voltage
25
Relative Intensity(a.u.)
0.8
Forward Current(mA)
20
15
10
5
0
2.0
0.6
0.4
0.2
0.0
350
400
450
500
550
600
650
700
750
800
2.5
3.0
3.5
4.0
4.5
Wavelength(nm)
Forward Voltage(V)
Relative Intensity vs. Forward Current
1.5
Forward Current vs. Ambient Temp.
30
Relative Intensity(a.u.)
1.0
Forward Current(mA)
0
5
10
15
20
25
25
20
15
10
5
0
0.5
0.0
0
20
40
60
80
O
100
Forward Current(mA)
Ambient Temperature Ta( C)
Chromaticity Coordinate vs. Forward Current
0.300
Relative Intensity vs. Angle Dispacemen
Relative Intensity(a.u.)
0.290
x
y
0.280
0.270
0.260
0
10
20
30
40
50
Forw Current(m
ard
A)
Everlight Electronics Co., Ltd.
Device Number: CDLE-033-1708
http\\:www.everlight.com
Established date:2006/1/30
Rev: 1
Page: 5 of 6
Established by: GuangXiu Yuan
