This document was generated on 11/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0545603001
Active
qf50
2.54mm (0.100") Pitch QF-50™ Flat Ribbon Cable Receptacle Upper Housing, 30
Circuits
Documents:
Drawing (PDF)
Product Specification PS-54559-004 (PDF)
Product Specification PS-54559-005 (PDF)
RoHS Certificate of Compliance (PDF)
Series

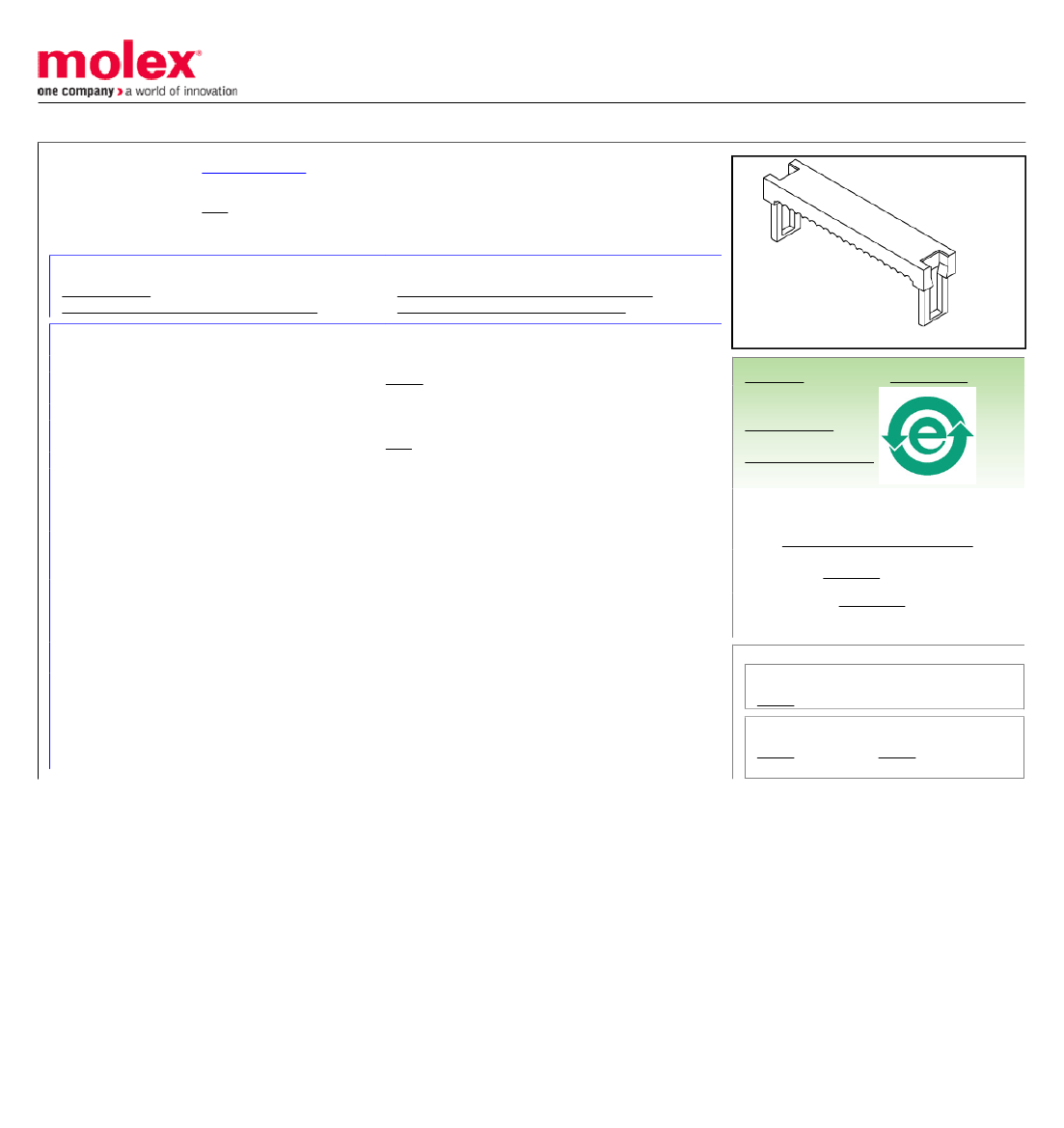

image - Reference only
Accessories
54560
572525000
572527000
Housing
qf50
QF-50™
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application Tooling Part Link
Application Tooling Part Link
Component Type
Overview
Product Name
Physical
Circuits (Loaded)
Color - Resin
Material - Resin
Number of Rows
Packaging Type
Temperature Range - Operating
30
Black
Polyester
2
Tray
-40°C to +85°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
1A
Material Info
Reference - Drawing Numbers
Product Specification
PS-54559-004, PS-54559-005, RPS-54559-008,
RPS-54559-010, RPS-54559-012, RPS-54559-014,
RPS-54559-015, RPS-54559-016, RPS-54559-017
SD-54560-002, SD-54561-002
Search Parts in this Series
54560Series
Use With
54561 Strain Relief, 54559 Receptacle
Housing
Sales Drawing
