Part Number:
Status:
Description:
Documents:
3D Model

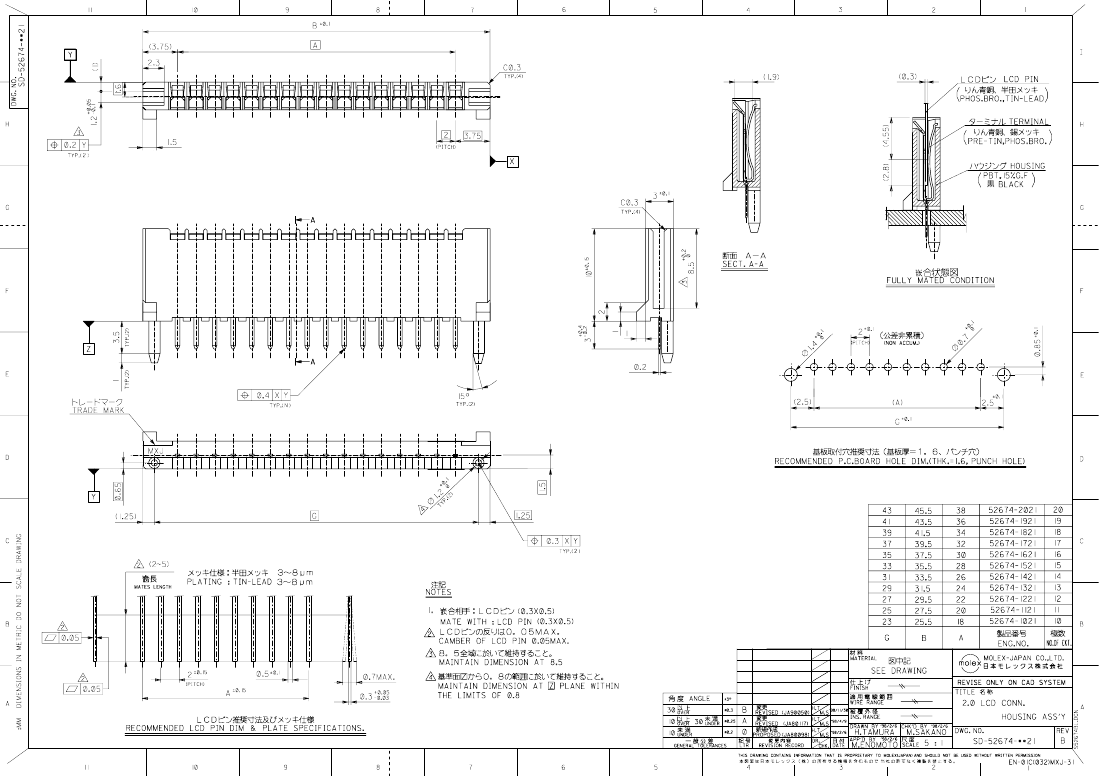

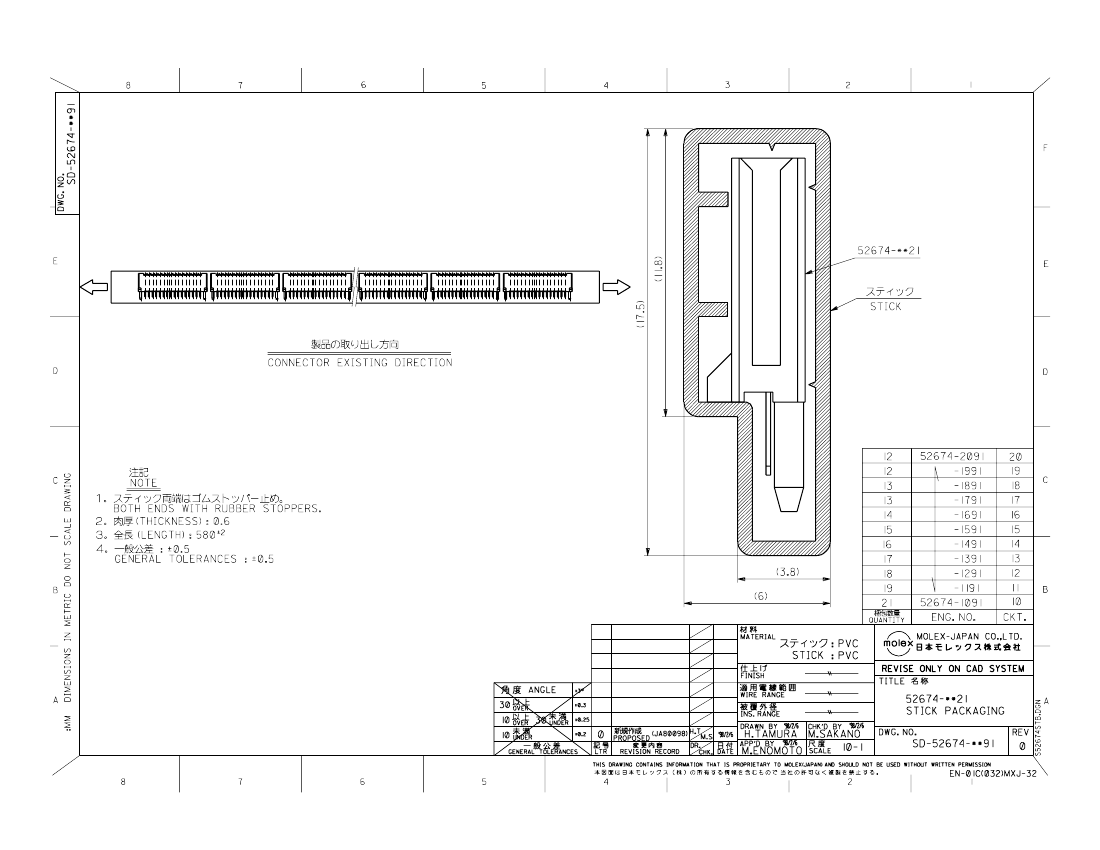

Drawing (PDF)
0526741091
Active
2.00mm (.079") Pitch LCD Pin Connector, Black, 10 Circuits
Product Specification PS-52674-002 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
Product Name
Other Sockets
52674
Socket
N/A
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Termination Interface: Style
10
10
Black
10
Vertical (Top Entry)
N/A
Phosphor Bronze
Tin
Tin
Yes
Yes
0.062 In
1.60 mm
Tube
0.079 In
2.00 mm
0.079 In
2.00 mm
36
0.90
36
0.90
-40°C to +100°C
Through Hole
Search Parts in this Series
52674Series
Mates With
LCD Pin (0.3 x 0.5)
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-52674-002
SD-52674-**21, SD-52674-**91
