52674-2091 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52674-2091

52674-2091: Description2.00mm (.079") pitch lcd pin connector, black, 20 circuits; CategoryThe connector The connector; File Size183KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52674-2091 Overview

2.00mm (.079") pitch lcd pin connector, black, 20 circuits

52674-2091 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	52674
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0526742091

Active

2.00mm (.079") Pitch LCD Pin Connector, Black, 20 Circuits

Product Specification PS-52674-002 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Component Type

Product Name

Other Sockets

52674

Socket

N/A

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Black

Vertical (Top Entry)

N/A

Phosphor Bronze

Tin

Yes

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.90

-40°C to +100°C

Through Hole

Search Parts in this Series

52674Series

Mates With

LCD Pin (0.3 x 0.5)

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V

Material Info

Reference - Drawing Numbers

Product Specification

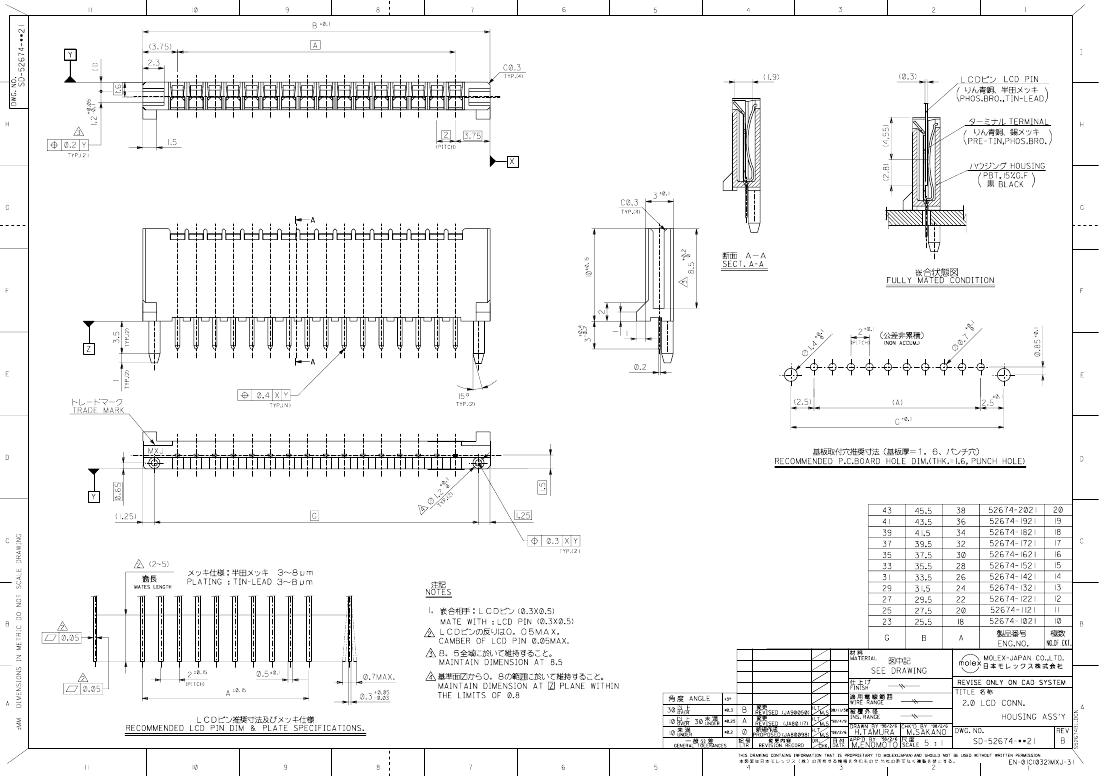

Sales Drawing

PS-52674-002

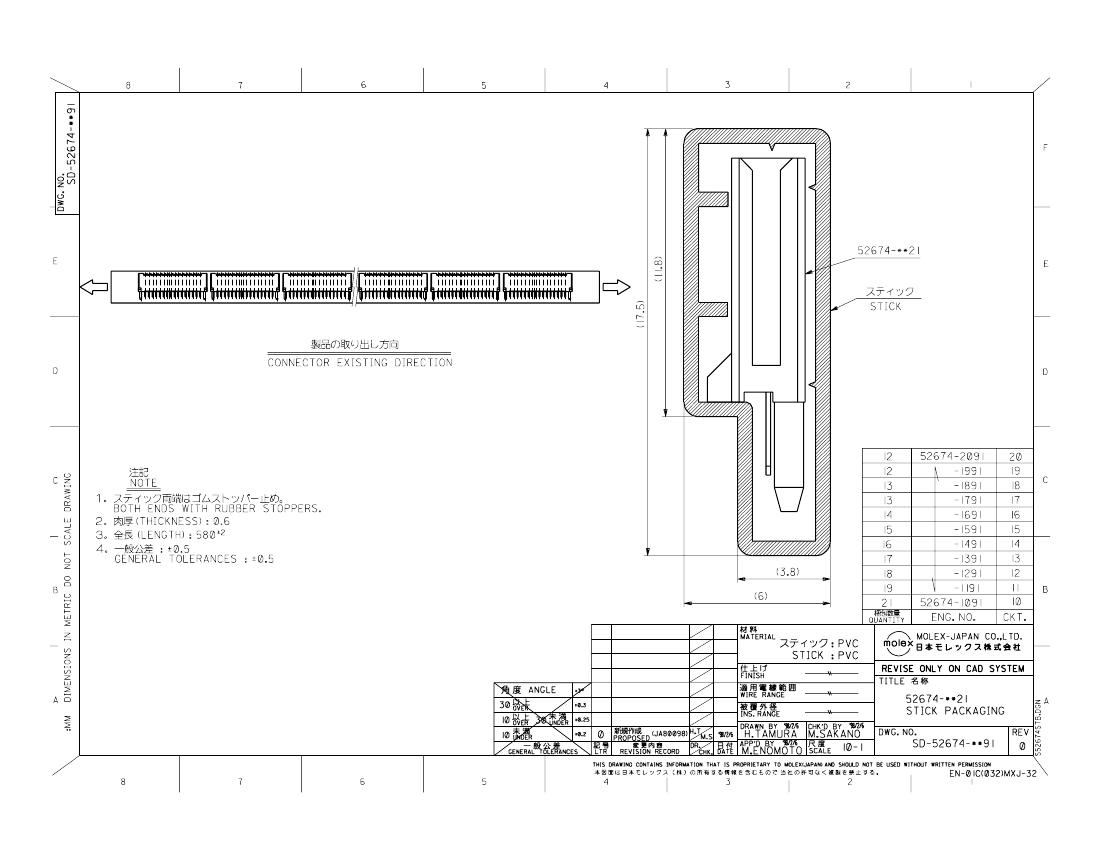

SD-52674-**21, SD-52674-**91

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
