This document was generated on 11/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0482980001
Obsolete
2.50mm (.098") Pitch, SD Memory Card Connector, Push-Push Type, with PCB
Locator, Standard Type with Length 22.50mm (.886"), Lead Free
Documents:
Drawing (PDF)
General
Product Family
Series
Component Type
Product Name
Style
Type
Memory Card Sockets
48298
Header & Ejector (Host)
SD Card
Push-Push
N/A

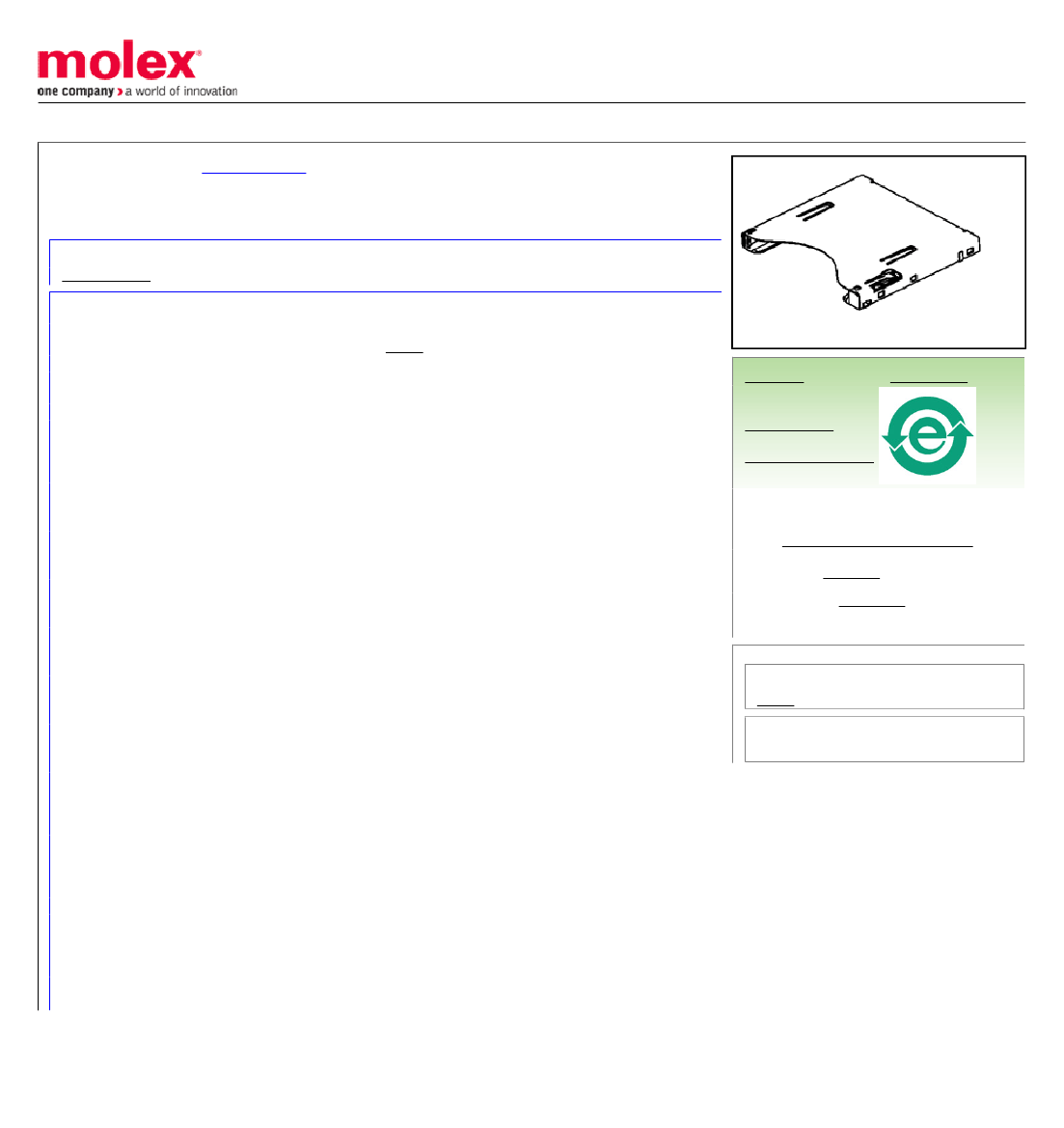

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Series
Physical
Card Detection Switch
Circuits (Loaded)
Durability (mating cycles max)
Ejector Button
Ejector Button Side
Entry Angle
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PCB Locator
PCB Mounting Side
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Ports
Temperature Range - Operating
Termination Interface: Style
Yes
9
10,000
No
N/A
90° Angle (Side Entry)
Yes
Phosphor Bronze, Stainless Steel
Gold
Nickel
High Temperature Thermoplastic
Yes
Normal
Yes
Embossed Tape on Reel
2.50mm (.098")
2.50mm (.098")
0.254µm (10µ")
1
-25°C to +90°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
48298Series
Use With
SD Card
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
0.5A
Yes
250V DC
Material Info
Country of Origin
CN, HK
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-48298-001
PS-48298-001
SD-48298-001
TS-48298-001
