3069-G14

Description
3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 14 circuits, glow wire compatible
File Size217KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

3069-G14 Overview

3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 14 circuits, glow wire compatible

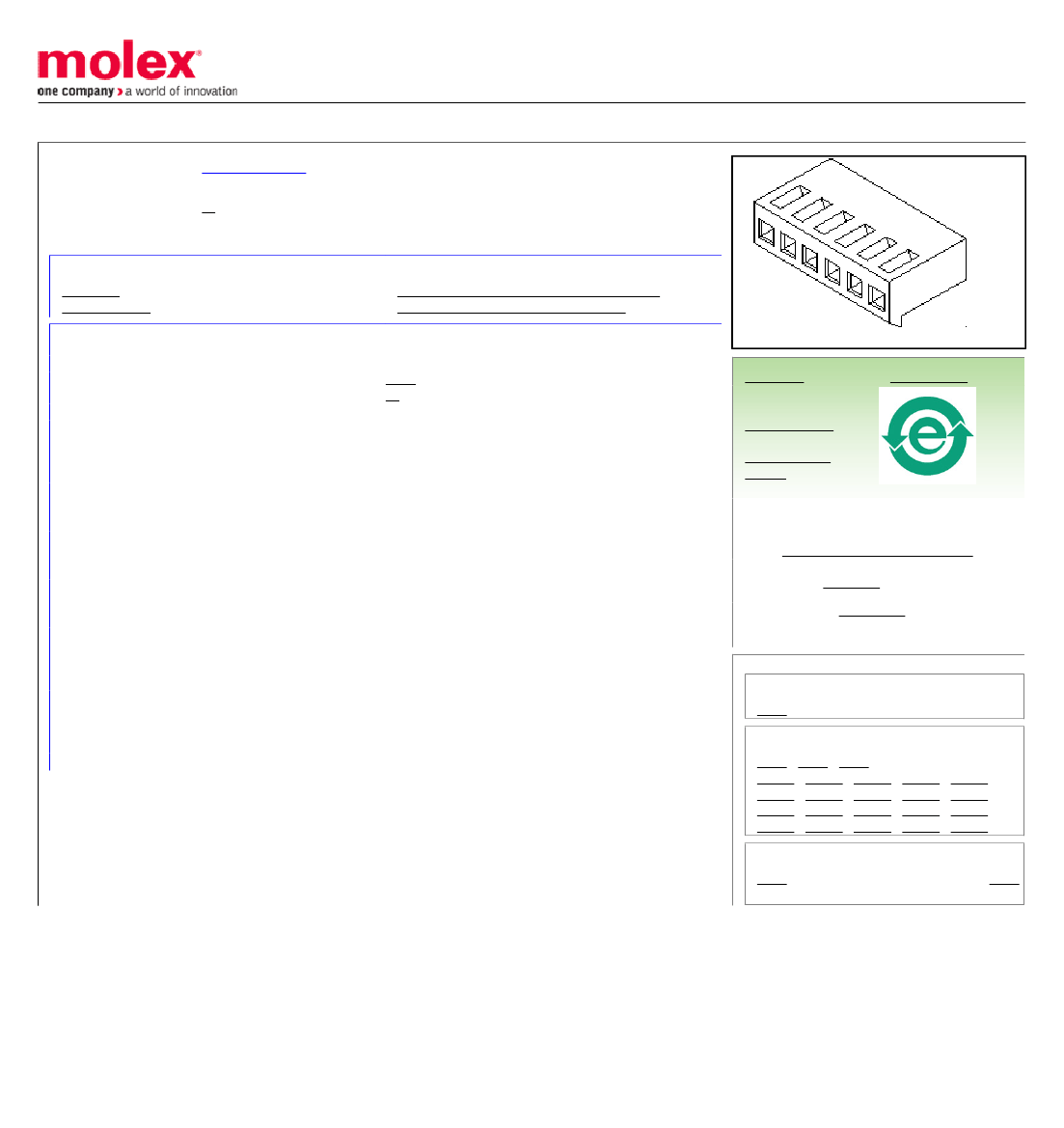

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0009931300
Active
kk
3.96mm (.156") Pitch KK® Crimp Terminal Housing, Friction Ramp, 13 Circuits, Glow
Wire Compatible
Documents:
3D Model
Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Crimp Housings
3069
kk
KK®
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Overview
Product Name
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Temperature Range - Operating
13
13
Natural
Female
Yes
Yes
Nylon
1
Bag
No
0.156 In
3.96 mm
0°C to +75°C
Material Info
Old Part Number
3069-G13
Search Parts in this Series
3069Series
Mates With
2220 , 3190 , 3192 , 3243, 3246, A4042,
41661 , 41662 , 41671 , 41672 , 41681 ,
41682 , 41701 , 41711 , 41721 , 41741 ,
41761 , 41771 , 41772 , 41791 , 41792 ,
42441 , 42461 , 42471 , 42491 , 42492
Use With
2478 Crimp Terminals for 18-24 AWG, 2578
Crimp Terminals for 22-26 AWG

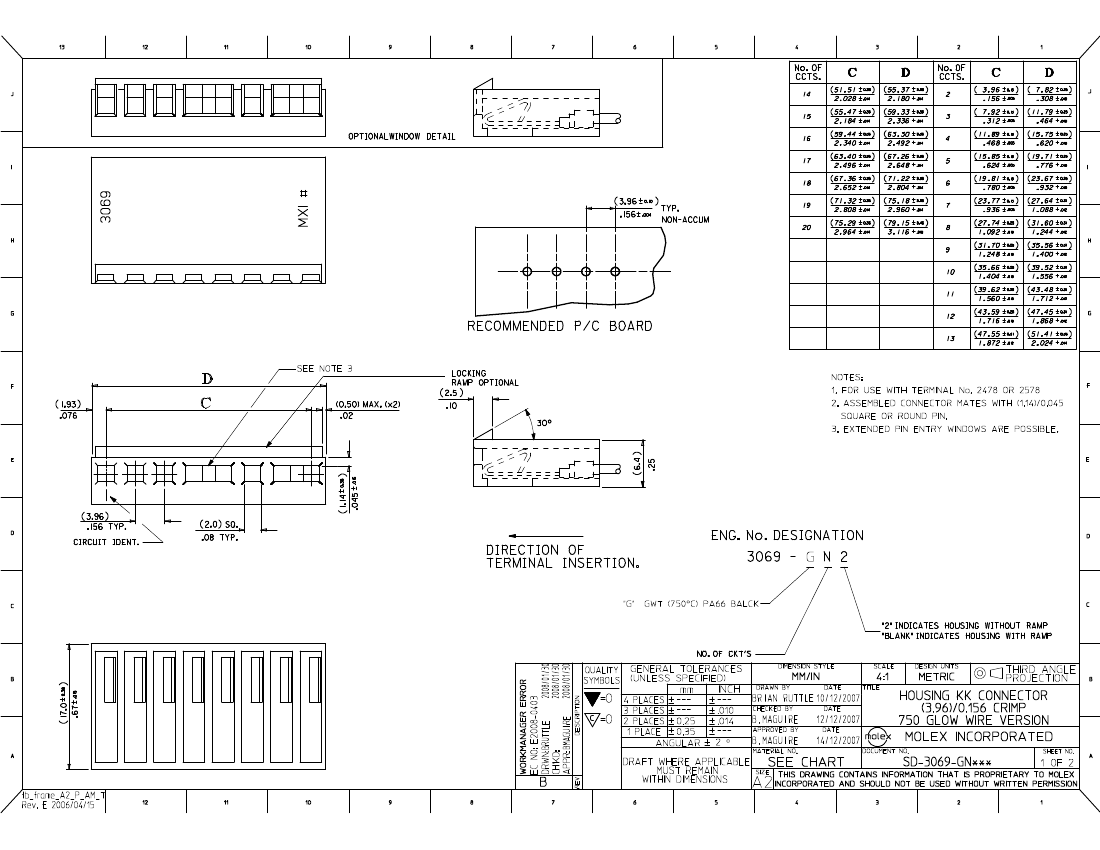

Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-99020-0087

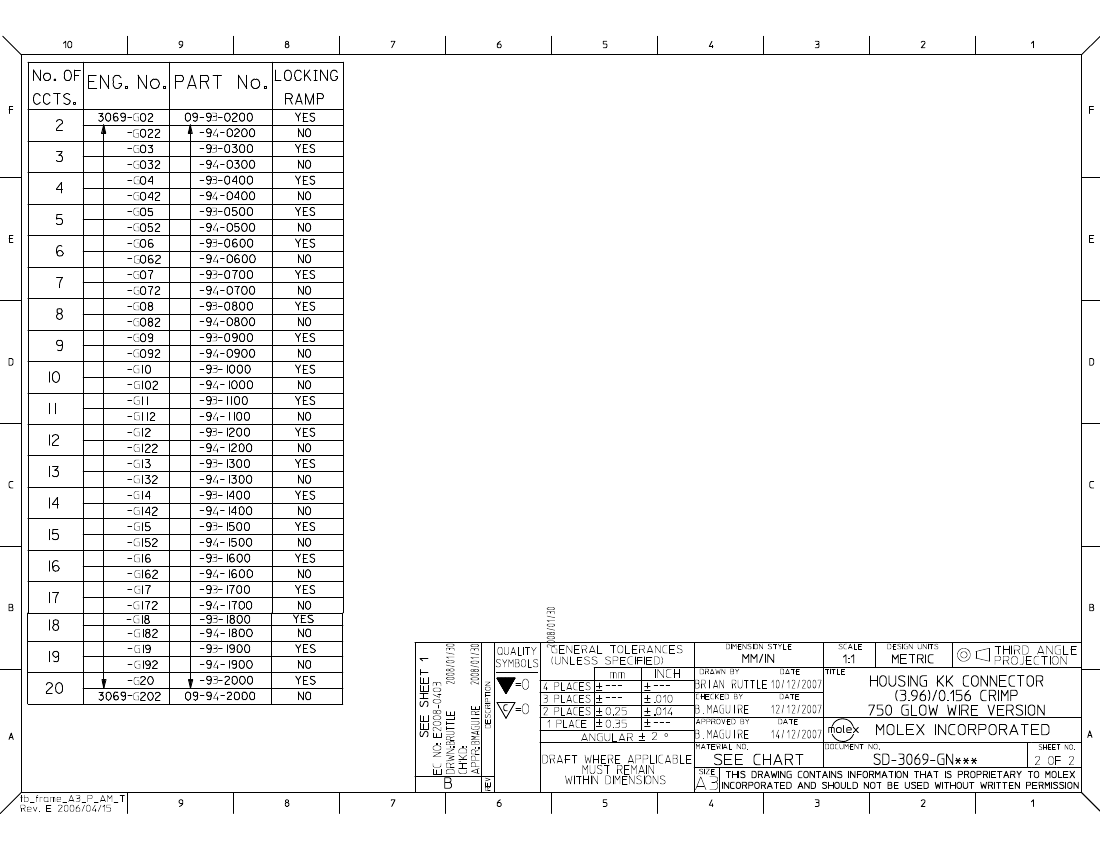

SD-3069-GN***
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
