3069-G04: Description3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 4 circuits, glow wire compatible; File Size217KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

3069-G04 Overview

3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 4 circuits, glow wire compatible

Preview

Download Datasheet

View All

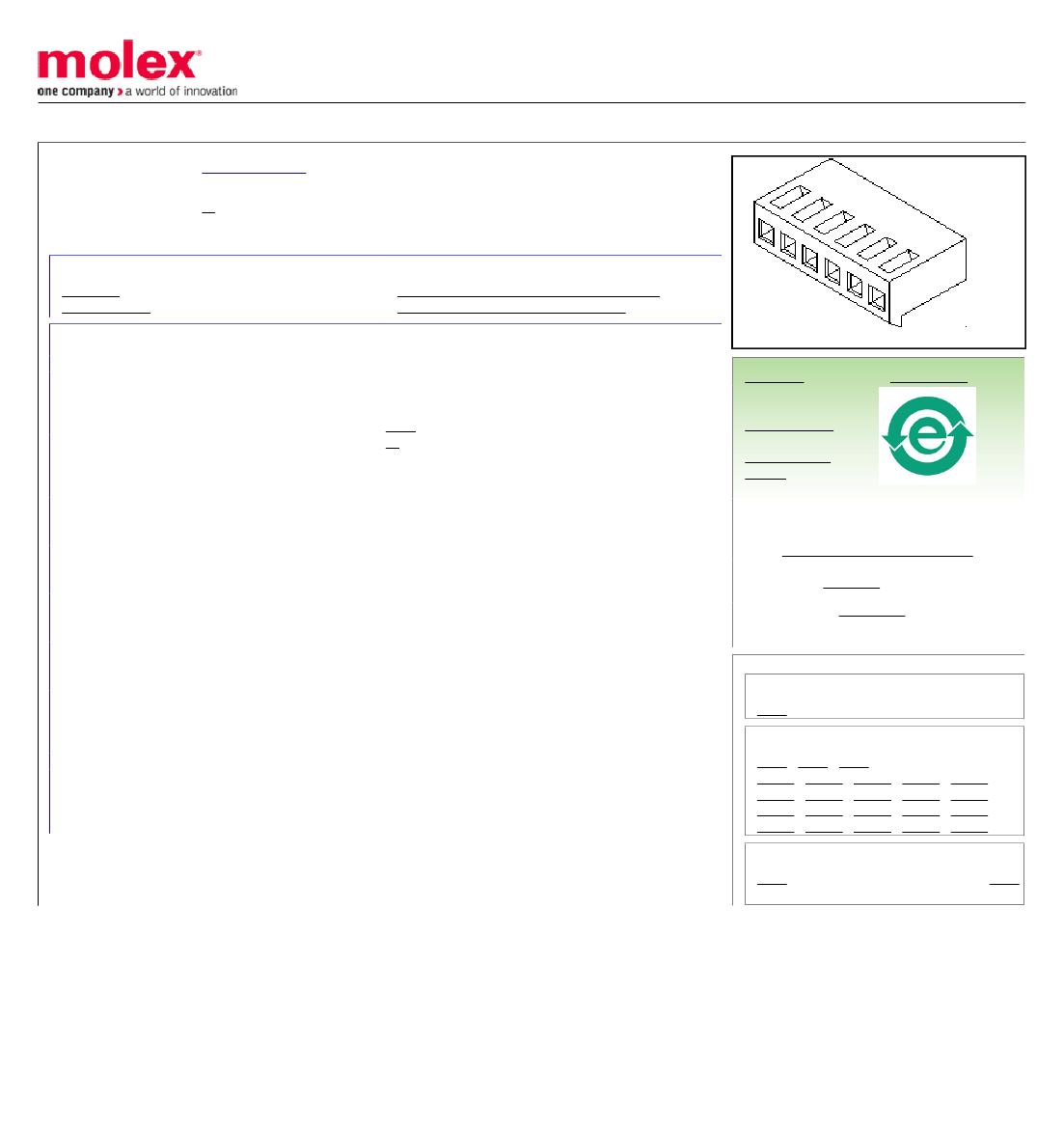

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0009930200

Active

3.96mm (.156") Pitch KK® Crimp Terminal Housing, Friction Ramp, 2 Circuits, Glow

Wire Compatible

Documents:

3D Model

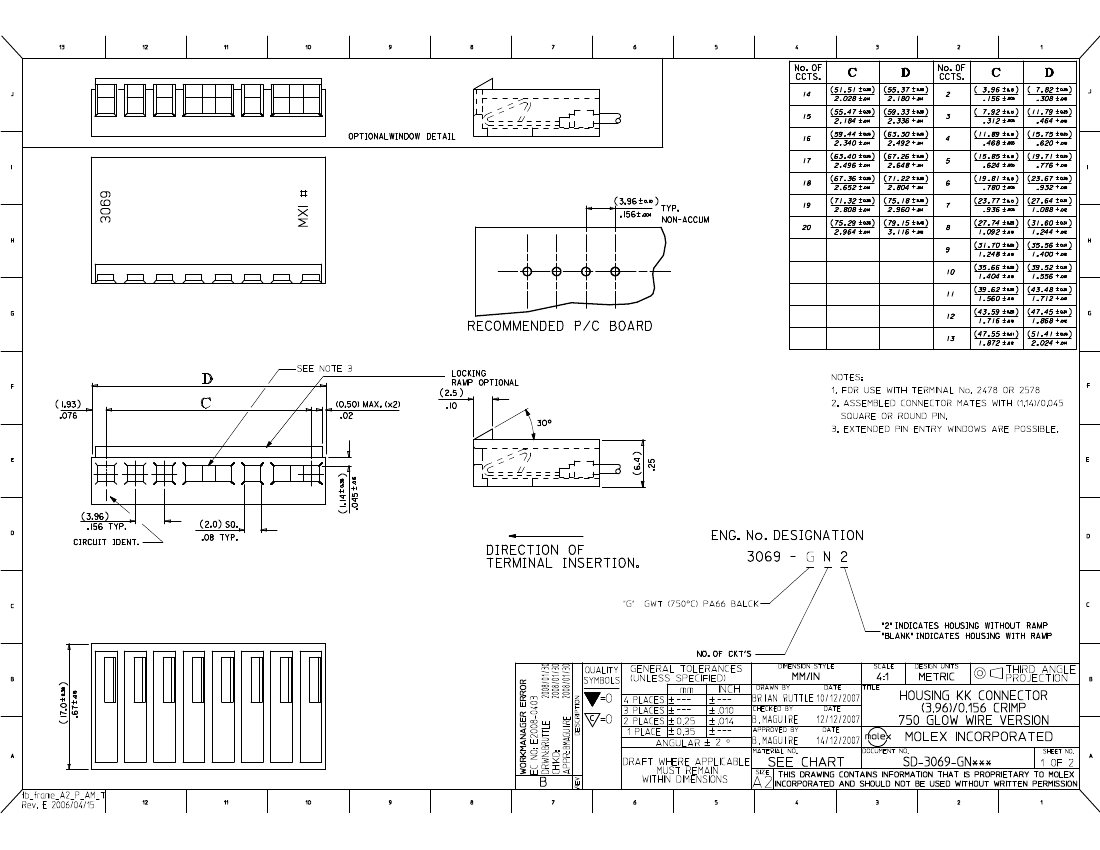

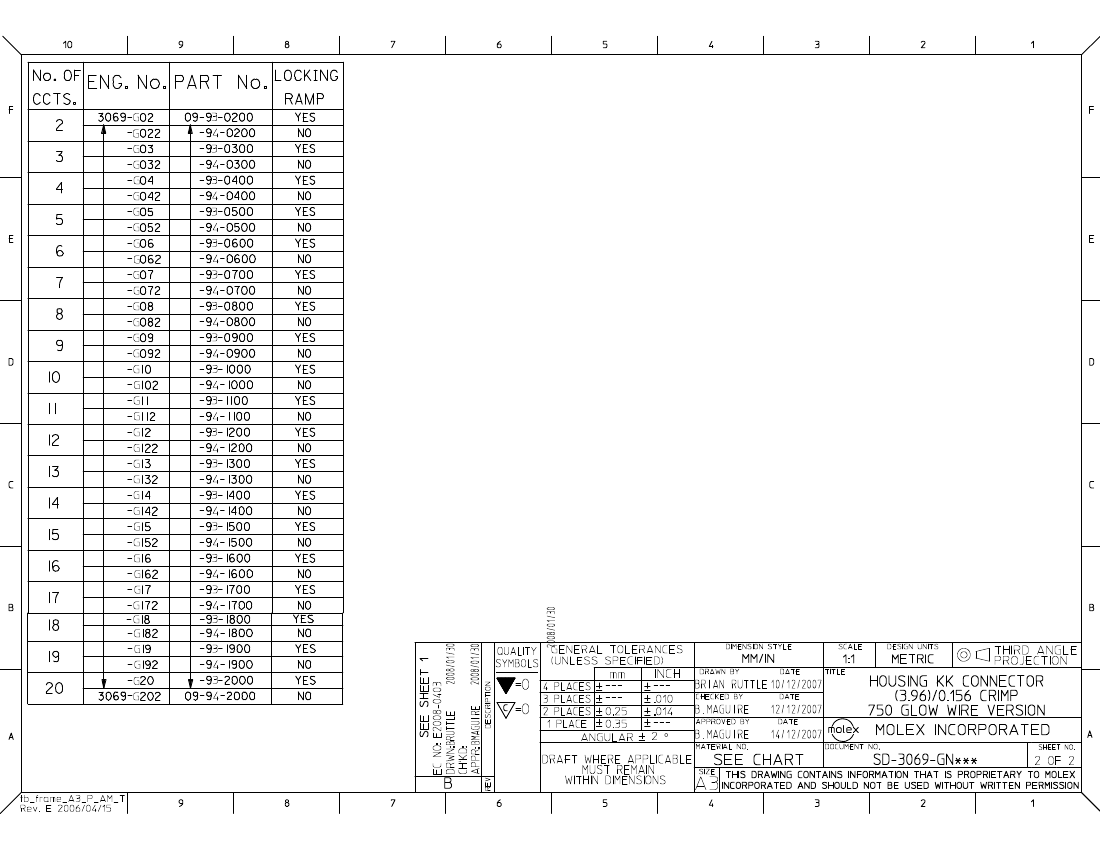

Drawing (PDF)

Product Specification PS-99020-0087 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Overview

Product Name

Crimp Housings

3069

KK®

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Temperature Range - Operating

Natural

94V-2

Female

Yes

Nylon

Bag

0.156 In

3.96 mm

0°C to +75°C

Search Parts in this Series

3069Series

Mates With

2220 , 3190 , 3192 , 3243, 3246, A4042,

41661 , 41662 , 41671 , 41672 , 41681 ,

41682 , 41701 , 41711 , 41721 , 41741 ,

41761 , 41771 , 41772 , 41791 , 41792 ,

42441 , 42461 , 42471 , 42491 , 42492

Use With

2478 Crimp Terminals for 18-24 AWG, 2578

Crimp Terminals for 22-26 AWG

Material Info

Old Part Number

3069-G02

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-99020-0087

SD-3069-GN***

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

3069-G04 Related Products

	3069-G04	3069-G02	3069-G03	3069-G06	3069-G07	3069-G09	3069-G11
Description	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 4 circuits, glow wire compatible	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 2 circuits, glow wire compatible	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 3 circuits, glow wire compatible	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 6 circuits, glow wire compatible	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 7 circuits, glow wire compatible	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 9 circuits, glow wire compatible	3.96mm (.156") pitch KK? crimp terminal housing, friction ramp, 11 circuits, glow wire compatible
