54697-7003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54697-7003

54697-7003: Descriptionddr3/ddr2/ddr connector 0.8 SOdimm hsg ass dimm hsg assy 144ckt; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54697-7003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54697-7003	-	-	View	Buy Now

54697-7003 Overview

ddr3/ddr2/ddr connector 0.8 SOdimm hsg ass dimm hsg assy 144ckt

54697-7003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
body length	2.854 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	54697
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.323 mm
Plating thickness	FLASH inch
polarization key	POLARIZED KEY
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
UL Flammability Code	94V-0
Base Number Matches	1

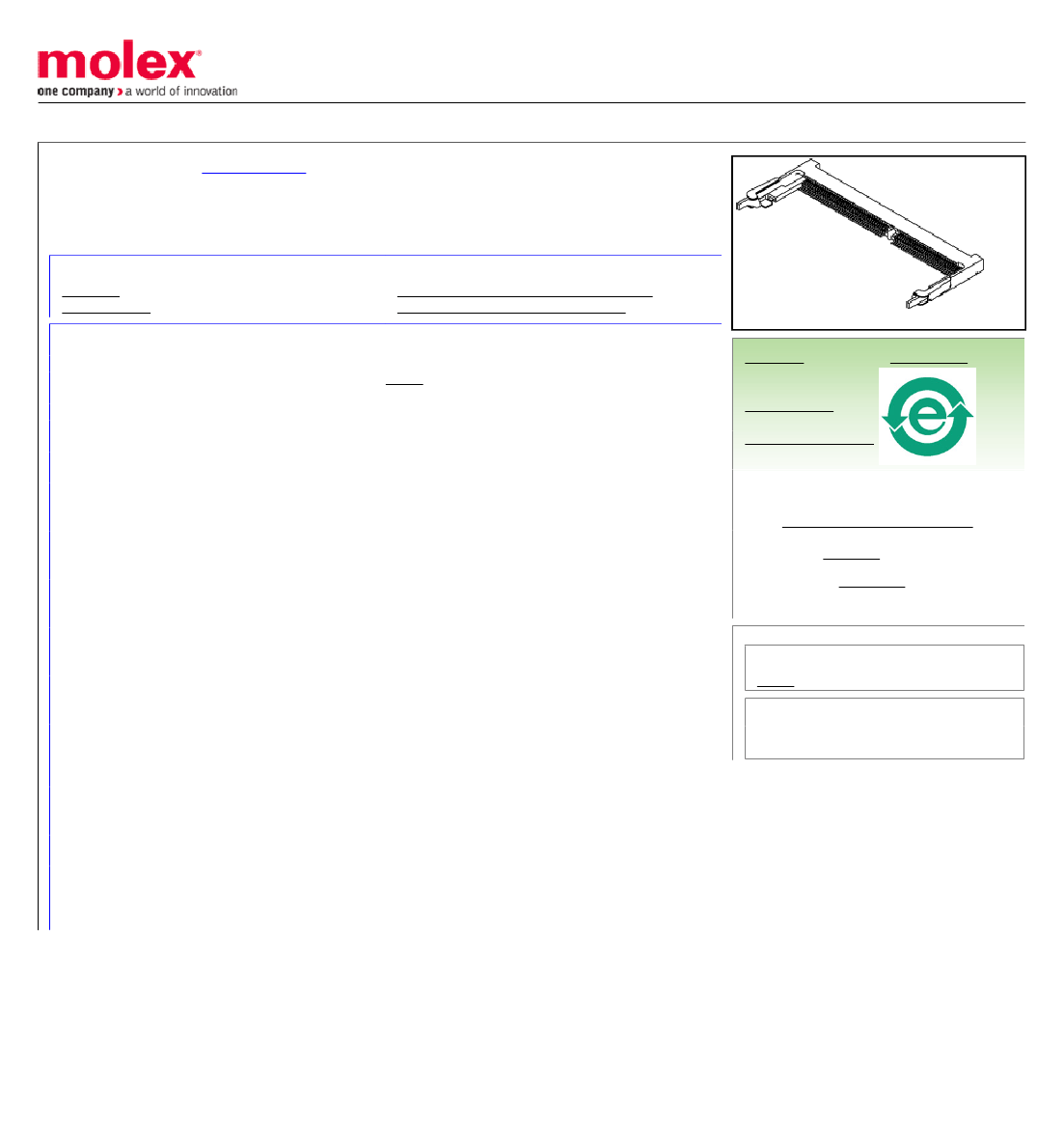

Preview

Download Datasheet

View All

This document was generated on 11/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0546977003

Contact Molex

0.80mm (.031") Pitch S.O. DIMM Socket, Right Angle, Surface Mount, 4.00mm (.157")

Mounted Height, 144 Circuits, 3.3V Power Supply, Hard Tray Packaging, Height

11.00mm (.433") Type, Lead-free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54697-003 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Memory Module Sockets

54697

3.3V Power Supply

Memory Module

N/A

S.O. DIMM

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

144

Natural

90° Angle (Side Entry)

Yes

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Yes

1.20mm (.047")

Tray

0.80mm (.031")

0.254µm (10µ")

1.016µm (40µ")

-55°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

54697Series

Mates With

JEDEC Standard DRAM and SDRAM

modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

0.3A

100V

3.3V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-54697-003, RPS-54697-006

SD-54697-004

This document was generated on 11/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
