SD-120114-017 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > SD-120114-017

Preview

SD-120114-017: Descriptionmicro-change molded junction box, top mount, 4 ports, 2(IO) per port, leds for pnp sensors, with integral; File Size123KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

SD-120114-017 Overview

micro-change molded junction box, top mount, 4 ports, 2(IO) per port, leds for pnp sensors, with integral

Preview

Download Datasheet

View All

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1201140030

Active

microchange_m12_connectors

Micro-Change® Molded Junction Box, Top Mount, 4 Ports, 2(IO) per port, LEDs for

PNP sensors, with Integral Mini-Change® Home Run Connector

Documents:

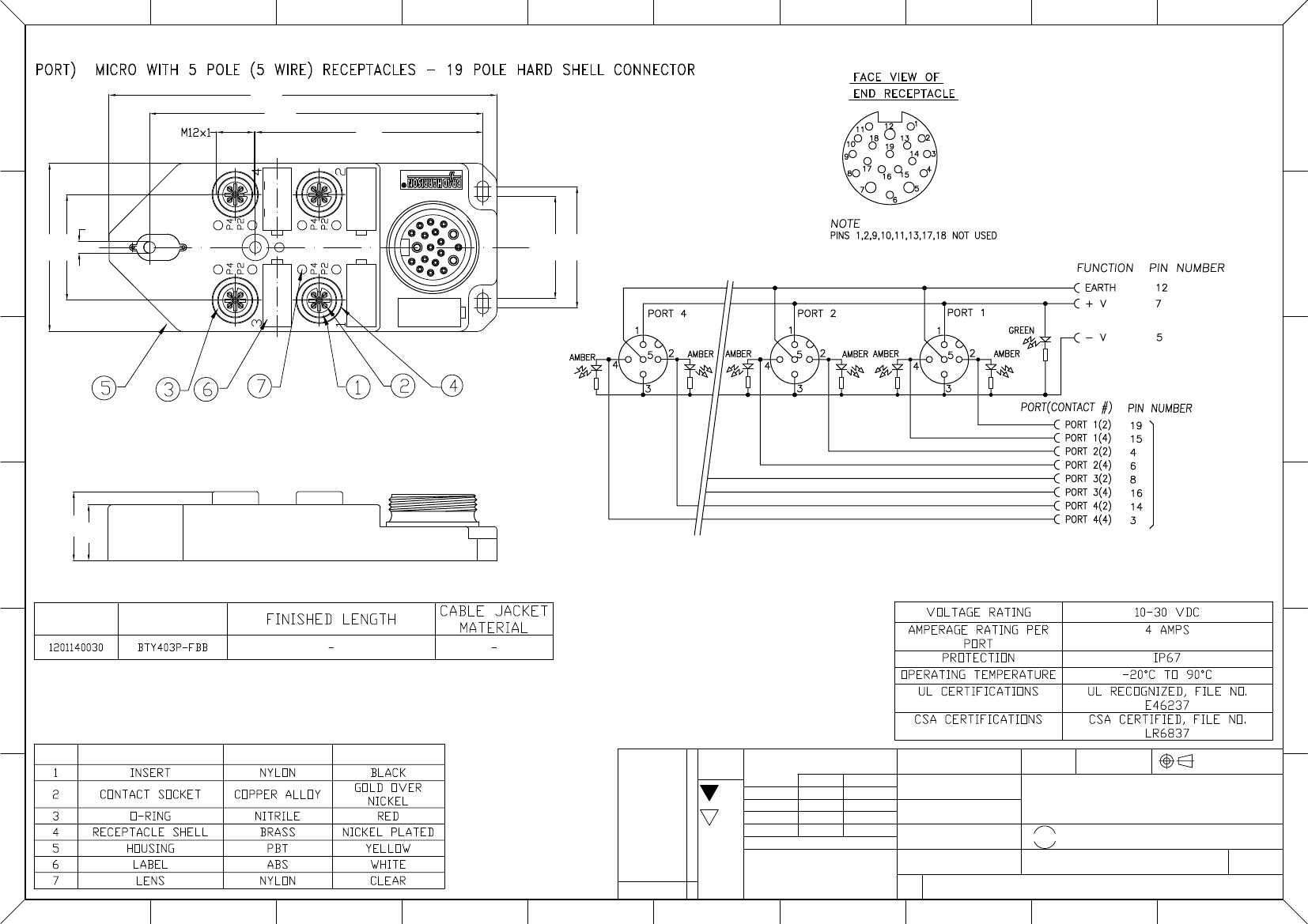

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR6837

E152210

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

IP Rating

NEMA Rating

Overview

Product Name

Passive Distribution Boxes

120114

PNP SENSORS

IP68

NEMA 6

microchange_m12_connectors

Micro-Change® (M12)

Search Parts in this Series

120114Series

Physical

Bus I/O

Cable Connector Orientation

Cable Length

Home Run Cable Length

Home Run Connector

Home Run Interface

Keyway

LED Indicator

Material - Cable Jacket

Material - Housing

Material - Metal

Material - Plating Mating

Orientation

Poles

Poles (wired)

Ports

Temperature Range - Operating

Wiring Configuration

Micro-Change® (M12)

90° Angle

N/A

Mini-Change® - 19 pole

Integrated Connector

Single

Yes

N/A

PBT

Copper Alloy

Gold over Nickel

Top Mount

-20°C to +90°C

Dual I/O per Port

Electrical

Current - Maximum per Contact

Functional Wiring

Voltage - Maximum

12A per module, 4A per port

Parallel

10-30V DC

Material Info

Old Part Number

BTY403P-FBB

Reference - Drawing Numbers

Sales Drawing

SD-120114-017

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

SD-120114-017 Related Products

	SD-120114-017	1201140030
Description	micro-change molded junction box, top mount, 4 ports, 2(IO) per port, leds for pnp sensors, with integral	micro-change molded junction box, top mount, 4 ports, 2(IO) per port, leds for pnp sensors, with integral
