0901430012: Description2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 12 circuits; CategoryThe connector The connector; File Size253KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0901430012 Overview

2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 12 circuits

0901430012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	13 weeks
Is Samacsys	N
Other features	STACKABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

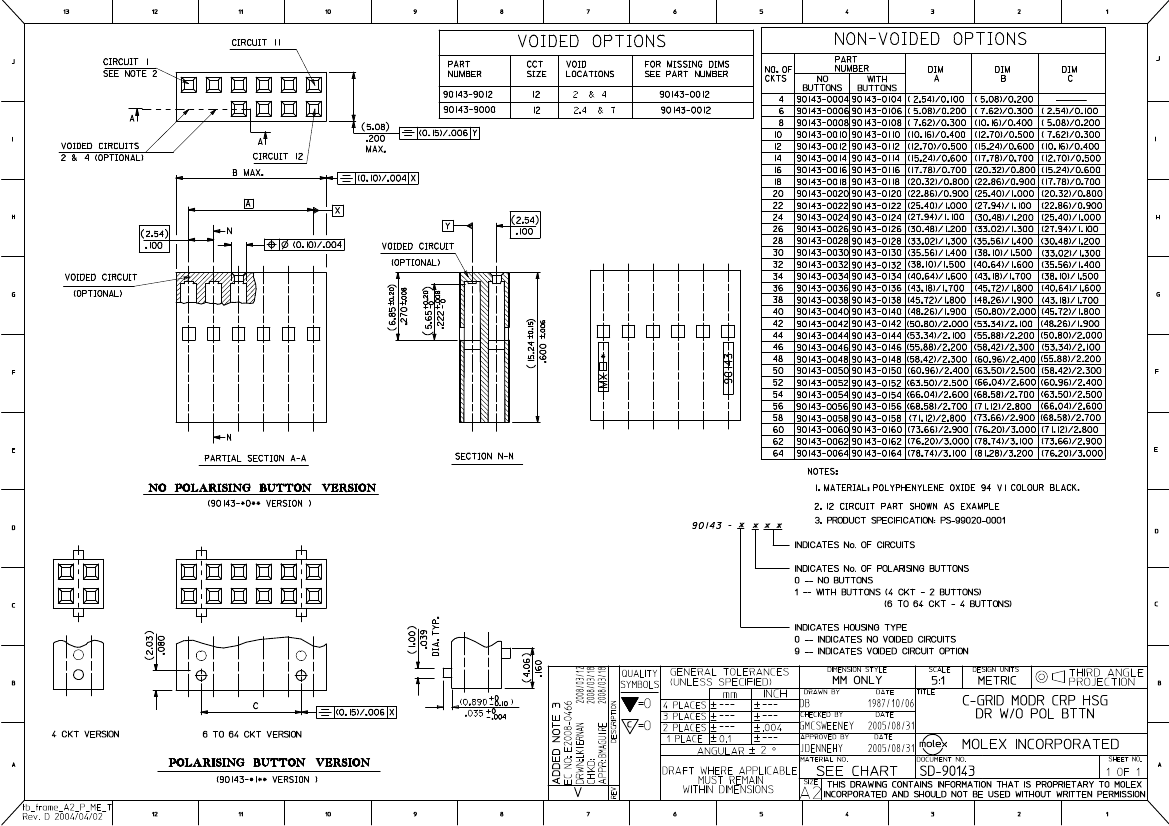

Drawing (PDF)

0901430004

Active

cgrid_iii

2.54mm (.100") Pitch C-Grid III™ Modular Crimp Housing, Dual Row, 4 Circuits

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

90143

No Buttons

cgrid_iii

C-Grid III™

Series

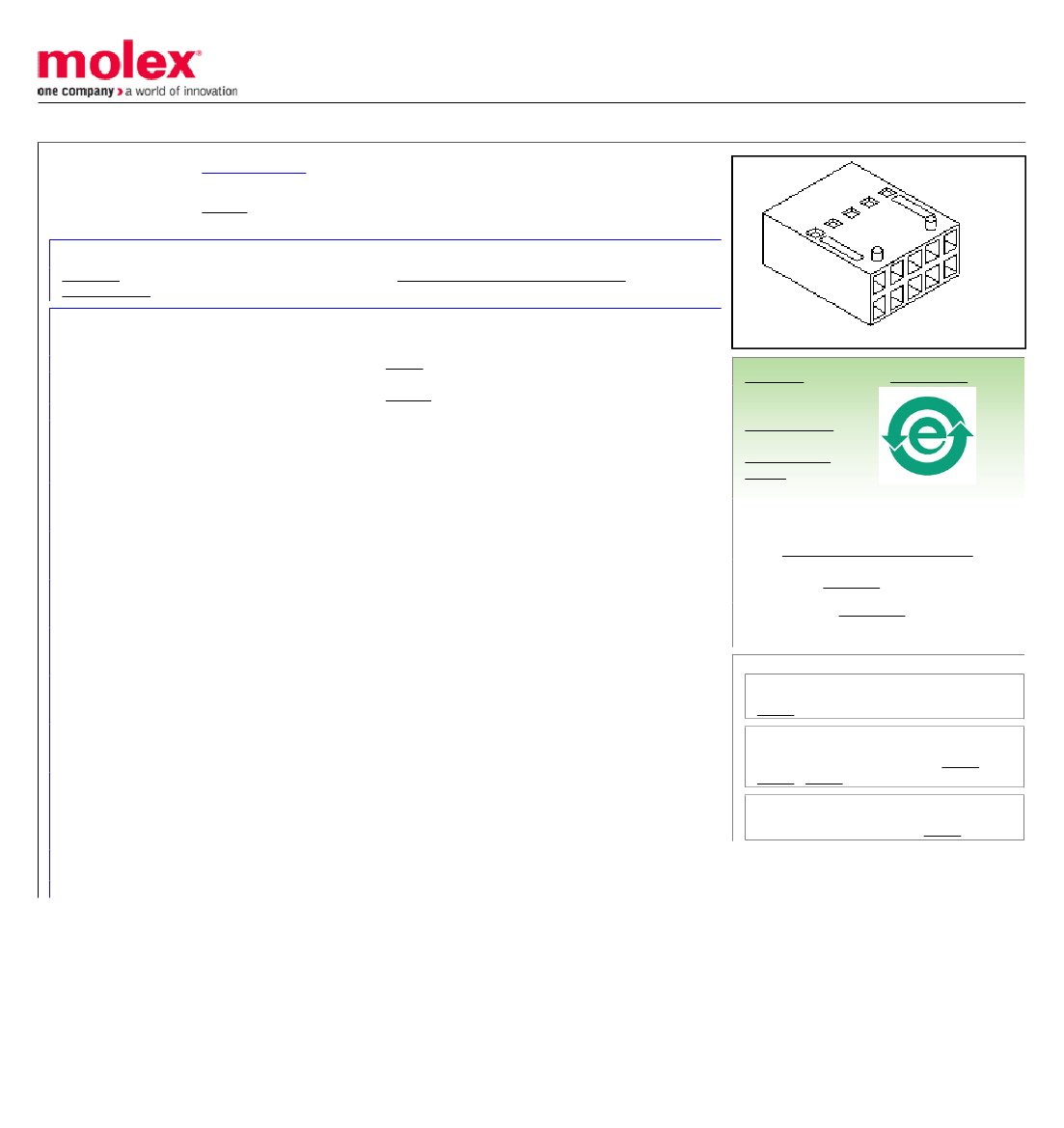

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Ports

Stackable

Temperature Range - Operating

No

4

No Voided Circuits

Black

Female

No

None

No

PPO

2

Bag

No

0.100 In

2.54 mm

0.100 In

2.54 mm

No

1

Yes

-55°C to +105°C

Search Parts in this Series

90143Series

Mates With

C-Grid III™ Header, Dual Row 90122 ,

90130 , 90131

Use With

C-Grid III™ Crimp Terminal 90119

Electrical

Current - Maximum per Contact

3A

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-90143

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

0901430012 Related Products

	0901430012	BRL1608T3R3M	0901430014	54AC244-N	0901430034
Description	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 12 circuits	Wire-wound Chip Power Inductors	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 14 circuits	54AC244/54ACT244 Octal Buffer/Line Driver with TRI-STATE Outputs	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 34 circuits
Is it lead-free?	Lead free	-	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to	-	conform to
Maker	Molex	-	Molex	-	Molex
package instruction	ROHS AND REACH COMPLIANT	-	ROHS AND REACH COMPLIANT	-	ROHS COMPLIANT
Reach Compliance Code	compliant	-	compliant	-	compliant
Is Samacsys	N	-	N	-	N
Other features	STACKABLE	-	STACKABLE	-	STACKABLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	-	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED
DIN compliance	NO	-	NO	-	NO
Filter function	NO	-	NO	-	NO
IEC compliance	NO	-	NO	-	NO
MIL compliance	NO	-	NO	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	-	NO
Installation type	CABLE	-	CABLE	-	CABLE
Number of rows loaded	2	-	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE
Termination type	CRIMP	-	CRIMP	-	CRIMP
Total number of contacts	12	-	14	-	34
Base Number Matches	1	-	1	-	1
