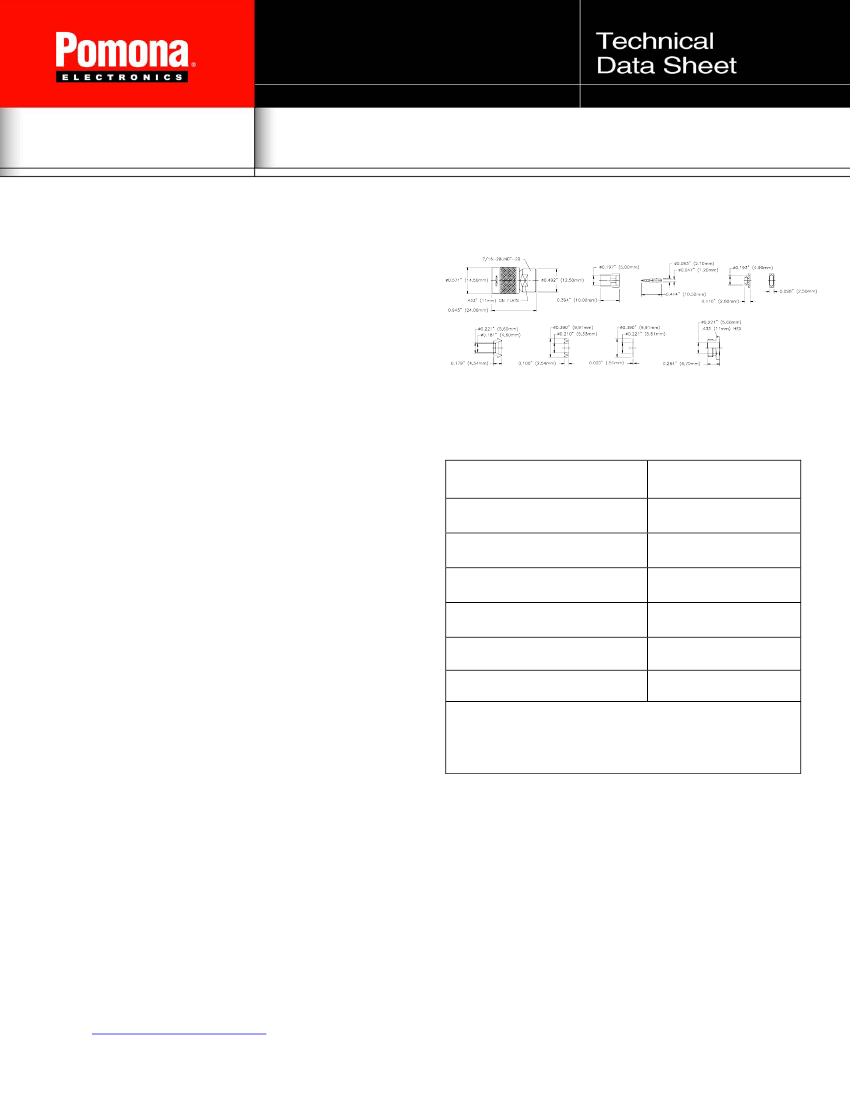

Models 7048
TNC (M) 58,58A,58C,141,141A,55A,142,142A,223,499
Model: 7048 TNC (M)58,
58A, 58C, 141, 141A, 55A, 142,
142A, 223, 499.
Use for your 50
Ω
TNC cable
assembly applications.
Features
•
•
•
•
Designed for common cables (see table on page
2 for cable types and crimp die information)
Precision machined
Gold plated (15 micro–inches) contacts
Insulation material is PTFE (not
delrin)
Model 7048 TNC (M) CAPTIVE
See page 2 for cable assembly instructions.
Specifications
Nominal impedance
Frequency
VSWR
Center / Outer contact
resistance
Number of insertions
Insulation resistance
Dielectric withstand voltage
50
Ω
0-11 GHz
1.30 max. 0-11 GHz
1.5 / 0.2 mΩ
500
5000 MΩ (min)
1500 Vrms
Materials
•
•
•
•
Body is machined brass with tarnish resistant
nickel plating
Male center pin contacts are gold-plated (15
micro-inches) brass
Body is made from precision machined high
quality brass (not die cast)
High quality machined PTFE dielectric
Ratings: Voltage: 500 Vrms
Operating temperature: -85
˚F
to +131
˚F
(-65
˚C
to
+155
˚C)
Max.
Ordering Information
USA:
Sales: 800-490-2361 Technical Support: 800-241-
2060 Fax: 888-403-3360
Europe:
31-(0) 40 2675 150
International:
425-446-5500
e-mail:
technicalsupport@pomonatest.com
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright 2004 9/2004 2398754 D-ENG-N Rev A
Page 1 of 2
Models 7048
TNC (M) 58,58A,58C,141,141A,55A,142,142A,223,499

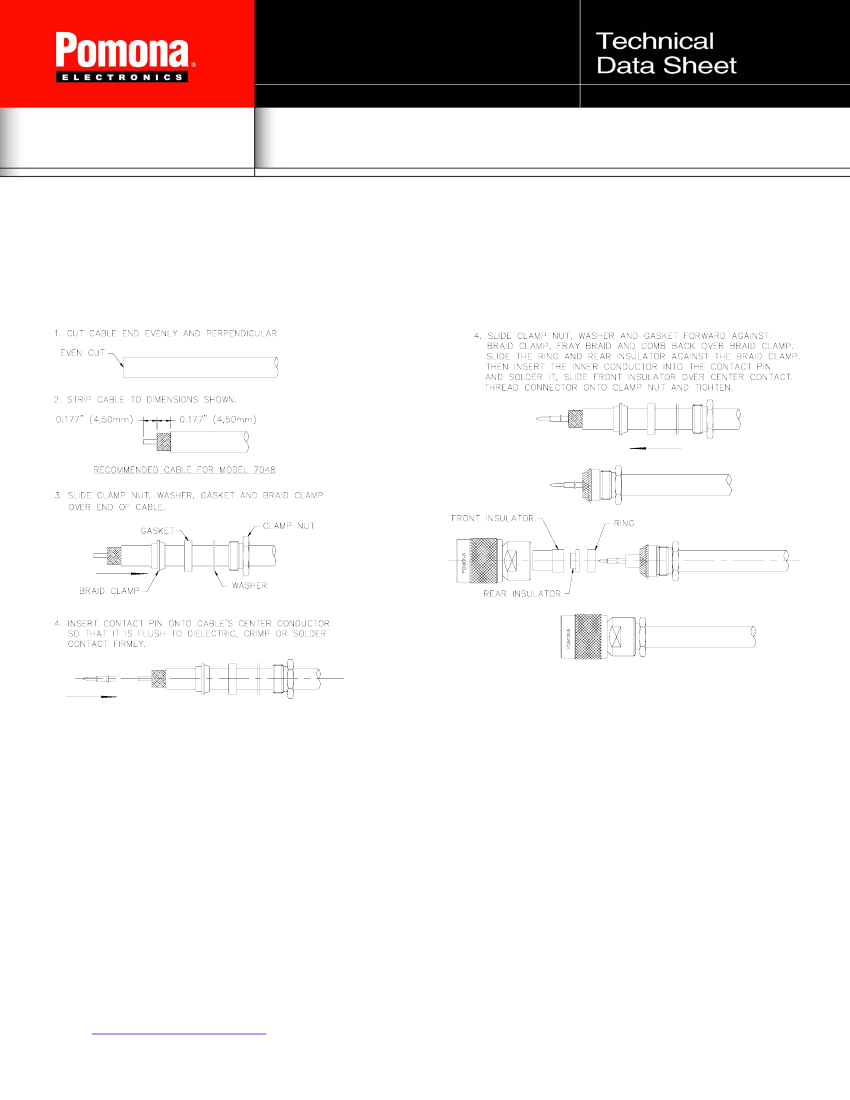

Cable Assembly Instructions
USA:
Sales: 800-490-2361 Technical Support: 800-241-
2060 Fax: 888-403-3360
Europe:
31-(0) 40 2675 150
International:
425-446-5500
e-mail:
technicalsupport@pomonatest.com
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright 2004 9/2004 2398754 D-ENG-N Rev A
Page 2 of 2
