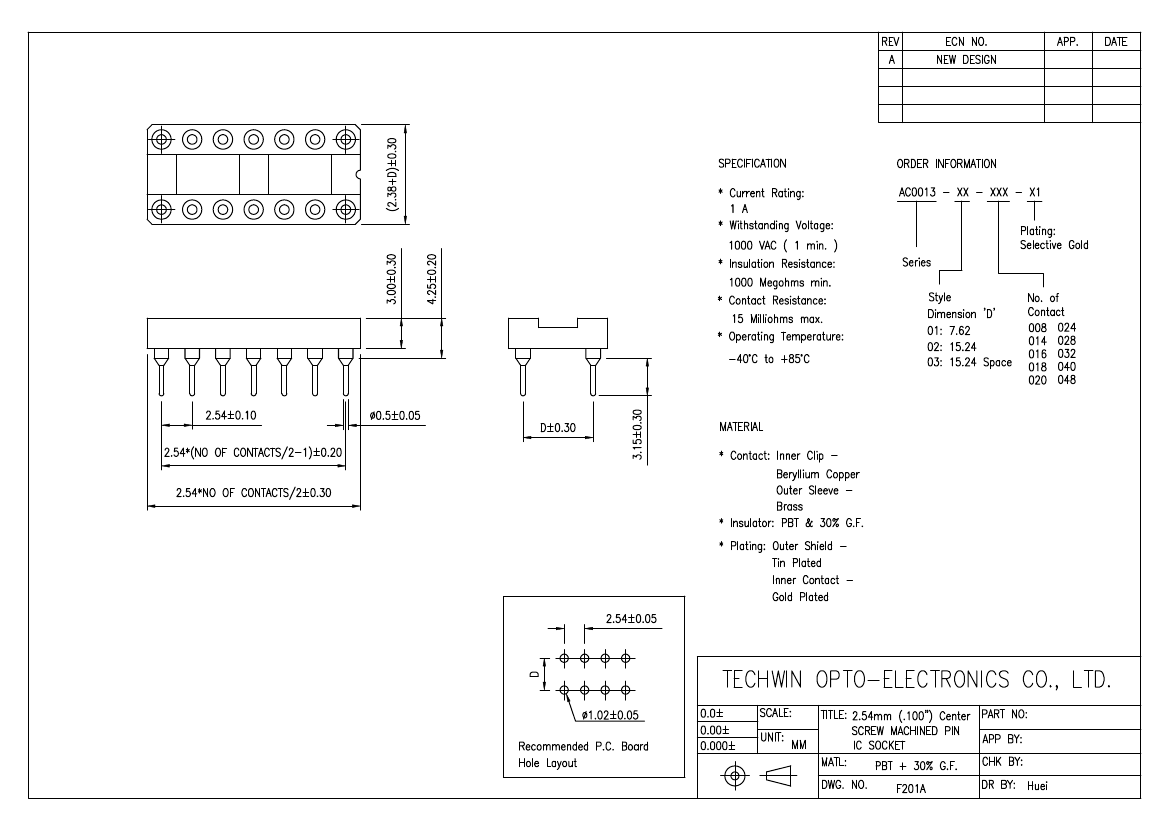

AC0013-01-016-X1 datasheet, PDF

AC0013-01-016-X1: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size41KB，1 Pages; ManufacturerTechwin Opto-Electronics Co., Ltd.

Download Datasheet Parametric View All

AC0013-01-016-X1 Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

Parameter Name	Attribute value
Maker	Techwin Opto-Electronics Co., Ltd.
Reach Compliance Code	unknow
body width	0.394 inch
subject depth	0.167 inch
body length	0.8 inch
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	AC0013
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1
