35857-1849 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 35857-1849

Preview

35857-1849: Description1.00mm (.039") pitch ffc connector, vertical, non-zif, 18 circuits; File Size109KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

35857-1849 Overview

1.00mm (.039") pitch ffc connector, vertical, non-zif, 18 circuits

Preview

Download Datasheet

View All

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0358571849

Active

1.00mm (.039") Pitch FFC Connector, Vertical, Non-ZIF, 18 Circuits, 2.80mm (.110")

Straight PC Tail, Tube Packaging

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

35857

ffc_fpc_throughhole

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black

N/A

Vertical

94V-0

0.205 In

5.20 mm

Phosphor Bronze

Tin

Nylon

Vertical

0.110 In

2.80 mm

None

Tube

0.039 In

1.00 mm

32.00

0.800

32.00

0.80

-20°C to +80°C

Through Hole

FFC/FPC

Search Parts in this Series

35857Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

50V

Material Info

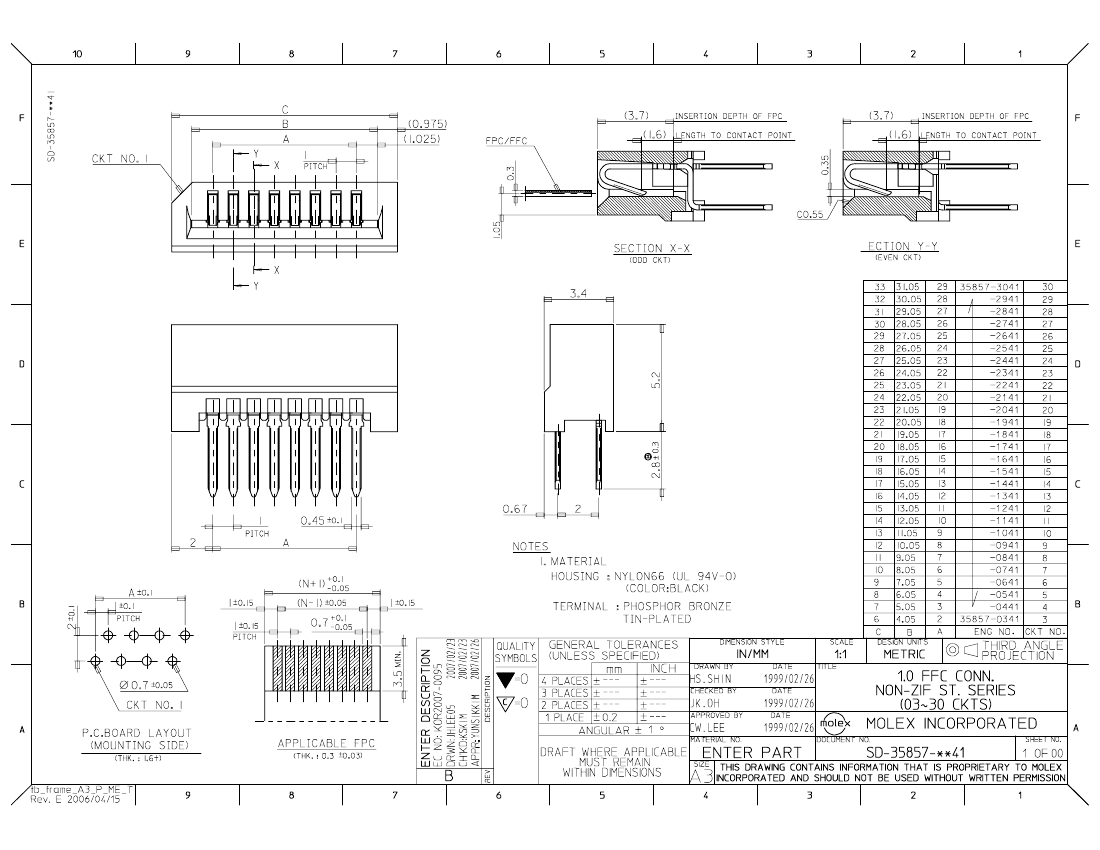

Reference - Drawing Numbers

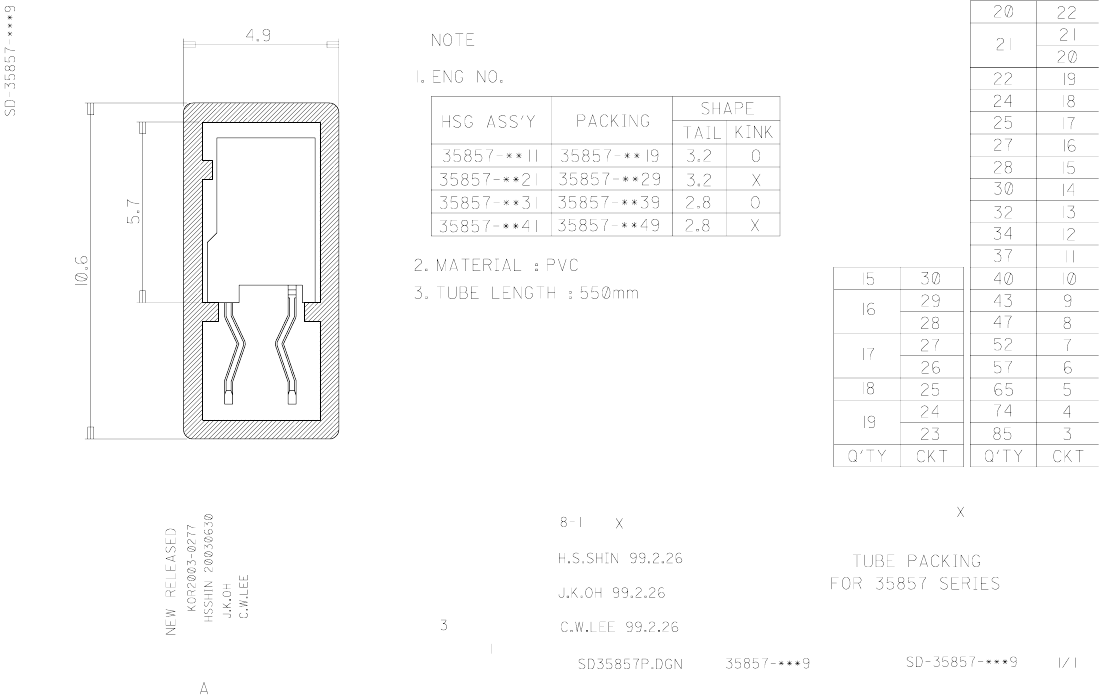

Packaging Specification

Product Specification

PK-35857-001

PS-35857-001
