1D38 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1D38

1D38: Descriptioncap tactile round noble red; CategoryTopical application Mechanical and electrical/engineering/automation; File Size101KB，1 Pages; ManufacturerMEC Switches ( an APEM Group Company ); Websitehttps://www.apem.com/int/; Environmental Compliance

Download Datasheet Parametric View All

1D38 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1D38	-	-	View	Buy Now

1D38 Overview

cap tactile round noble red

1D38 Parametric

Parameter Name	Attribute value
Datasheets
Switches Catalog
Product Photos
1D38
Product Training Modules
Switches
Standard Package	100
Category	Switches
Family	Accessories - Caps
Switch Type	Tactile
Shape	Round
Col	Red, Noble
Illuminati	Non-Illuminated
For Use With/Related Products	Multimec® Series
Mounting Type	Snap Fi
Size	9.60mm Dia x 7.50mm H
Features	-
Dynamic Catalog	Switch Cap Accessories
For Use With	3FTH9RAS-ND - SWITCH TACTILE SPST-NO 0.05A 24V3FTH9-ND - SWITCH TACTILE SPST-NO 0.05A 24V679-2234-ND - SWITCH TACTILE SPST-NO 0.05A 24V679-2227-ND - SWITCH TACTILE SPST-NO 0.05A 24V679-2226-ND - SWITCH TACTILE SPST-NO 0.05A 24V
Other Names	679-2070

Preview

Download Datasheet

View All

multimec

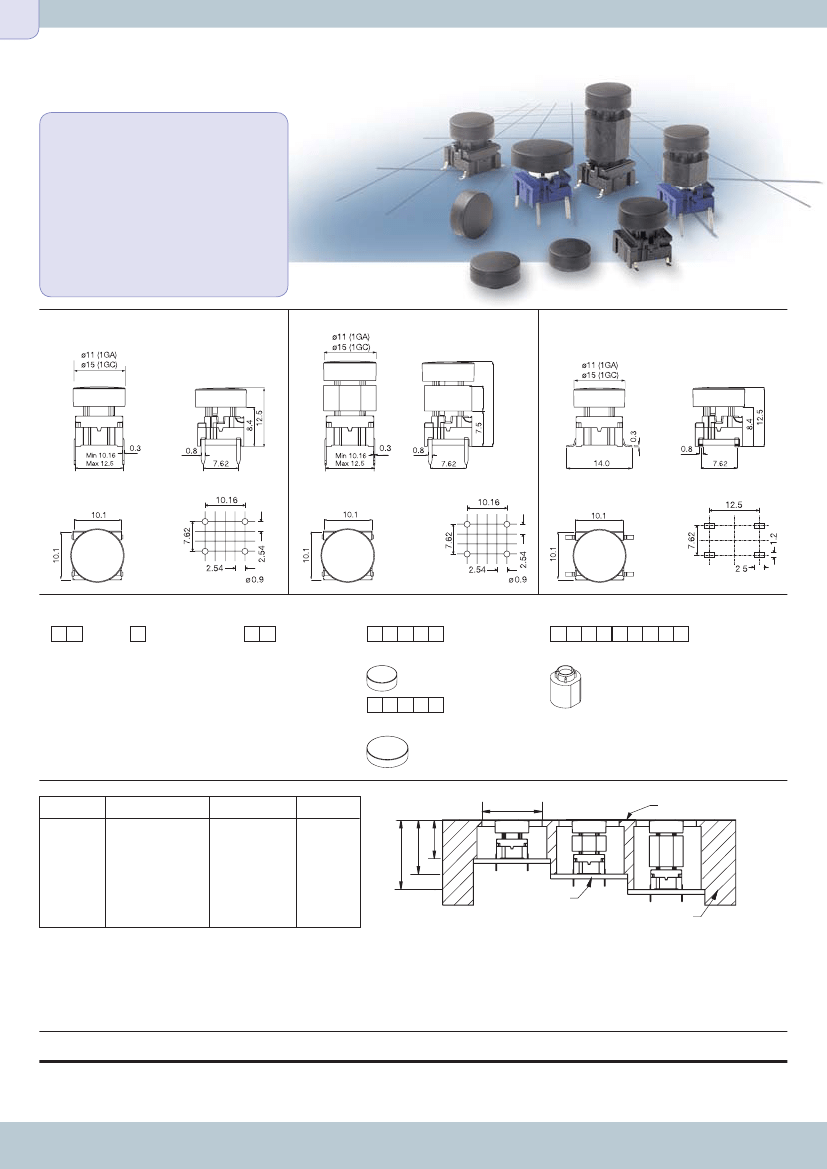

Technical Data

■

through-hole or SMD

50mA/24VDC

single pole/momentary

10.000.000 operations life time

IP67 sealing

temperature range:

low temp: -40/+115°C

high temp: -40/+160°C

3F + 1GA/1GC

Dimensions (through-hole)

Dimensions (w/extender)

Total height (H) = 12.5+2Sxx.x

H=17.5

18.5

19.5

20.5

21.5

22.5

Dimensions (SMD)

PCB layout

Height

2Sxx.x

PCB layout

How to order

3 F

Switch

Mounting

through-hole

surface mount

L 6

low temp.

H 9

high temp.

1 G A 0 9

Cap black

2 S 0 9 -

Extender black

. 0

Height

05.0

06.0

07.0

08.0

09.0

10.0

1 G C 0 9

Cap black

(Optional)

Adds 5-10 mm

to total height.

Keycap

1GA/1GC

Variable Extender H (height) mm

12.5

17.5

18.5

19.5

20.5

21.5

22.5

Example

Foil

2S09-05.0

2S09-06.0

2S09-07.0

2S09-08.0

2S09-09.0

2S09-10.0

PCB

Panel

H = Overall height

Overall heights below 12.5 mm - Please see Multimec

versions 3C and 3E.

All 2S09 extenders are stackable giving the possibility to match most overall heights.

A = We recommend you to allocate enough space for travel of the foil and leave the area free from adhesive.

Switch travel = 1 mm.

H = We recommend you to calculate this dimension from the top of the PCB to the inner top of the panel.

Ordering example:

3FTL6 + 1GA09 or 3FTL6 + 2S09-07.0 + 1GC09

For updates of products and/or changes of specifications please see

www.mec.dk

mec

www.mec.dk
