DATA SHEET
Solid State Relay
OCMOS FET
PS7122-1A,-2A,PS7122L-1A,-2A
6, 8-PIN DIP, 200 V BREAK DOWN VOLTAGE
1-ch, 2-ch Optical Coupled MOS FET
DESCRIPTION
The PS7122-1A, -2A and PS7122L-1A, -2A are solid state relays containing GaAs LEDs on the light emitting side
(input side) and MOS FETs on the output side.
They are suitable for analog signal control because of their low offset and high linearity.
The PS7122L-1A, -2A have a surface mount type lead.
FEATURES
• 1 channel type (1 a output) or 2 channel type (1 a + 1 a output)
• Low LED operating current (I
F
= 2 mA)
• Designed for AC/DC switching line changer
• Small package (6, 8-pin DIP)
• Low offset voltage
• PS7122L-1A, -2A: Surface mount type
• UL approved: File No. E72422 (S)
• BSI approved: No. 8245/8246
• CSA approved: No. CA 101391
APPLICATIONS
• Exchange equipment
• Measurement equipment
• FA/OA equipment
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P11555EJ6V1DS00 (6th edition)
Date Published November 1999 NS CP(K)
Printed in Japan
The mark
•
shows major revised points.
©
1996, 1999
PS7122-1A,-2A,PS7122L-1A,-2A

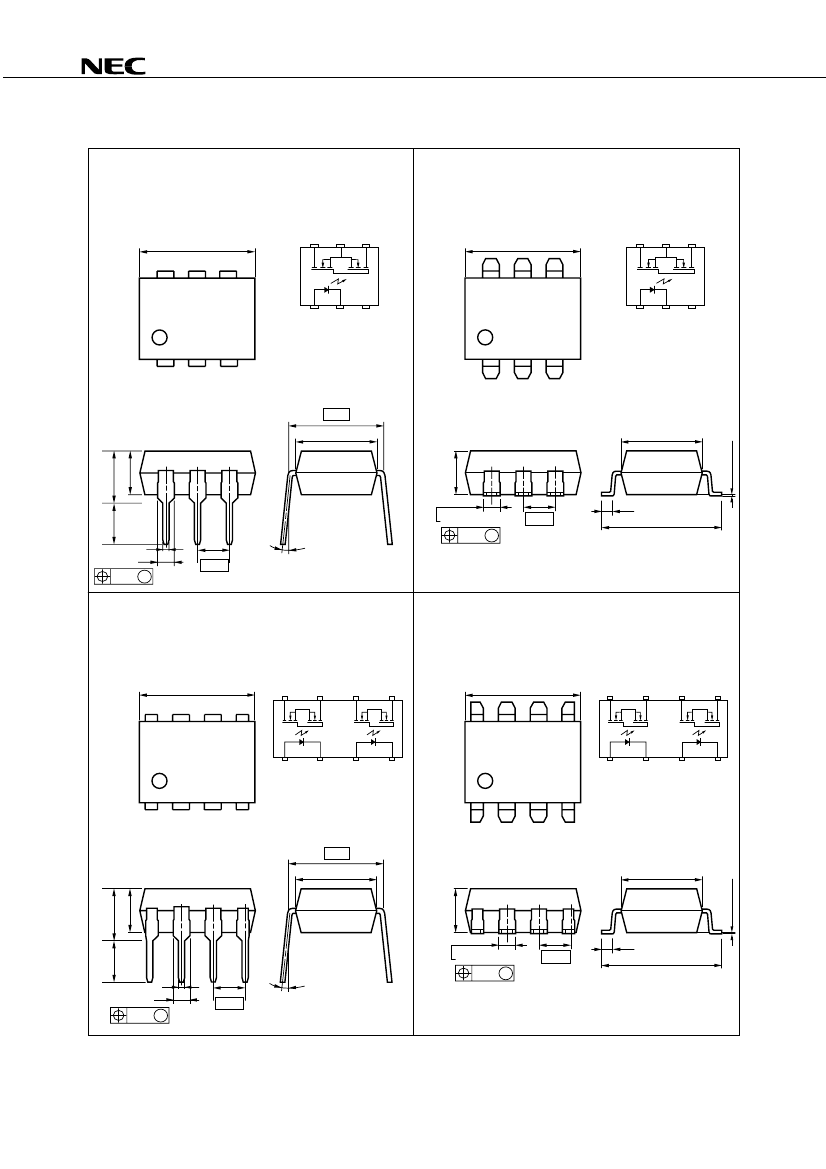

PACKAGE DIMENSIONS (in millimeters)
PS7122-1A
TOP VIEW
9.25±0.5
6
5
4
PS7122L-1A
TOP VIEW
9.25±0.5
6
5
4
1
1.
2.
3.
4.
5.
6.
2
3
1.
2.
3.
4.
5.
6.
1
2
3
LED Anode
LED Cathode
NC
MOS FET Drain
MOS FET Source
MOS FET Drain
7.62
6.5±0.5
LED Anode
LED Cathode
NC
MOS FET Drain
MOS FET Source
MOS FET Drain
6.5±0.5
3.3±0.3 4.15±0.3
3.5±0.3
3.5±0.3
1.34±0.1
0.25 M
0 to 15˚
2.54
2.54
0.9±0.25
9.60±0.4
0.5±0.1
1.34±0.1
0.25 M
PS7122-2A
TOP VIEW
9.25±0.5
8
7
6
5
PS7122L-2A
TOP VIEW
9.25±0.5
8
7
6
5
1
1.
2.
3.
4.
2
3
5.
6.
7.
8.
4
MOS FET
MOS FET
MOS FET
MOS FET
1.
2.
3.
4.
1
2
3
5.
6.
7.
8.
4
MOS FET
MOS FET
MOS FET
MOS FET
LED Anode
LED Cathode
LED Anode
LED Cathode
LED Anode
LED Cathode
LED Anode
LED Cathode
7.62
6.5±0.5
6.5±0.5
3.3±0.3 4.15±0.3
3.5±0.3
3.5±0.3
1.34±0.1
0.25 M
0 to 15˚
2.54
2.54
0.9±0.25
9.60±0.4
0.5±0.1
1.34±0.1
0.25 M
2
Data Sheet P11555EJ6V1DS00
0.10
+0.10
–0.05
0.10
+0.10
–0.05
PS7122-1A,-2A,PS7122L-1A,-2A
ORDERING INFORMATION
Part Number
PS7122-1A
PS7122L-1A
PS7122L-1A-E3
PS7122L-1A-E4
PS7122-2A
PS7122L-2A
PS7122L-2A-E3
PS7122L-2A-E4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 50 pcs
PS7122-2A
PS7122L-2A
Embossed Tape 1 000 pcs/reel
Package
6-pin DIP
Packing Style
Magazine case 50 pcs
Application Part Number
PS7122-1A
PS7122L-1A
*1
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet P11555EJ6V1DS00
3
PS7122-1A,-2A,PS7122L-1A,-2A
ABSOLUTE MAXIMUM RATINGS (T
A
= 25
°
C, unless otherwise specified)
Ratings
Parameter
Symbol
PS7122-1A,
PS7122L-1A
PS7122-2A,
PS7122L-2A
Unit
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation
Peak Forward Current
*1
I
F
V
R
P
D
I
FP
V
L
50
5.0
50
1
200
200
350
500
−
−
400
mA
V
mW/ch
A
V
mA
MOS FET
Break Down Voltage
Continuous
Load Current
*2
Connection A
Connection B
Connection C
I
L
Pulse Load Current
*3
I
LP
mA
(AC/DC Connection)
Power Dissipation
Isolation Voltage
*4
P
D
BV
P
T
T
A
T
stg
560
1 500
610
−40
to +80
375
mW/ch
Vr.m.s.
Total Power Dissipation
Operating Ambient Temperature
Storage Temperature
850
mW
°C
°C
−40
to +100
*1
PW = 100
µ
s, Duty Cycle = 1 %
*2
Conditions: I
F
≥
2 mA. The following types of load connections are available.
1
2
3
1
2
3
1
2
3
1
2
3
6
5
4
6
5
4
6
5
4
6
5
4
I
L
I
L
L
L
I
L
+ I
L
I
L
–
+ V
L
(DC)
+
V
L
(DC)
–
I
L
V
L
(AC/DC)
L
L
+
V
L
(DC)
–
Connection A
I
L
Connection B
Connection C
*3
PW = 100 ms, 1 shot
*4
AC voltage for 1 minute at T
A
= 25
°C,
RH = 60 % between input and output
4
Data Sheet P11555EJ6V1DS00
PS7122-1A,-2A,PS7122L-1A,-2A
RECOMMENDED OPERATING CONDITIONS (T
A
= 25
°
C)
Parameter
LED Operating Current
LED Off Voltage
Symbol
I
F
V
F
MIN.
2
0
TYP.
10
MAX.
20
0.5
Unit
mA
V
ELECTRICAL CHARACTERISTICS (T
A
= 25
°
C)
Parameter
Diode
Forward Voltage
Reverse Current
MOS FET
Off-state Leakage Current
Output Capacitance
Coupled
LED On-state Current
On-state Resistance
Symbol
V
F
I
R
I
Loff
C
out
I
Fon
R
on1
R
on2
Turn-on Time
Turn-off Time
*1
Conditions
I
F
= 10 mA
V
R
= 5 V
V
D
= 200 V
V
D
= 0 V, f = 1 MHz
I
L
= 200 mA
I
F
= 10 mA, I
L
= 10 mA
I
F
= 10 mA, I
L
= 200 mA, t
≤
10 ms
I
F
= 10 mA, V
O
= 5 V, PW
≥
10 ms
MIN.
TYP.
1.2
MAX.
1.4
5.0
Unit
V
µ
A
µ
A
pF/ch
0.03
165
1.0
2.0
3.0
5.0
mA
Ω
t
on
t
off
R
I-O
C
I-O
0.6
0.06
2.0
0.2
ms
*1
Isolation Resistance
Isolation Capacitance
V
I-O
= 1.0 kV
DC
V = 0 V, f = 1 MHz
10
9
Ω
1.1
pF/ch
*1
Test Circuit for Switching Time
I
F
Pulse Input
V
L
Input
50 %
0
V
O
= 5 V
Input monitor
R
in
R
L
V
O
monitor
Output
90 %
10 %
t
on
t
off
Data Sheet P11555EJ6V1DS00
5
Analog electronics
