100W TO247
OBSOLETE
High Power Resistors
MHP 100
(Combined BI & IRC Datasheets)
·
·
·
·
·
·
·
·
·
·
·
·
·
·

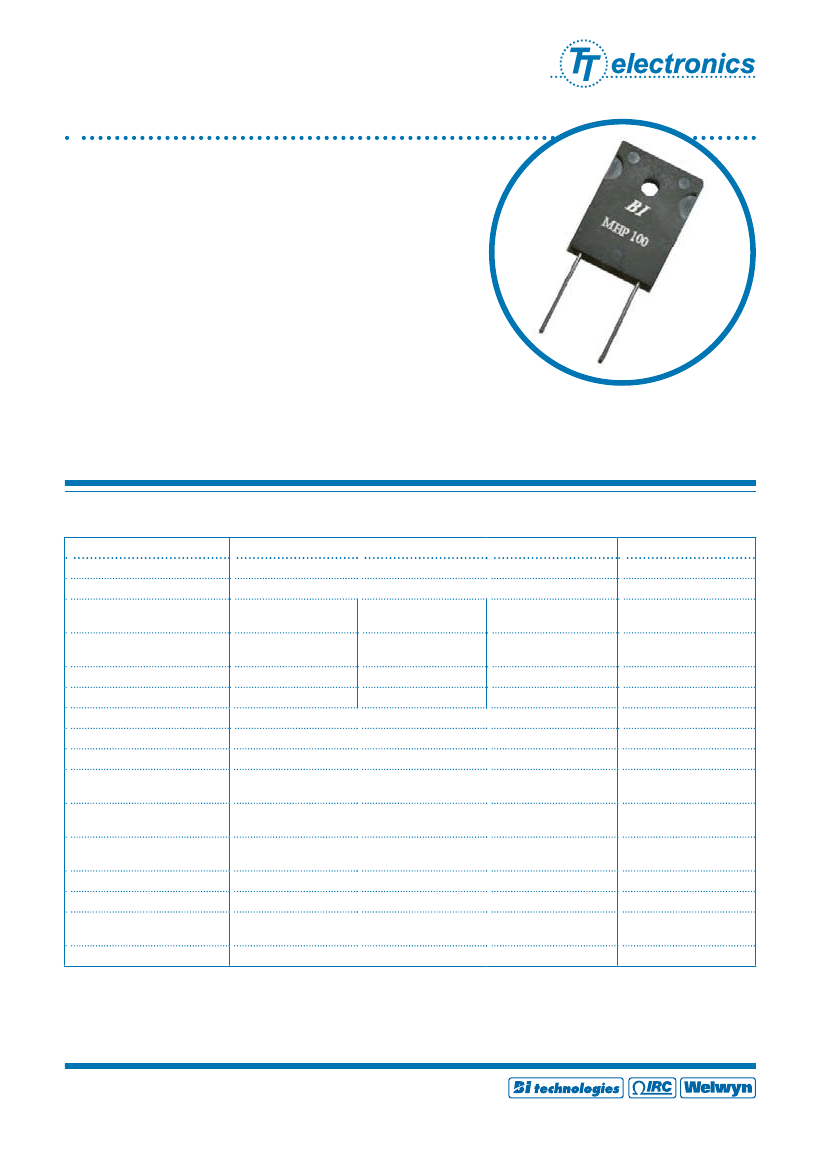

Non-inductive, high power resistor.
Thermally enhanced Industry standard TO-247 package.
Extremely Low thermal resistance, 1.3 °C/W resistor
hot spot to metal tab.
Complete thermal flow design available for easy
implementation.
Superior vibration durability.
Small thin package for high density PCB installation.
RoHS compliant.
Applications
High frequency circuits and wide band / linear amplifiers.
Switch mode and industrial RF power sources.
AC motor control, electronic load and drive circuits.
Automotive.
Industrial PC modules (IPM) and measurement systems.
RF circuit terminations.
Constant current and precision voltage sources
Specifications
Items
Power Rating
Power Rating
Resistance Range
Nominal Resistance Series
TCR
Tolerance
Operation Temp. Range
Rated Voltage (Max).
Dielectric Withstand Voltage
Load Life
Humidity
Temperature Cycle
Soldering Heat (Max)
Solderability
Insulation Resistance
Vibration
0.01-0.09
E6
250 ppm/°C
5%
Specification
100 Watts
2.0 Watts
0.1-9.1
E12
100 ppm/°C
5% and 1%
-55 - +155 °C
700V or (P*R)
2500 Volt
R +/- (1.0 %+0.05
R +/- (1.0 %+0.05
R +/- (0.25 %+0.05
R +/- (0.25 %+0.05
Min 95% coverage
Over 1000 M
R +/- (0.25 %+0.05
)
)
)
)
)
60 seconds.
25°C, 90 min. ON, 30
min.OFF, 1000 hours.
40°C, 90-95% RH, DC
0.1W, 1000 hours.
-55°C, 30 min.,+155°C
30min., 5cycles.
250+/-5°C, 3 seconds,
230+/-5°C, 3 seconds.
Between terminals and
metal back plate.
10-220
E24
50 ppm/°C
1%
Conditions
@ Tab Temp < 25°C
Free air.
Extended resistance range
to 51K avail.
2.0 and 5.0
available.
also
For -55 to +155°C
Note:
1. Electrically isolated metal tab.
2. Recommend the use of thermal grease between metal tab and heat sink.
3. Thermal design should account for a thermal resistance between resistor and tab of 1.3°C/W and a maximum resistor temperature of 155°C.
4. Resistances greater than 220 are available, please call factory.
5. For resistances from 220 to 51 K the power rating shall be restricted to 50W.
6. Current rating: 25A maximum.
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
04.12
100W TO247 High Power Resistors
MHP 100
OBSOLETE

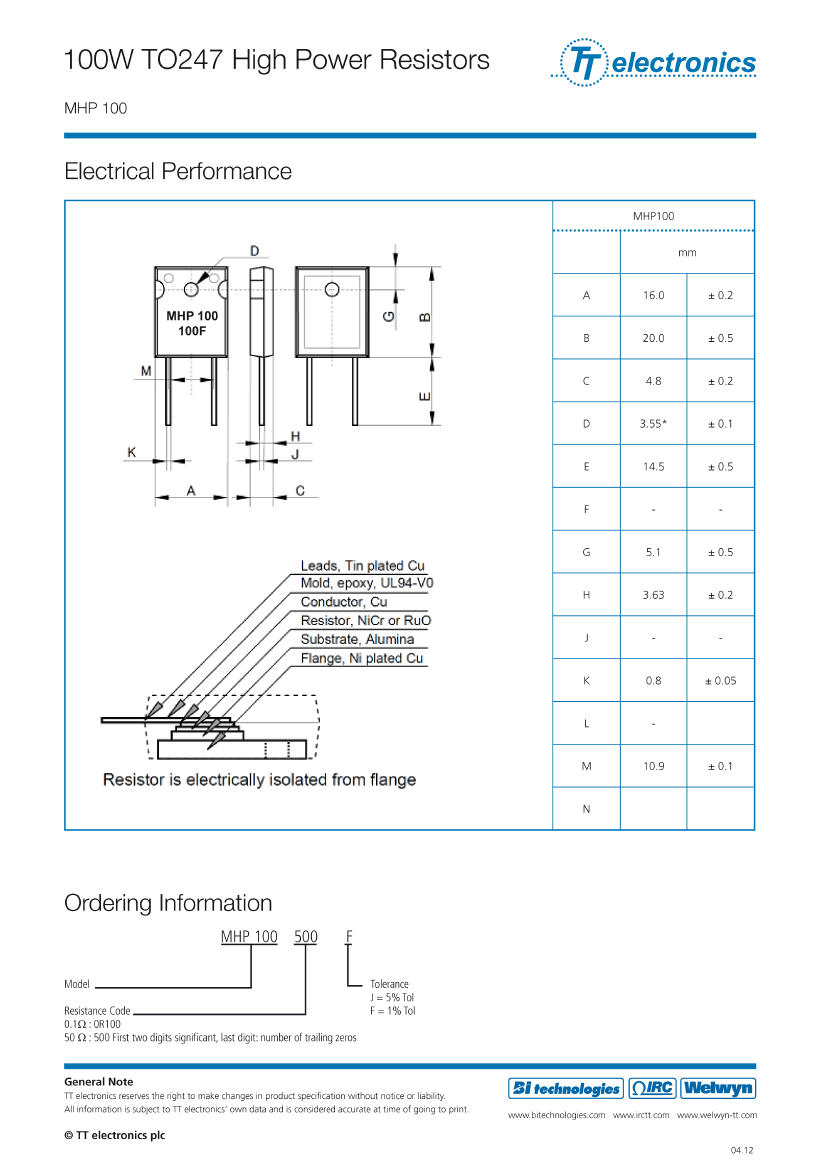

Electrical Performance
Derating Curve
Power Rating (W)
Temperature Rise
Temperature Rise ( C)
120
MHP100 500 F
100
80
60
40
20
+25 C
100
.
80
60
40
20
+155 C
0
200
0
20
40
60
Power (Watts)
80
100
0
-50
0
50
100
150
Flange Temperature ( C)
Pulse Energy Durability
Pulse peak power (W)
100K
Tentative continuous-pulse power allowance at duty 0.01
Load life test will be necessary in actual equipment.
Because curve will be changed by resistance, repetition,
duty and operating temperature.
Frequency Characteristics
MHP100 100F
Impedance (ohm)
1K
MHP100 1K0 F
100
10K
1K
MHP100 101 F
10
1350W
100W
100
MHP100 100 F
10
10n
100n 1 u
10u
100u
1m 10m 100m
Pulse width (seconds)
1
10
100
1
10K
100K
1M
10M
Frequency(Hz)
100M
1G
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
04.12
MHP TO-247 Series
Power Resistor
OBSOLETE
MHP TO-247 Series
·
·
·
·
·
·
·
TO-247 housing
Low inductance and capacitance for
high frequency circuits
Available in 100W or 140W
High stability film resistance elements
RoHS compliant terminations
Insulated metal back plate
Approved to DSCC drawing 07019

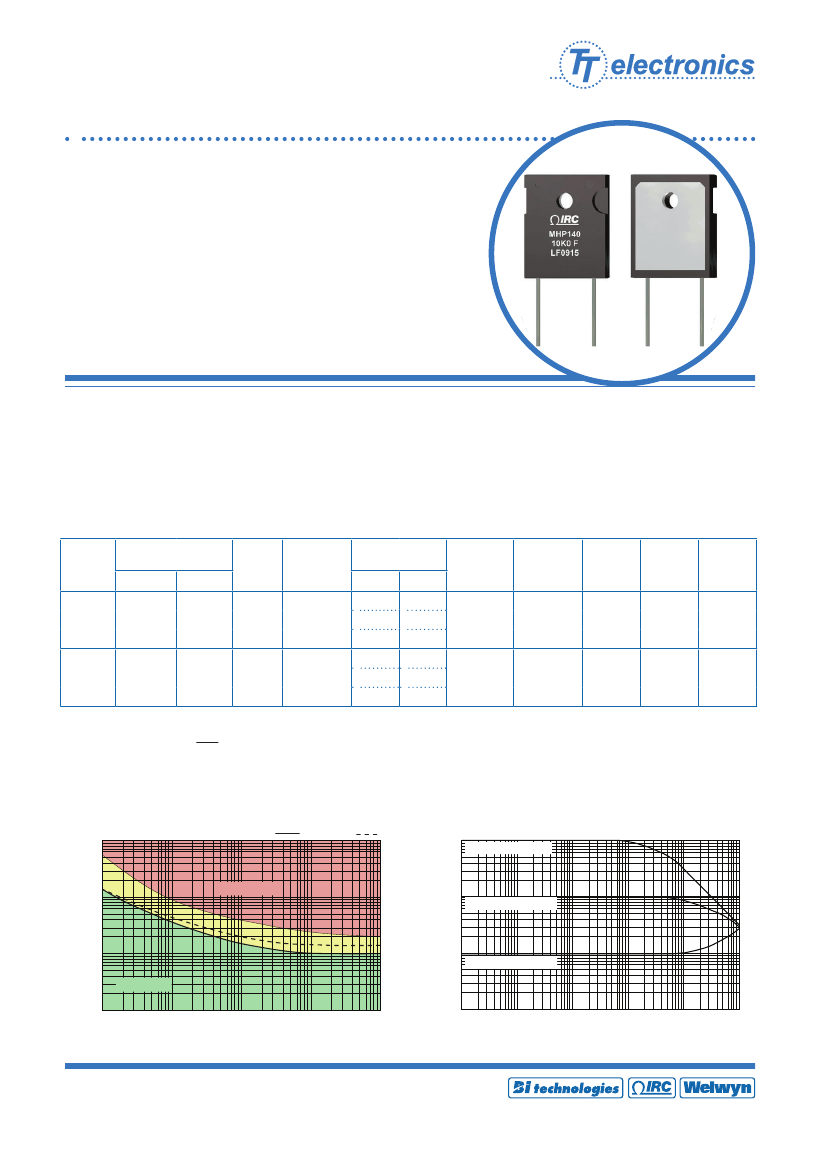

IRC’s MHP series resistors satisfy demanding applications for accurate
and stable power resistors housed in the convenient TO-247 case. The
resistance element is isolated from the mounting tab by an alumina ceramic layer, providing very low thermal
resistance and ensuring high insulation resistance between terminals and metal back plate. The non-inductive
design makes these products especially useful in high frequency and high speed pulse applications.
Electrical Data
Type
Power Rating
1
Heatsink
2
Free Air
3
Voltage
Rating
4
Thermal
Resistance
Resistance
Range
Min
0.01
MHP100
100W
3W
700V
1.3°C/W
0.1
10
0.01
MHP140
140W
3W
700 V
0.9°C/W
0.1
10
Max
0.09
9.1
51K
0.09
9.1
51K
±1%, ±5%
±1%, ±5%
Tolerances
Nominal
Resistance
Series
5
E24
Includes
2.5 & 5.0
multiplier
E24
Includes
2.5 & 5.0
multiplier
Typ. TCR
(ppm/°C)
Induc-
tance
Capaci-
tance
See Chart
<12nH
<3pF
See Chart
<13nH
<4pF
3
Contact factory for availability of resistance or tolerance
values outside this range
Pulse Energy Durability
10K
Frequency Characteristics
1K
MHP100/140LF 1K0 F
MHP100
MHP140
Pulse Peak (Watts)
1K
Damage Level
Impedance (ohms)
100
MHP100/140LF 100R F
100
Safety Zone
10
10µ
10
MHP100/140LF 10R0 F
1
100µ
1m
10m
100m
10K
100K
1M
10M
100M
1G
Pulse Width (seconds)
Frequency(Hz)
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
11.13
MHP TO-247 Series
Power Resistor
MHP TO-247 Series
OBSOLETE
C
L
Physical Data
C
L

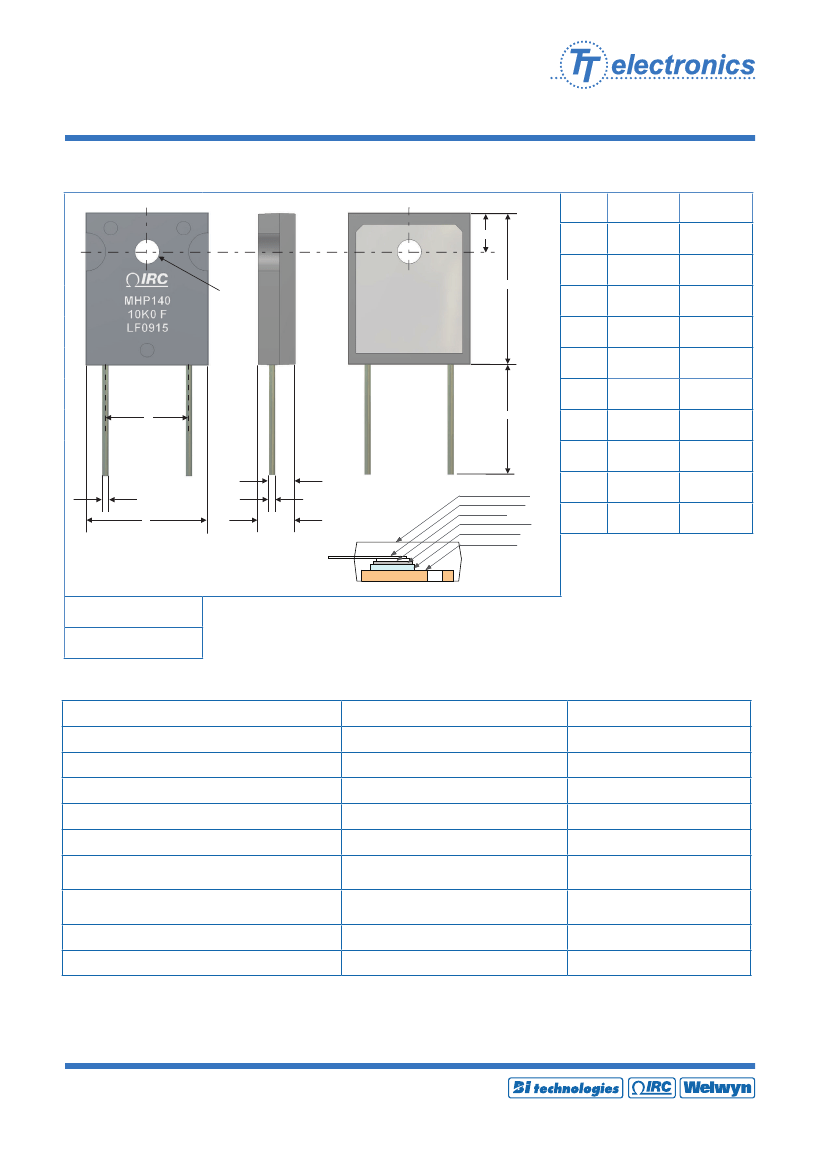

Note: Metal tab is electrically isolated.
Dim
F
In (nom)
0.630
0.787
0.189
0.140
0.571
0.201
0.143
0.032
0.032
0.429
mm
16.0 ±0.2
20.0 ±0.5
4.8 ±0.2
3.55 ±0.1
14.5 ±0.5
5.1 ±0.5
3.63 ±0.2
0.8 ±0.05
0.8 ±0.05
10.9 ±0.1
A
B
C
L
ØD
B
C
ØD
E
F
K
E
G
H
G
Case, Epoxy UL94-V0
Leads, Sn Plated Cu
Conductor, Cu
Resistor, Ni-Cr or RuO
Substrate, Alumina
Tab, Ni Plated Cu
J
K
H
A
J
C
Insulated Between Tab and Resistor
Lead Material
Tab Material
Tin Plated Copper
Nickel Plated Copper
Environmental Data
Test
Thermal Shock
Moisture Resistance
Vibration
Load Life
Resistance to Solder Heat
Dielectric Withstanding Voltage
Insulation Resistance (between terminal and
tab)
Solderability
Operating Temperature Range
*
During soldering, the soldering temperature profile must not cause the metal tab of this device to exceed 220°C.
Method
MIL-STD-202 Method 107 Condition F
MIL-STD-202 Method 106
MIL-STD-202 Method 204 Condition D
MIL-STD-202 Method 108 1,000 Hours
MIL-STD-202 Method 210 Condition B
MIL-STD-202 Method 301
MIL-STD-202 Method 302
230 ± 5°C, 3sec.
Specification - Performance
±0.30% + 50m
±1.0% + 50m
±0.25% + 50m
±1.0% + 50m
±0.25% + 50m
2200 volts DC or 2500 volts AC;
60 seconds
>1000M >
>75% coverage
-55°C to +155°C
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
11.13
