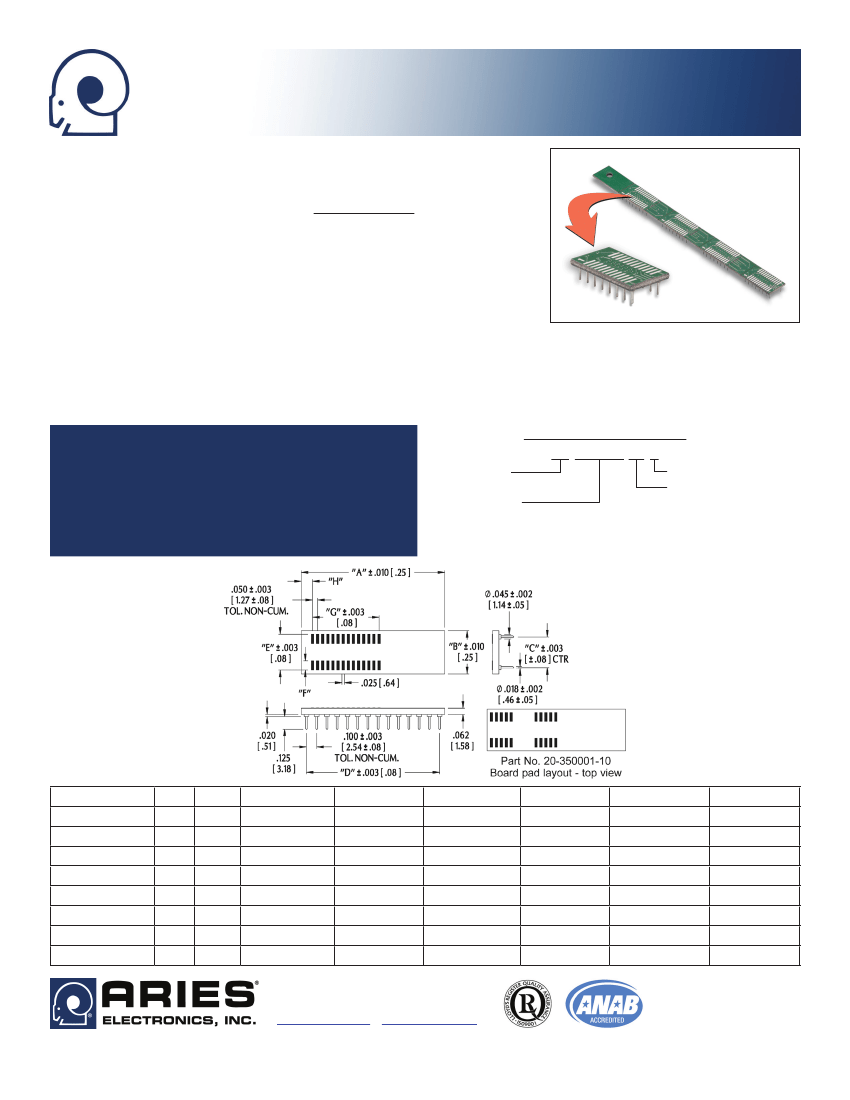

Series 350000
SOIC and SOJ-to-DIP Adapter
FEATURES
• A cost-effective means of upgrading to SOJ or SOIC without changing your PCB
layout
• Available on 0.300 [7.62] centers. Consult
Data Sheet 18011
for adaptors on 0.400
[10.16] or 0.600 [15.24] centers
GENERAL SPECIFICATIONS
• BOARD MATERIAL: 0.062 [1.58] thick FR-4 with 1-oz. Cu traces, both sides
• PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
• PIN PLATING: 200μ [5.08μ] min. Sn per ASTM B 545 Type-1
or
Sn/Pb 93/7 per
ASTM B 545 over 100μ [2.54μ] Ni per SAE-AMS-QQ-N-290
• OPERATING TEMPERATURE: 221°F [105°C]
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = NO. OF PINS PER ROW x 0.100 [2.54]
“D” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
ORDERING INFORMATION
XX-350000-1X-P
Pins
(see Table)
Series
Optional Panelized Form
Pin Plating
0 = Sn/Pb
1 = Au/Ni
P/N
08-350000-1X
14-350000-1X
16-350000-1X
18-350000-1X
20-350000-1X
24-350000-1X
20-350001-1X
28-350002-1X
Pins
8
14
16
18
20
24
20
28
Type
SOIC
SOIC
SOIC
SOIC
SOIC
SOIC
SOJ
SOIC
Dim. “B”
0.460 [11.68]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.420 [10.67]
0.400 [10.16]
Centers “C”
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
Dim. “E”
0.455 [11.56]
0.420 [10.67]
0.420 [10.67]
0.420 [10.67]
0.420 [10.67]
0.420 [10.67]
0.350 [8.89]
0.350 [8.89]
Dim. “F”
0.155 [3.94]
0.138 [3.51]
0.138 [3.51]
0.138 [3.51]
0.138 [3.51]
0.138 [3.51]
0.090 [2.29]
0.090 [2.29]
Dim. “G”
0.150 [3.81]
0.300 [7.62]
0.350 [8.89]
0.400 [10.16]
0.450 [11.43]
0.550 [13.97]
0.600 [15.24]
0.650 [16.51]
Dim. “H”
0.121 [3.07]
0.180 [4.57]
0.180 [4.57]
0.180 [4.57]
0.180 [4.57]
0.180 [4.57]
0.060 [1.52]
0.375 [9.53]
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18010
Rev. AB
