2020 Series
Directional Couplers Mini, Octave Bandwidth
Rev. V4
Features
•
•
•
•
Smallest and Lightest Couplers Available
0.5 through 18 GHz, including Wideband Units
High Directivity - Low VSWR
Meets MIL-E-5400 Environments

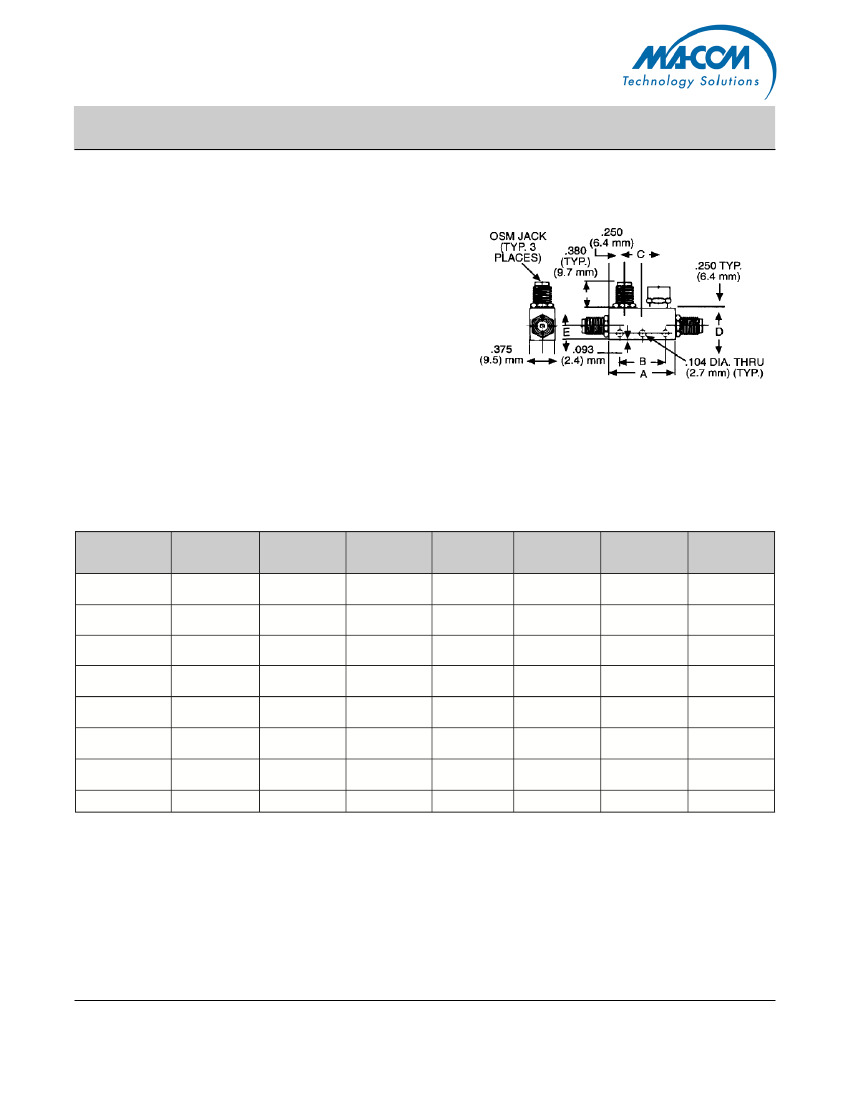

Outline Drawing
Description
These miniature couplers are designed to provide
sampling of the RF Power propagating in one
direction on a transmission line.
Note: All dimensions are ± .020, except mounting hole
diameters (± .005) and mounting hole location (± .010).
Mechanical Specifications
Case Style
1
2
3
4
5
6
7*
8
A
Inch (mm)
1.00 (25.4)
1.00 (25.4)
1.16 (29.4)
1.16 (29.4)
1.78 (45.2)
1.78 (45.2)
3.00 (76.2)
1.00 (25.4)
B
Inch (mm)
N/A
N/A
0.34 (8.7)
0.34 (8.7)
0.94 (23.8)
0.94 (23.8)
1.00 (25.4)
N/A
C
Inch (mm)
0.50 (12.7)
0.50 (12.7)
0.66 (16.7)
0.66 (16.7)
1.28 (32.5)
1.28 (32.5)
2.50 (64.5)
0.50 (12.7)
D
Inch (mm)
0.55 (13.9)
0.50 (12.7)
0.50 (12.7)
0.55 (13.9)
0.50 (12.7)
0.55 (13.9)
0.75 (19.1)
0.63 (15.9)
E
Inch (mm)
0.22 (5.6)
0.22 (5.6)
0.22 (5.6)
0.22 (5.6)
0.22 (5.6)
0.22 (5.6)
0.31 (7.9)
0.22 (5.6)
Weight
oz
0.62
0.60
0.64
0.67
0.82
0.87
1.50
0.67
Weight
g
17.6
17.0
18.2
19.0
23.2
23.3
43.0
19.0
* Case Style 7 has four mounting holes located symmetrically to the two shown dotted in figure.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
2020 Series
Directional Couplers Mini, Octave Bandwidth
Rev. V4
Specifications
VSWR Secondary Line (Max)
Input Power Avg. Refl. (W)
Coupling
(Include. Freq. Sens.(dB)
VSWR Primary Line (Max)
Insertion Loss Max (dB)
Avg. In. Input Power (W)
Power (Input) Pk. (kW)
Freq. Sensitivity (dB)
Directivity Min (dB)
Freq. Range (GHz)
M/A-COM
MIL-C-15370/9
P/N
2
MIL Dash No.
Case Style
2020-6600-06
2020-6601-10
2020-6602-20
2020-6603-30
2020-6604-06
2020-6605-10
2020-6606-20
2020-6607-30
2020-6608-06
2020-6609-10
2020-6610-20
2020-6611-30
2020-6612-06
2020-6613-10
2020-6614-20
2020-6615-30
2020-6616-06
2020-6617-10
2020-6618-20
2020-6619-30
2020-6620-06
2020-6621-10
2020-6622-20
2020-6623-30
2020-6624-06
2020-6625-10
2020-6626-20
2020-6627-30
2020-6628-06
2020-6629-10
2020-6630-20
2020-6631-30
1. 12 dB from 12.4 to 18.0 GHz
2. Mil spec couplers are offered as commercial equivalents only.
Part
Number
7
7
7
7
5
5
5
6
3
3
3
4
2
2
2
1
2
2
2
1
2
1
1
1
2
1
1
8
2
1
1
8
0.5-1.0
6 ± 1.0
10 ± 1.0
20 ± 1.0
30 ± 1.0
6 ± 1.0
10 ± 1.0
20 ± 1.0
30 ± 1.0
6 ± 1.0
10 ± 1.0
20 ± 1.0
30 ± 1.0
6 ± 1.0
10 ± 1.0
20 ± 1.0
30 ± 1.0
6 ± 0.75
10 ± 0.75
20 ± 0.75
30 ± 0.75
6 ± 1.0
10 ± 0.75
20 ± 0.75
30 ± 1.0
6 ± 1.0
10 ± 1.0
20 ± 1.0
30 ± 1.0
6 ± 0.75
10 ± 0.75
20 ± 0.75
30 ± 0.75
±0.60
±0.75
±0.75
±0.75
±0.60
±0.75
±0.75
±0.75
±0.60
±0.75
±0.75
±0.75
±0.60
±0.75
±0.75
±0.75
±0.50
±0.50
±0.50
±0.50
±0.50
±0.40
±0.50
±0.50
±0.50
±0.50
±0.75
±0.75
±0.40
±0.40
±0.50
±0.50
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.40
0.40
0.30
0.30
0.60
0.40
0.50
0.50
0.60
0.40
0.50
0.50
25
25
25
20
25
25
25
25
22
22
22
22
20
20
20
20
22
20
20
20
15
20
18
17
15
20
15
1
15
1
15
20
15
12
1.10
1.10
1.10
1.20
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.35
1.30
1.25
1.35
1.35
1.30
1.45
1.45
1.40
1.30
1.45
1.45
1.10
1.10
1.10
1.20
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.15
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.35
1.35
1.25
1.35
1.35
1.40
1.45
1.45
1.40
1.40
1.45
1.45
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
4
10
50
50
4
10
50
50
4
10
50
50
4
10
50
50
4
10
50
50
4
10
50
50
4
10
50
50
4
10
50
50
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
2
2
2
2
—
—
—
—
-100
-200
-300
-400
-500
-600
-700
-800
—
—
—
—
-900
-100
-110
—
-120
-130
-140
-180
—
—
—
—
—
—
-17
—
—
—
—
—
2020-4015-06
2020-4015-10
2020-4015-20
2020-4015-30
2020-4016-06
2020-4016-10
2020-4016-20
2020-4016-30
—
—
—
—
2020-4017-06
2020-4017-10
2020-4017-20
—
2020-4018-06
2020-4018-10
2020-4018-20
2020-4018-30
—
—
—
—
—
—
2020-4114-20
—
1.0-2.0
2.0-4.0
2.6-5.2
4.0-8.0
7.0-12.4
7.0-18.0
12.4-18.0
2
