EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-020-065
REV:
2.1
3mm Round Standard LEDs, T-1
MODEL NO :
█
Features :
●
●
●
●
204GT
ECN :
█
Package Dimensions:
Page:
1/4
High luminous power.
Can be driven at low current.
2.54mm lead spacing.
Available on tape and reel.
█
Descriptions :
●
The series is specially designed for
applications require higher
brightness than that achievable with
standard lamp.
The LED lamps are available with
different colors,intensities,
epoxy colors, etc.
●
█
Applications :
●
●
●
●
█
Notes :
1.All dimensions are in millimeters.
2.An epoxy meniscus may extend about
1.5mm(0.059") down to the lead.
TV Set
Monitor
Telephone
Computer
PART NO
Chip
Material
Emitted Color
Green
Lens Color
204GT
GaP
Green Trans
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL : 886-2-2267-2000,2267-9936
FAX : 886-2-2267-6244,22676189,22676306
http://www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-020-065
REV:
2.1
3mm Round Standard LEDs, T-1
MODEL NO :
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
204GT
Symbol
If
Topr
Tstg
Tsol
Pd
If(Peak)
Vr
Rating
30
-40 to +85
-40 to +100
ECN :
Page:
2/4
█
Absolute Maximum Ratings at Ta = 25
℃
Unit
mA
℃
℃
℃
mW
mA
V
260 ± 5
Power Dissipation
Peak Forward
Current(Duty 1/10 @
1KHZ)
100
160
5
Reverse Voltage
█
Electronic Optical Characteristics :
Parameter
Luminous intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Symbol
Iv
2θ1/2
λp
λd
△λ
Vf
Ir
MIN.
25
------
TYP.
40
30
565
570
30
2.1
----
MAX.
----
----
----
----
----
2.4
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
If=10mA
If=20mA
If=20mA
If=20mA
If=20mA
If=20mA
Vr=5V
----
-----
----
1.7
----
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-020-065
REV:
2.1
3mm Round Standard LEDs, T-1
MODEL NO
204GT
ECN :
Page:
3/4
█

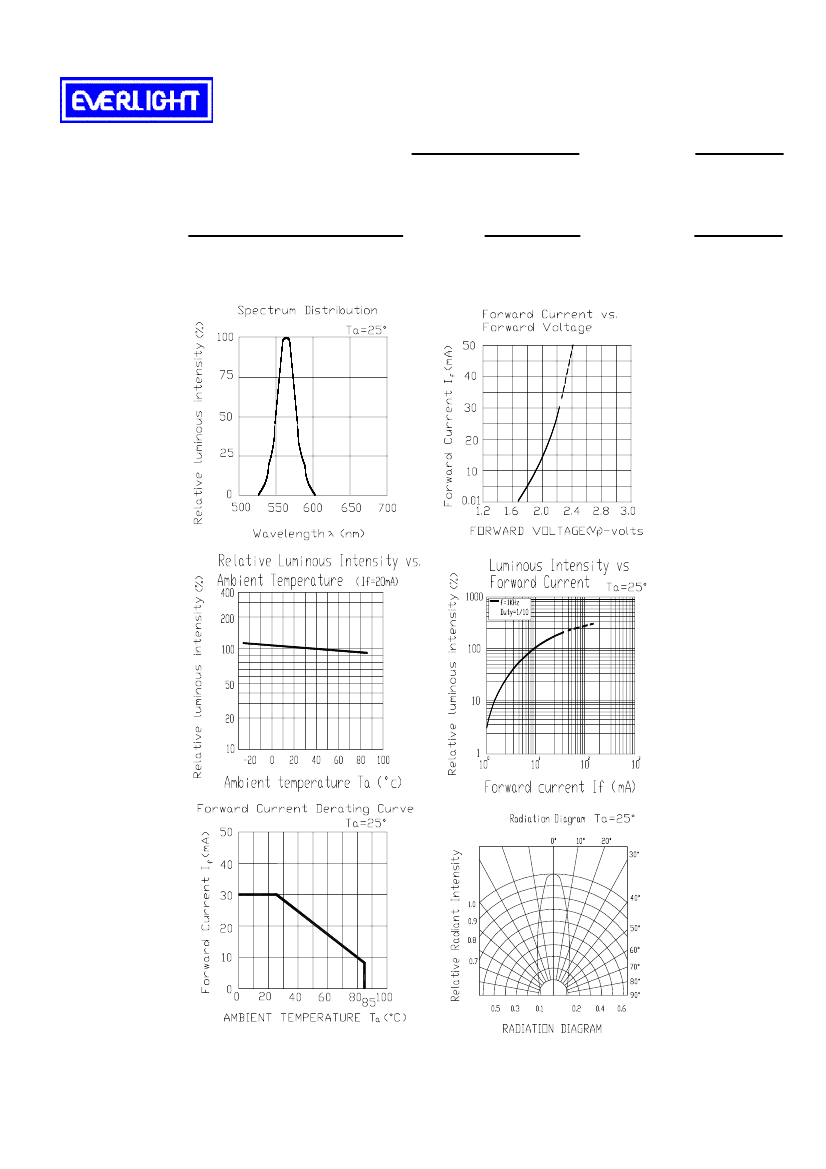

Typical Electro-Optical Characteristic Curves
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DLE-020-065
REV:
2.1
3mm Round Standard LEDs, T-1
MODEL NO
204GT
ECN :
Page:
4/4
█
Reliability test items and conditions
NO
1
Item
Soldering Heat
Test Conditions
TEMP : 260℃ ± 5
℃
H : +85℃ 30min
∫
5 min
L : -55℃ 30min
H : +100℃ 5min
∫
10 sec
L : -10℃ 5min
TEMP : 100℃
Test
Hours/Cycle
Sample Size
76 Pcs
Ac/Re
0/1
5 SEC
2
Temperature Cycle
50 CYCLE
76 Pcs
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature /
High Humidity
50 CYCLE
76 Pcs
0/1
4
1000 HRS
76 Pcs
0/1
5
TEMP : -55℃
1000 HRS
76 Pcs
0/1
6
If = 20 mA
1000 HRS
76 Pcs
0/1
7
85℃/85% RH
1000 HRS
76 Pcs
0/1
