2SC4942-AZ: DescriptionPower Bipolar Transistor, 1A I(C), 600V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin; CategoryDiscrete semiconductor The transistor; File Size116KB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

2SC4942-AZ Overview

Power Bipolar Transistor, 1A I(C), 600V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin

2SC4942-AZ Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	600 V
Configuration	SINGLE
Minimum DC current gain (hFE)	5
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

DATA SHEET

SILICON TRANSISTORS

2SC4942

NPN SILICON TRIPLE DIFFUSED TRANSISTOR

FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING

The 2SC4942 is a transistor developed for high-speed high-

voltage switching. This transistor is ideal for use in switching

devices such as switching regulators and DC/DC converters.

PACKAGE DRAWING (UNIT: mm)

FEATURES

• New package with dimensions in between those of small

signal and power signal package

• High voltage

• Fast switching speed

• Complementary transistor with the 2SA1871

QUALITY GRADES

• Standard

Please refer to “Quality Grades on NEC Semiconductor

Devices” (Document No. C11531E) published by NEC

Corporation to know the specification of quality grade on the

devices and its recommended applications.

Electrode connection

1. Emitter

2. Collector

3. Base

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)

Parameter

Collector to base voltage

Collector to emitter voltage

Emitter to base voltage

Collector current (DC)

Collector current (pulse)

Total power dissipation

Junction temperature

Storage temperature

Symbol

CBO

CEO

EBO

D(DC)

D(pulse)

stg

≤

10 ms, duty cycle

≤

50 %

7.5 cm

0.7 mm ceramic board mounted

Conditions

Ratings

600

7.0

1.0

2.0

150

−55

to +150

Unit

°C

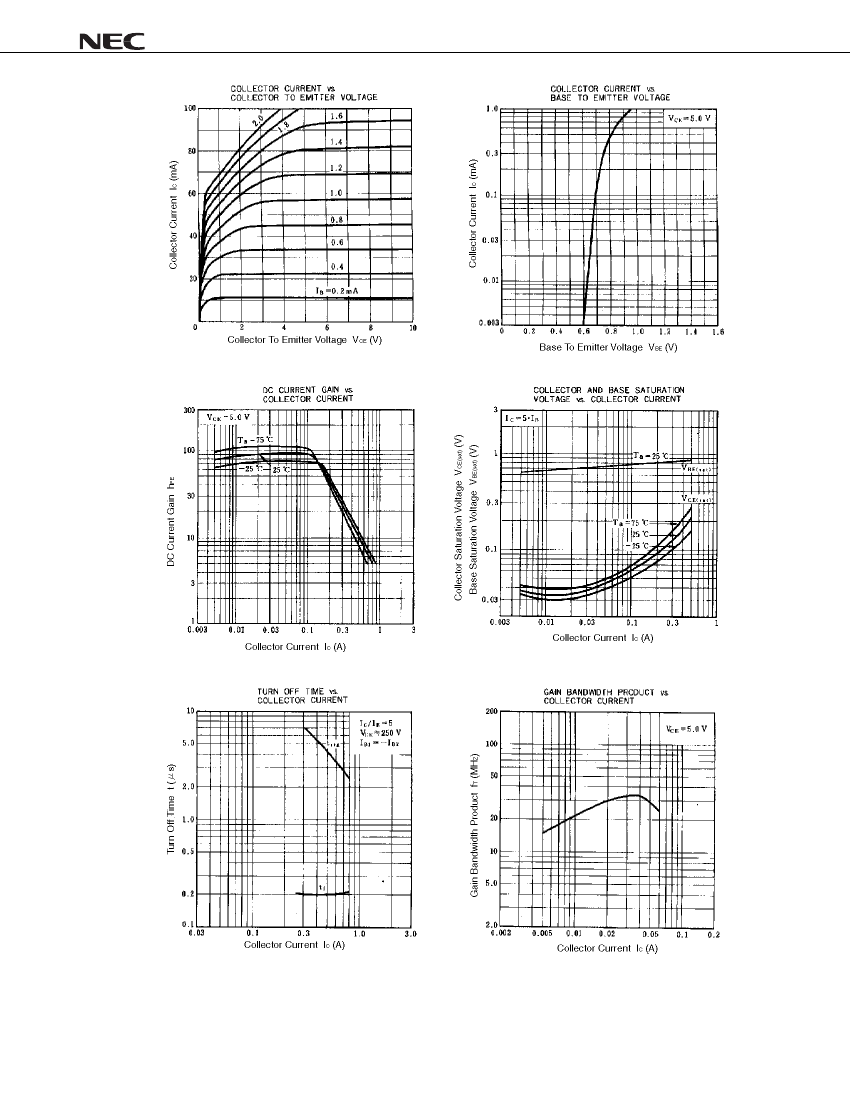

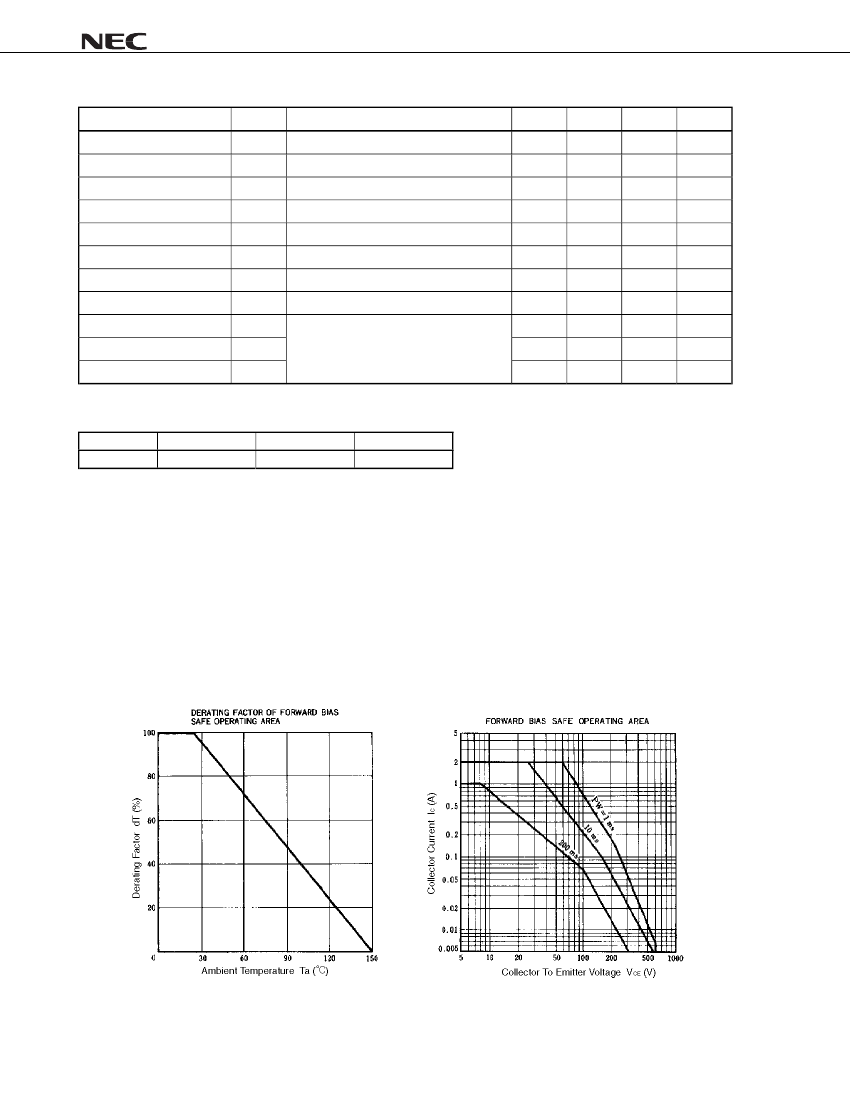

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for

availability and additional information.

Document No. D16152EJ1V0DS00 (2nd edition)

Date Published April 2002 N CP(K)

Printed in Japan

2002

1998
