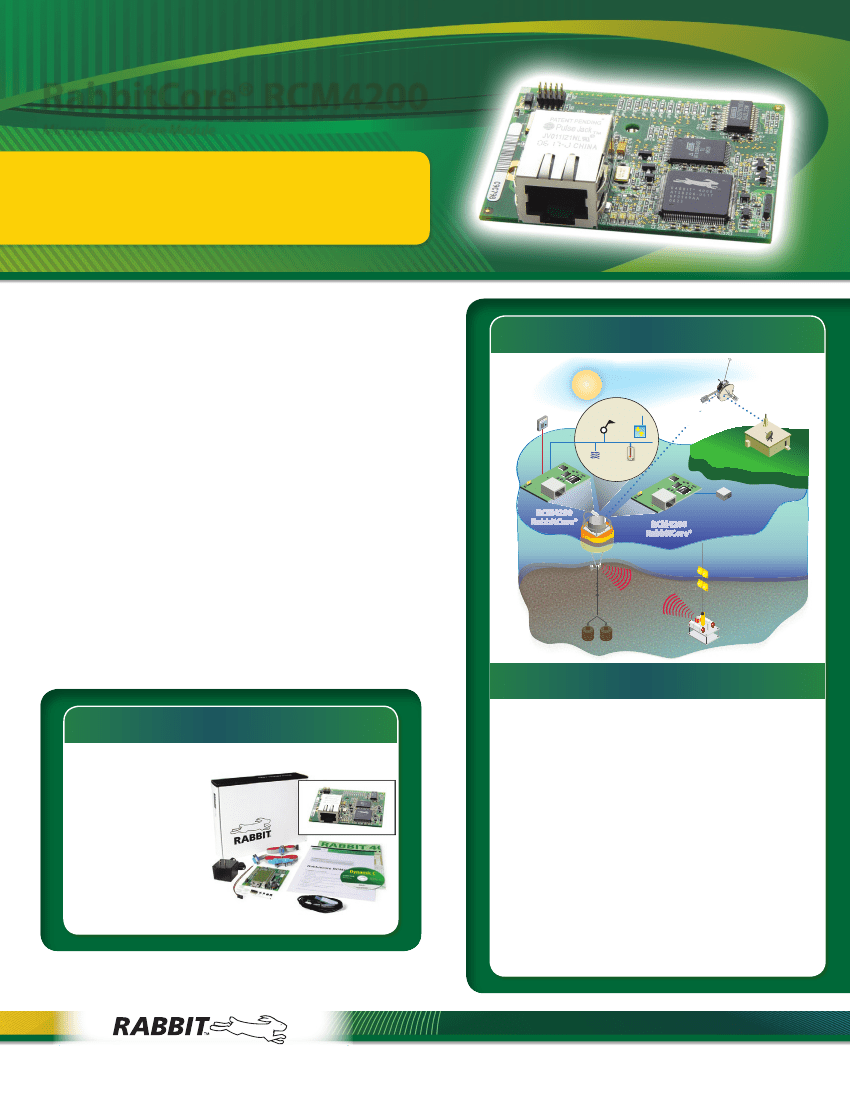

RabbitCore® RCM4200
Microprocessor Core Module
The RabbitCore RCM4200 series of powerful embedded control
devices offer intelligence and Fast Ethernet connectivity for
sophisticated data logging and serial to Ethernet applications.
Overview
The RCM4200 series of core modules are pin-compatible and
easily interchangeable with other RCM4XXX based products. The
RCM4200 acts as the microprocessor of an embedded system and
is designed to mount directly to a user-supplied motherboard,
allowing CMOS-compatible digital devices to interface with the
motherboard. The RCM4200 offers robust features including
large memory and Fast Ethernet, making it ideal for intensive
communications and data-logging applications. The optional
analog helps to diversify your connectivity options.
Evaluation of the RCM4200 is easy with the RabbitCore RCM4200
development kit, which provides all the necessary hardware
and software to quickly get started. Please visit
www.rabbit.com/products/rcm4200
to learn more about
the RabbitCore RCM4200.
Application Highlight
Satellite and Accoustic
Link Communication
Air
Wind Direction
Pressure
Sensor
Sensor
1-Wire
Bi-directional
Bi-directional
Satellite Communication
Satellite Communication
and Control
and Control
Serial
Ethernet
Wave
Serial
Temperature
Sensor
Sensor
Disaster Warning Center
Serial
RCM4200
RC
M4200
RabbitCore®
R
a
bb
it
Core®
bb C
or
r
Surface
Buoy
RCM4200
RCM4200
RabbitCore®
R
a
bbi
t
C
o
re
®
e
Mechanical Systems
and Anchoring System
Mooning and
Anchor Assembly
Bi-directional
Acoustic Link
Recovery
Floatation
Tsunameter
Features and Benefits
Development Kit
This low-cost
development kit
includes everything
you need to get
started
• Rabbit 4000 running at 59 MHz
• 10/100Base-T Ethernet, RJ-45 jack
• 512K Flash / 512K Data SRAM
• 4 MB or 8 MB Serial Flash for data storage
• Up to 35 GPIO, up to 5 serial ports
• 8 channels 12-bit A/D converter option
• Embedded device networking, intelligence, I/O
control and web server capability
• Abilty to remotely update firmware
$269
www.rabbit.com
RabbitCore
®
RCM4200 Specifications
Feature
Microprocessor
EMI Reduction
Ethernet Port
Data SRAM
Program Execution Fast SRAM
Flash Memory
Serial Flash Memory
Backup Battery
General-Purpose I/O
Additional Inputs
Additional Outputs
Analog Inputs
A/D Converter Resolution
A/D Conversion Time (including 120 μs raw
Auxiliary I/O Bus
8 MB
512K (8-bit)
512K (8-bit)
4 MB
RCM4200
Rabbit® 4000 @ 59 MHz
RCM4210
Rabbit® 4000 @ 29 MHz
Spectrum spreader for reduced EMI (radiated emissions)
10/100Base-T, RJ-45, 3 LEDs
512K (8-bit)
—
Connection for user-supplied backup battery (to support RTC and data SRAM)
25 parallel digital I/O lines:
• Configurable with 4 layers of alternate functions
2 startup mode, reset in, CONVERT
Status, reset out, analog VREF
8 channels single-ended or 4 channels differential
Programmable gain 1, 2, 4, 5, 8, 10, 16, and 20 V/V
12 bits (11 bits single-ended)
180 μs
35 parallel digital I/O lines:
• Configurable with 4 layers of alternate functions
2 startup mode, reset in
Status, reset out
—
—
—
Can be configured for 8 data lines and 6 address lines (shared with parallel I/O lines), plus I/O read/write
4 shared high-speed, CMOS-compatible ports:
• All 4 configurable as asynchronous (with IrDA),
4 as clocked serial (SPI)
• 1 asynchronous clocked serial port shared
with programming port
• 1 clocked serial port shared with serial flash
• 1 clocked serial port shared with A/D converter
5 shared high-speed, CMOS-compatible ports:
• All 5 configurable as asynchronous (with IrDA),
4 as clocked serial (SPI), and 1 as SDLC/HDLC
• 1 clocked serial port shared with serial flash
• 1 asynchronous clocked serial port dedicated
for programming
Serial Ports
Serial Rate
Slave Interface
Real Time Clock
Timers
Watchdog/Supervisor
Pulse-Width Modulators
Input Capture
Quadrature Decoder
Power (pins unloaded)
Operating Temperature
Humidity
Connectors
Board Size
Pricing
Price (qty. 1/100)
Part Number
Development Kit
Part Number
$109 / $89
20-101-1131
Maximum asynchronous baud rate = CLK/8
Slave port allows the RCM4200 to be used as an intelligent peripheral device slaved to a master processor
Yes
Ten 8-bit timers (6 cascadable from the first), one 10-bit timer with 2 match registers,
and one 16-bit timer with 4 outputs and 8 set/reset registers
Yes
• 3 channels synchronized PWM with 10-bit counter
• 3 channels variable-phase or syn-chronized PWM
with 16-bit counter
• 4 channels synchronized PWM with 10-bit counter
• 4 channels variable-phase or syn-chronized PWM
with 16-bit counter
2 input capture channels can be used to time input signals from various port pins
1 quadrature decoder channel accepts inputs from external
incremental encoder modules
3.0–3.6 V DC, 240 mA (typ.) @ 3.3 V,
275 mA @ 3.6 V and 85°C (max.)
-40° C to +85° C
5% to 95%, non-condensing
One 2 × 25, 1.27 mm pitch IDC signal header, One 2 × 5, 1.27 mm pitch IDC programming header
1.84” × 2.42” × 0.84” (47 mm × 61 mm × 21 mm)
2 quadrature decoder channels accept inputs from external
incremental encoder modules
3.0–3.6 V DC, 200 (typ.) mA @ 3.3 V,
225 mA @ 3.6 V and 85°C (max.)
$99 / $81
20-101-1132
$269
101-1155
Rabbit®
2900 Spafford Street Davis, CA 95618 USA Tel 1.888.411.7228 Tel 530.757.8400 Fax 530.757.8402
91001548
A1/909
©2009 Rabbit. All rights reserved. Rabbit is a Digi International brand. Rabbit and RabbitCore are trademarks or registered trademarks of
Digi International Inc. in the United States and other countries worldwide. All other trademarks are the property of their respective owners.
