RV16A-10-20R1-B23: DescriptionPanel mount potentiometer linear 2K solder lugs; CategoryPassive components; File Size24KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

RV16A-10-20R1-B23 Overview

Panel mount potentiometer linear 2K solder lugs

RV16A-10-20R1-B23 Parametric

Parameter Name	Attribute value
Maker	All Sensors
RoHS	no
resistance	2 KOhms
Tolerance	20 %
Power rating	0.125 Watt (1/8 Watt)
Termination type	Lug
taper	Line
Component type	Carb
Shaft type	Round / Plai
Shaft length	0.787 i
Shaft diameter	0.25 i
product	Panel Mount Potentiometers

Preview

Download Datasheet

View All

MOUSER STOCK NO.

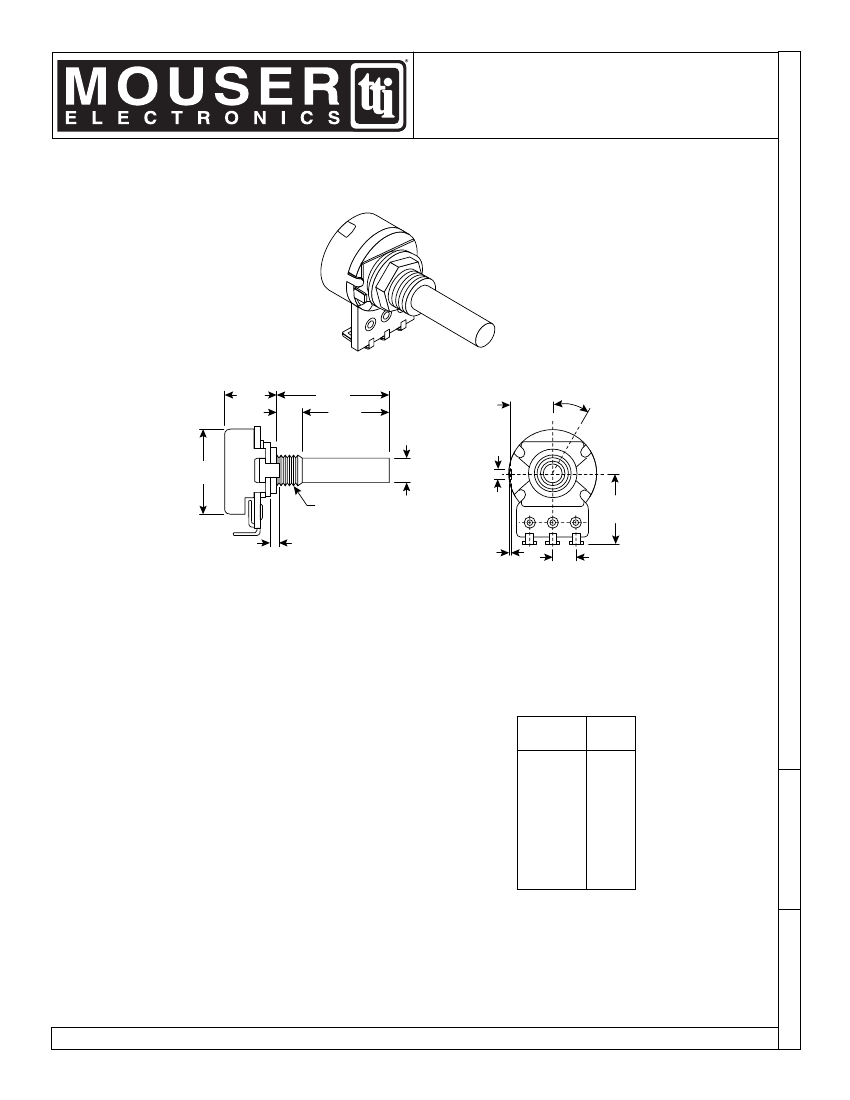

31JN Series

Potentiometers

31JN Series

.374

.256

.787

.531

.307

30°

ø.669

M7 x .75mm

ø.250

.110

.531

.079

.047

.197

Dimensions (In.)

(except where noted)

Potentiometers

Specifications:

•

Type: miniature carbon composition

•

Taper: linear

•

Rated wattage: .125W

•

Rated voltage: 200V

•

Insulation resistance: > 100MΩ @ 500VDC

•

Dielectric strength: 500VAC for 1 minute

•

Rotation life: 15,000 cycles

•

Rotational noise: 47mV

•

Total rotational angle: 300°±5°

•

Rotation torque: 20 ~ 200gf. cm

•

Shaft stop strength: 6Kgf. cm min.

•

Tolerance: < 1MΩ±20%,

≥

1MΩ±30%

•

Shaft: zinc alloy

•

Case: zinc plated steel

Mouser

Stock No.

31JN301

31JN302

31JN305

31JN401

31JN405

31JN501

31JN505

31JN601

Value

(Ω)

1K

2K

5K

10K

50K

100K

500K

1 Meg

8-

143106

Date:

10-21-03

Quality, Speed, & Service

(800) 346-6873

http://www.mouser.com

RV16A-10-20R1-B23 Related Products

	RV16A-10-20R1-B23	RV16A-10-20R1-B55	RV16A-10-20R1-B14	RV16A-10-20R1-B53	RV16A-10-20R1-B16	RV16A-10-20R1-B100K
Description	Panel mount potentiometer linear 2K solder lugs	Panel mount potentiometer linear 500k solder lugs	Panel mount potentiometer linear 10k solder lugs	Panel mount potentiometer linear 5K solder lugs	Panel mount potentiometer linear 1meg solder lugs	Panel mount potentiometer linear 100k solder lugs
Maker	All Sensors	All Sensors	All Sensors	All Sensors	All Sensors	All Sensors
RoHS	no	no	no	no	no	no
resistance	2 KOhms	500 KOhms	10 KOhms	5 KOhms	1 MOhms	100 KOhms
Tolerance	20 %	20 %	20 %	20 %	30 %	20 %
Power rating	0.125 Watt (1/8 Watt)	0.125 Watt (1/8 Watt)	0.125 Watt (1/8 Watt)	0.125 Watt (1/8 Watt)	0.125 Watt (1/8 Watt)	0.125 Watt (1/8 Watt)
Termination type	Lug	Lug	Lug	Lug	Lug	Lug
taper	Line	Line	Line	Line	Line	Line
Component type	Carb	Carb	Carb	Carb	Carb	Carb
Shaft type	Round / Plai	Round / Plai	Round / Plai	Round / Plai	Round / Plai	Round / Plai
Shaft length	0.787 i	0.787 i	0.787 i	0.787 i	0.787 i	0.787 i
Shaft diameter	0.25 i	0.25 i	0.25 i	0.25 i	0.25 i	0.25 i
product	Panel Mount Potentiometers	Panel Mount Potentiometers	Panel Mount Potentiometers	Panel Mount Potentiometers	Panel Mount Potentiometers	Panel Mount Potentiometers
