EX-209
Evacuated Miniature Crystal Oscillator
EX-209
Description
Features
•
•
•
•
•
16 pin Double Dip Package
Ruggedized hybrid thick lm construction
Low Power Consumption
Frequency Range: 10 MHZ to 40 MHZ
Previous Model: EX-245
Applications
• Severe Environmental Conditions
Performance Speci cations
Parameter
Min
Typ
Max
Units
Condition
Frequency Stabilities
1
[10 to 20 MHz]
vs. operating temperature range
(referenced to +25°C)
Initial tolerance for xed frequency
Settability
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / 1 year
vs. aging / 10 year (10 to <12 MHz)
vs. aging / 10 year (12 to <16 MHz)
vs. aging / 10 year (16 to 20 MHz)
Warm-up Time
2
-50
-75
-100
-1.0
-0.2
-15
-15
-2
-200
-1000
-1500
-2000
+50
+75
+100
+1.0
+0.2
+15
+15
+2
+200
+1000
+1500
+2000
120
180
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
seconds
seconds
0… +60°C
-20… +70°C
-40… +85°C
xed, no adjust
VS ± 5%
Load ± 5%
after 7 days of operation
to ± 1ppm of nal freq. @+25°C
to ± 100ppb of nal freq. @+25°C
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Speci cations
Parameter
Min
Typ
Max
Units
Condition
Frequency Stabilities
1
[>20 to 40 MHz]
vs. operating temperature range
(referenced to +25°C)
Initial tolerance for xed frequency
Settability
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / 1 year
vs. aging / 10 year
Warm-up Time
2
-75
-100
-150
-1.5
-0.3
-25
-25
-3
-300
-3000
+75
+100
-150
+1.5
+0.3
+25
+25
+3
+300
+3000
120
180
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
seconds
seconds
0… +60°C
-20… +70°C
-40… +85°C
xed, no adjust
VS ± 5%
Load ± 5%
after 7 days of operation
to ± 1ppm of nal freq. @+25°C
to ± 100ppb of nal freq. @+25°C
Supply Voltage (Vs)
Supply voltage (Standard)
Power Consumption
4.75
5.0
5.25
2.2
0.7
1.2
VDC
Watts
Watts
Watts
during warm-up
steady state @ +25°C
steady state @ -40°C
RF Output
Signal [Standard]
Load
Signal Level (Vol)
Signal Level (Voh)
Rise/Fall Time
Duty cycle
Signal [Option]
Load
Output Power (Standard)
Output Power (Option)
Harmonics
Spurious
0.0
+3.0
50
+2.0
+5.0
+4.0
+7.0
-25
-60
40
0.9
+7
60
Sinewave
ohm
dBm
dBm
dBc
dBc
50 ohm load
50 ohm load
15
0.1
HCMOS
pF
VDC
VDC
ns
%
(10-90%)
(Voh-Vol)/2
Frequency Tuning (EFC)
Tuning Range
Tuning Range
Vref
Fixed OCXO; No adjust
Su cient to compensate for 10 years
aging
+4.0
+4.1
+4.2
VDC
EFC (0V to 4V)
source current 1 mA maximum
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Speci cations
Parameter
Phase Noise
3
(10 to 20 MHZ)
Min
Typ
Max
-100
-125
-140
-145
-145
-90
-115
-130
-140
-140
1
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ppb/g
Condition
10 Hz
100 Hz
1 kHz
10 kHz
10 kHz
10 Hz
100 Hz
1 kHz
10 kHz
10 kHz
Test at 10g sine vibration at 100Hz
Additional Parameters
1
[10 to 20 MHz]
Phase Noise
3
(>20 to 40 MHZ)
G-Sensitivity
Environmental Conditions (Designed to meet)
• Radiation Tolerant (operating):
• Mechanical Shock (survive)***:
• Vibration Random (survive)***:
• Vibration Sine (survive)***:
Note: *** Met by design, not tested
Active devices are selected from a family of product that is inherently
radiation tolerant to meet 100krad (SI) total dose
MIL-STD-202, Test Method 213, Condition E (1000G, 0.5msec)
MIL-STD-202, Test Method 214, Condition I-F (20Grms, 3 minutes/axis)
MIL-STD-202, Test Method 204, Condition D (20Grms, 20 minutes/axis)
Screening Options
Ordering Code
Test Inspection
Nondestructive Bond Pull
Internal Visual Per Mil-PRF-
55310 Requirement
Stabilization Bake
S-Level Screening
MIL-STD-883
Method 2023
Internal Visual Per Mil-PRF-55310
Requirement
MIL-STD-883
Method 1008,
Condition C
MIL-STD-883
Method 1011,
Condition A
MIL-STD-883
Method 1010,
Condition A
MIL-STD-883
Method 2001
MIL-STD-883
Method 2020,
Condition B
150°C for 48hrs
S
B-Level Screening
N/A
Internal Visual Per Mil-PRF-55310
Requirement
MIL-STD-883
Method 1008,
Condition C
N/A
150°C for 48hrs
B
Thermal Shock
0°C to 100°C for
15cycles
-55°C to 85°C (2)
for 10cycles
1000g’s (3)
Y1 Only
10g peak at 60Hz
minimum
Temperature Cycling (1)
MIL-STD-883
Method 1010,
Condition A
MIL-STD-883
Method 2001
N/A
-55°C to 85°C (2)
for 10cycles
1000g’s (3)
Y1 Only
Constant Acceleration (1)
PIND
Electrical Test
Burn-in (1)
Radiographic
Per Mil-PRF-55310 Requirement
85°C (2) for 240hrs
MIL-STD-883
Method 2012
Per Mil-PRF-55310 Requirement
85°C (2) for 240hrs
N/A
Note:
(1) These test inspections deviate from screening requirements for class 2 oscillator in MIL-PRF-55310.
(2) The maximum operating and storage temperature of the EX-209 is +85°C. The EX-209 shall not be exposed to temperature higher
than +85°C at length of time.
(3) The design and construction of the EX-209 can withstand up to 1000g’s constant acceleration
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com

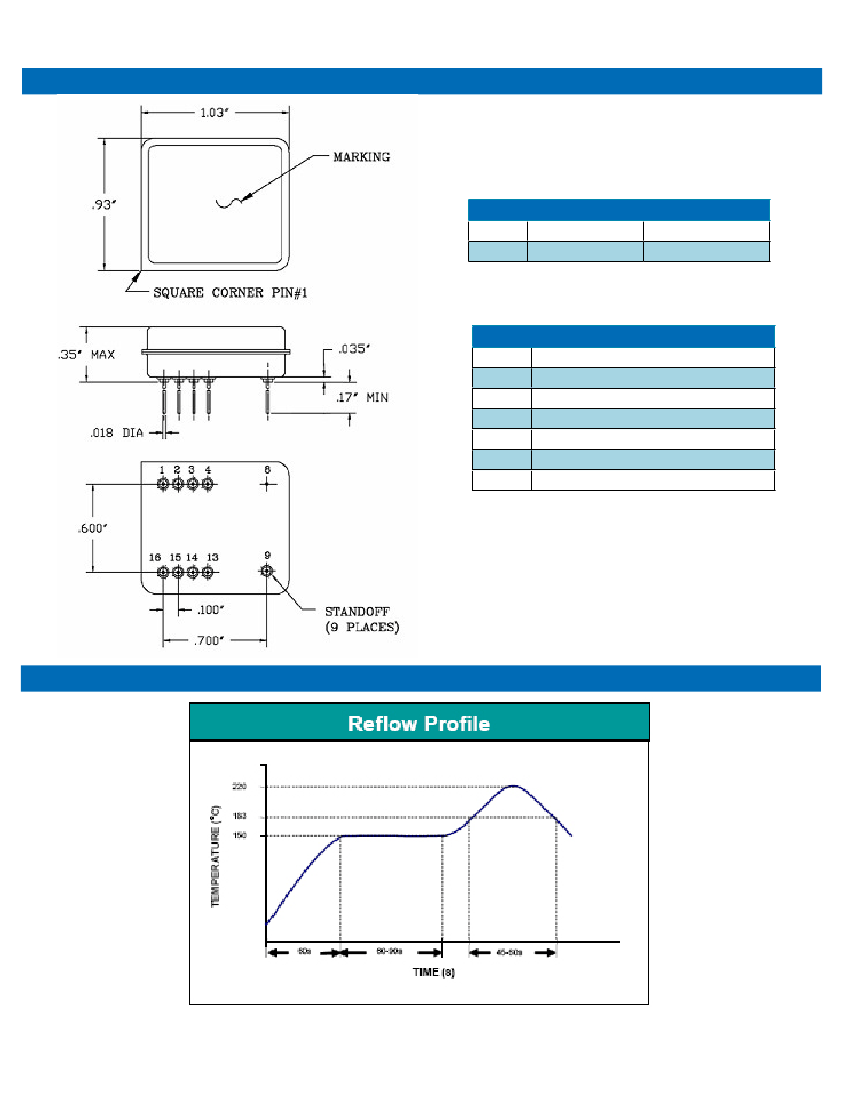

Outline Drawing / Enclosure
Dimensions in inches (mm)
Type A
Code
A1
Height “H”
0.35 (8.9 mm)
Pin Length “L”
0.17
Pin Connections
1
2-4
8
9
13-14
15
16
EFC \ No Connect
No Connect
Ground (Case)
Output
No Connect
Vref \ No Connect
Supply Voltage Input
Recommended Re ow Pro le
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
EX - 209 0 - D A J - 2SS 0 - 10M0000000
Frequency
Product Family
EX: EMXO
Package
25 x 25 mm
Height
0: A8.9mm
Supply Voltage
D: 5 Vdc
Tuning Option (1st digit):
0: Fixed Frequecy (HCMOS)
1: Fixed Frequecy (0 dBm)
2: Fixed Frequecy (+3 dBm)
3: Electrical Tuning (HCMOS)
4: Electrical Tuning (0 dBm)
5: Electrical Tuning (+3 dBm)
Stability Code (1st digit):
0: ±50ppb
1: ±75ppb
2: ±100ppb
3: ±150ppb
Screening Option (2nd digit):
S: “S” Level screening
B: “B” Level screening
E: “EM” Engineering Model
P: Proof of Design “POD-Prototype”
Crystal Option (3rd digit):
S: Swept Quartz
N: Non-Swept Quartz
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modi cation.
5. Contact factory for availability.
RF Output Code
A: HCMOS
E: Sinewave
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
S: 0°C to +60°C
For Additional Information, Please Contact
USA:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
Europe:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Asia:
Vectron International
1F-2F, No 8 Workshop, No 308 Fenju Road
WaiGaoQiao Free Trade Zone
Pudong, Shanghai, China 200131
Tel: 86.21.5048.0777
Fax: 86.21.5048.1881
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 11/25/2008 daf
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
