2102352-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2102352-6

2102352-6: Descriptionconn rcpt 8 pos pnl MT pin key B; CategoryThe connector; File Size406KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2102352-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102352-6	-	-	View	Buy Now

2102352-6 Overview

conn rcpt 8 pos pnl MT pin key B

2102352-6 Parametric

Parameter Name	Attribute value
Datasheets
2102352 Drawing
CeeLok FAS-T Brochure
Product Photos
2102352-6
Product Training Modules
High-Speed Copper Investigation - 1G and 10G Etherne
Video File
CeeLok FAS-T Connectors
Featured Produc
CeeLok FAS-T Connectors
Standard Package	1
Category	Connectors, Interconnects
Family	Circular Connectors
Packaging	Bulk
Connector Type	Receptacle, Male Pins
Number of Positions	8
Shell Size - Inse	8
Shell Size, MIL	-
Mounting Type	Panel Mount, Bulkhead - Front Side Nu
Terminati	Crim
Fastening Type	Threaded
Orientati	B
Ingress Protecti	IP67 - Dust Tight, Waterproof
Shell Material, Finish	Aluminum, Black Zinc Nickel Plated
Contact Finish	Gold
Features	Shielded
Contact Finish Thickness	19.7µin (0.50µm)
Current Rating	5A
Voltage - Rated	500VAC
Operating Temperature	-65°C ~ 170°C
Dynamic Catalog	CeeLok FAS-T Series
Mating Products	A104625-ND - CONN PLUG 8 POS INLINE SKT KEY B
Other Names	21023526A104629

Preview

Download Datasheet

View All

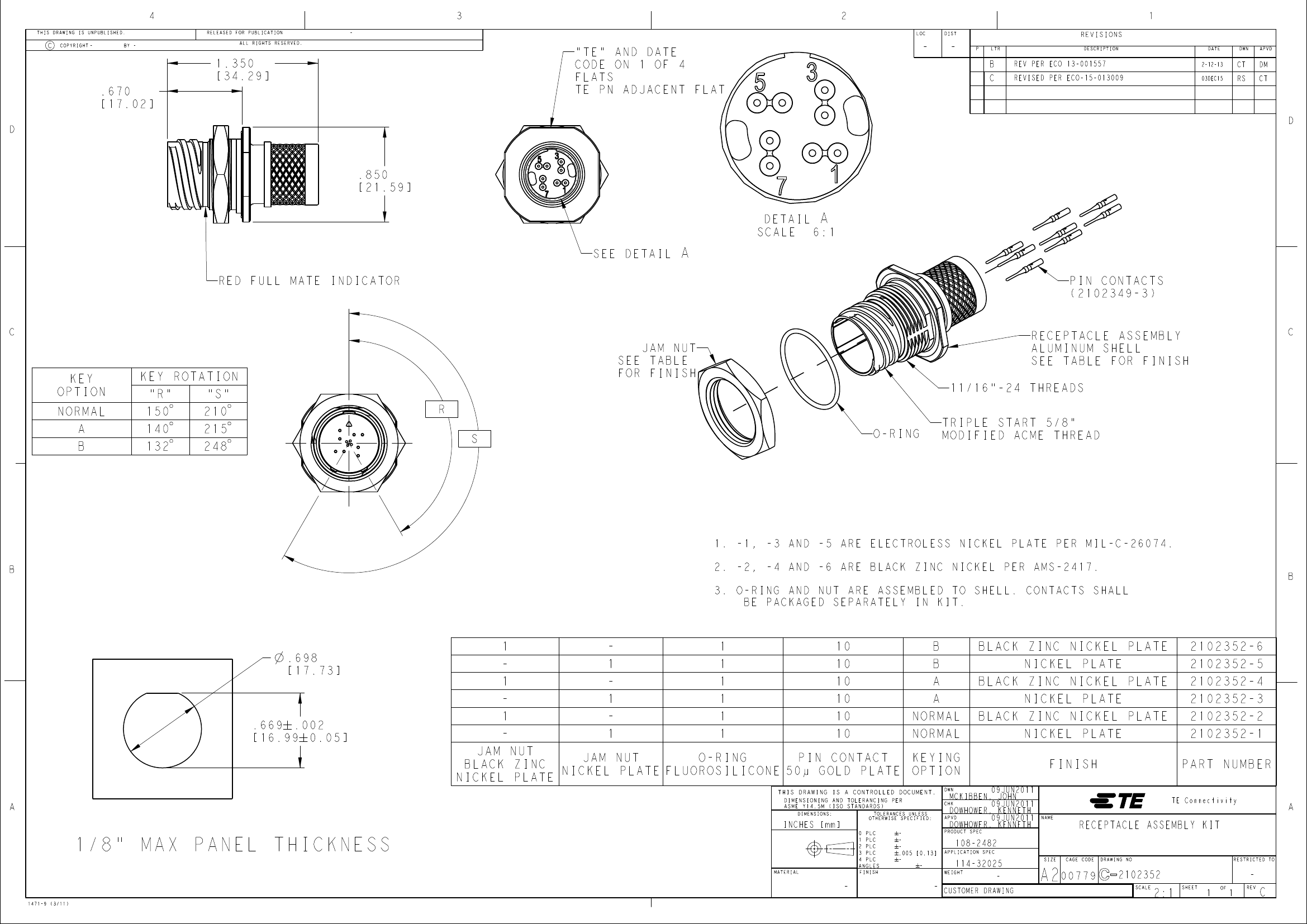

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

.670

[ 17.02 ]

1.350

[ 34.29 ]

"TE" AND DATE

CODE ON 1 OF 4

FLATS

TE PN ADJACENT FLAT

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECO 13-001557

REVISED PER ECO-15-013009

2-12-13

03DEC15

.850

[ 21.59 ]

DETAIL

SCALE

6:1

SEE DETAIL

RED FULL MATE INDICATOR

PIN CONTACTS

(2102349-3)

RECEPTACLE ASSEMBLY

ALUMINUM SHELL

SEE TABLE FOR FINISH

11/16"-24 THREADS

TRIPLE START 5/8"

MODIFIED ACME THREAD

KEY

OPTION

NORMAL

KEY ROTATION

150 $

"R"

210 $

215 $

248 $

"S"

JAM NUT

SEE TABLE

FOR FINISH

140 $

132 $

O-RING

1. -1, -3 AND -5 ARE ELECTROLESS NICKEL PLATE PER MIL-C-26074.

2. -2, -4 AND -6 ARE BLACK ZINC NICKEL PER AMS-2417.

3. O-RING AND NUT ARE ASSEMBLED TO SHELL. CONTACTS SHALL

BE PACKAGED SEPARATELY IN KIT.

.698

[ 17.73 ]

BLACK ZINC NICKEL PLATE

NICKEL PLATE

FINISH

NICKEL PLATE

2102352-6

2102352-4

2102352-3

2102352-2

2102352-1

PART NUMBER

TE Connectivity

2102352-5

.669 .002

[ 16.99

0.05 ]

JAM NUT

BLACK ZINC

NICKEL PLATE

NORMAL

KEYING

OPTION

JAM NUT

NICKEL PLATE

O-RING

FLUOROSILICONE

PIN CONTACT

50µ GOLD PLATE

DIMENSIONING AND TOLERANCING PER

ASME Y14.5M (ISO STANDARDS)

DIMENSIONS:

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

1/8" MAX PANEL THICKNESS

1471-9 (3/11)

INCHES [mm]

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.005 [0.13]

09JUN2011

MCKIBBEN, JOHN

CHK

09JUN2011

DOWHOWER, KENNETH

APVD

09JUN2011

DOWHOWER, KENNETH

DWN

PRODUCT SPEC

APPLICATION SPEC

NAME

RECEPTACLE ASSEMBLY KIT

CAGE CODE

DRAWING NO

RESTRICTED TO

108-2482

114-32025

WEIGHT

CUSTOMER DRAWING

00779

SIZE

2102352

SCALE

2:1

SHEET

REV

2102352-6 Related Products

	2102352-6	2102352-4	2102352-5	2102352-3
Description	conn rcpt 8 pos pnl MT pin key B	conn rcpt 8 pos pnl MT pin key A	conn rcpt 8 pos pnl MT pin key B	conn rcpt 8 pos pnl MT pin key A
Standard Package	1	1	1	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Circular Connectors	Circular Connectors	Circular Connectors	Circular Connectors
Packaging	Bulk	Bulk	Bulk	Bulk
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins	Receptacle, Male Pins	Receptacle, Male Pins
Number of Positions	8	8	8	8
Shell Size - Inse	8	8	8	8
Mounting Type	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Front Side Nu
Terminati	Crim	Crim	Crim	Crim
Fastening Type	Threaded	Threaded	Threaded	Threaded
Orientati	B	A	B	A
Ingress Protecti	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Shell Material, Finish	Aluminum, Black Zinc Nickel Plated	Aluminum, Black Zinc Nickel Plated	Aluminum, Nickel Plated	Aluminum, Nickel Plated
Contact Finish	Gold	Gold	Gold	Gold
Features	Shielded	Shielded	Shielded	Shielded
Contact Finish Thickness	19.7µin (0.50µm)	19.7µin (0.50µm)	19.7µin (0.50µm)	19.7µin (0.50µm)
Current Rating	5A	5A	5A	5A
Voltage - Rated	500VAC	500VAC	500VAC	500VAC
Operating Temperature	-65°C ~ 170°C	-65°C ~ 170°C	-65°C ~ 170°C	-65°C ~ 170°C
Dynamic Catalog	CeeLok FAS-T Series	CeeLok FAS-T Series	CeeLok FAS-T Series	CeeLok FAS-T Series
Mating Products	A104625-ND - CONN PLUG 8 POS INLINE SKT KEY B	A104627-ND - CONN PLUG 8 POS INLINE SKT KEY A	A104626-ND - CONN PLUG 8 POS INLINE SKT KEY B	A104628-ND - CONN PLUG 8 POS INLINE SKT KEY A
Other Names	21023526A104629	21023524A104631	21023525A104630	21023523A104632
