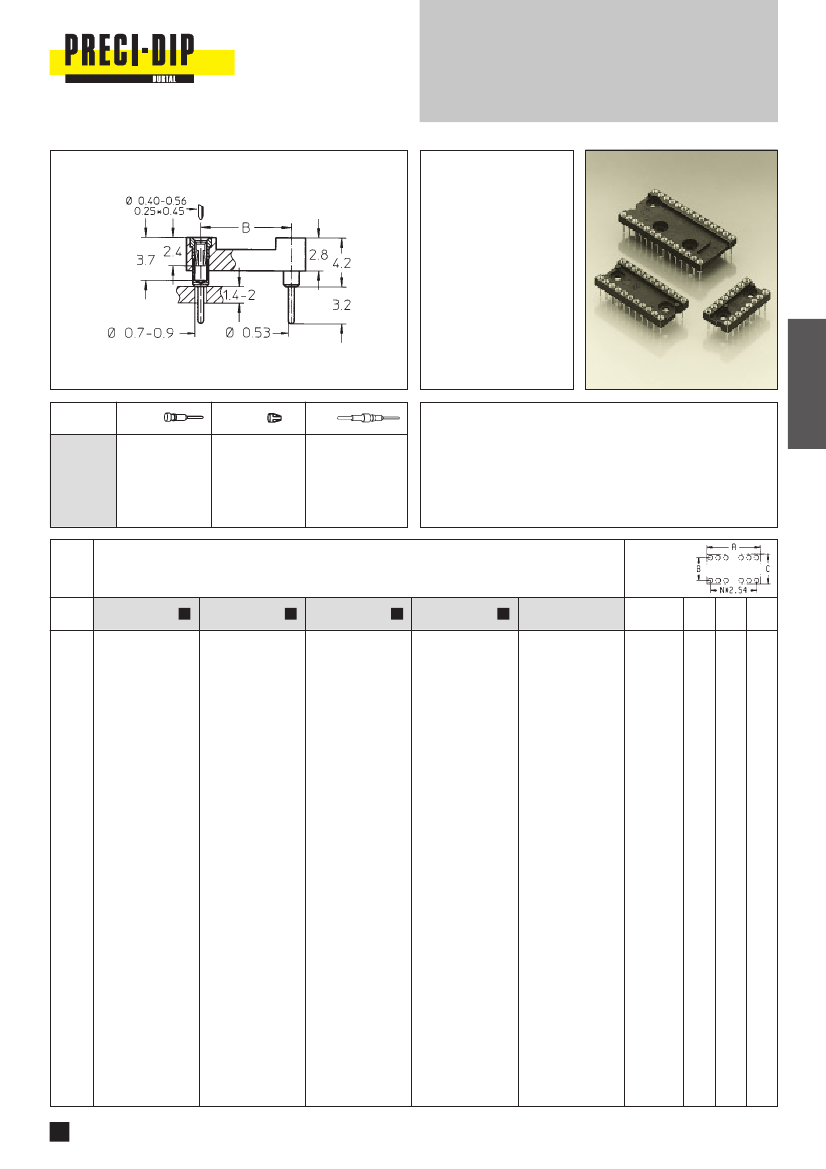

210-97-640-41-001: Descriptiondual-in-line sockets closed frame solder tail; File Size38KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet View All

210-97-640-41-001 Overview

dual-in-line sockets closed frame solder tail

Preview

Download Datasheet

View All

Series 210

Dual-in-line sockets

Closed frame

Solder tail

63

Closed frame “solid” in-

sulator withstands high

mechanical impact. Low

profile

Available with series 10

standard pins, other types

on request

Insertion characteristics:

4-finger standard

Platings

91

93

97

99

Sleeve

5

µm

Sn Pb

5

µm

Sn Pb

5

µm

Sn Pb

5

µm

Sn Pb

Clip

0.25

µm

Au

0.75

µm

Au

Goldflash

5

µm

Sn Pb

Ordering information

For complete part number see Order Codes list below

No.

of

poles

Plating 91

B

6

8

10

14

16

18

20

24

22

24

28

32

36

40

48

210-91-306-41-001

210-91-308-41-001

210-91-310-41-001

210-91-314-41-001

210-91-316-41-001

210-91-318-41-001

210-91-320-41-001

210-91-324-41-001

210-91-422-41-001

210-91-424-41-001

210-91-624-41-001

210-91-628-41-001

210-91-632-41-001

210-91-636-41-001

210-91-640-41-001

210-91-648-41-001

Plating 93

B

210-93-306-41-001

210-93-308-41-001

210-93-310-41-001

210-93-314-41-001

210-93-316-41-001

210-93-318-41-001

210-93-320-41-001

210-93-324-41-001

210-93-422-41-001

210-93-424-41-001

210-93-624-41-001

210-93-628-41-001

210-93-632-41-001

210-93-636-41-001

210-93-640-41-001

210-93-648-41-001

Order Codes

Insulator

dimen-

sions

Plating 99

B

210-99-306-41-001

210-99-308-41-001

210-99-310-41-001

210-99-314-41-001

210-99-316-41-001

210-99-318-41-001

210-99-320-41-001

210-99-324-41-001

210-99-422-41-001

210-99-424-41-001

210-99-624-41-001

210-99-628-41-001

210-99-632-41-001

210-99-636-41-001

210-99-640-41-001

210-99-648-41-001

See

page 51

Fig. 30

Fig. 31

Fig. 32

Fig. 33

Fig. 34

Fig. 35

Fig. 36

Fig. 37

Fig. 38

Fig. 39

Fig. 40

Fig. 41

Fig. 42

Fig. 43

Fig. 44

Fig. 45

A

7.6

10.1

12.6

17.7

20.3

22.8

25.3

30.4

B

7.62

C

10.10

Plating 97

B

210-97-306-41-001

210-97-308-41-001

210-97-310-41-001

210-97-314-41-001

210-97-316-41-001

210-97-318-41-001

210-97-320-41-001

210-97-324-41-001

210-97-422-41-001

210-97-424-41-001

210-97-624-41-001

210-97-628-41-001

210-97-632-41-001

210-97-636-41-001

210-97-640-41-001

210-97-648-41-001

27.8 10.16 12.60

30.4 10.16 12.60

30.4

35.5

40.6

45.7

50.6

61.0

15.24

17.70

17.64

B

Products not available from stock. Please consult PRECI-DIP.
