3-435470-2 datasheet, PDF - EEWORLD Datasheet

3-435470-2: DescriptionSLIDE DIP SWITCH-8SWITCHES, DPDT, LATCHED,THROUGH HOLE-STRAIGHT; CategoryMechanical and electronic products switch; File Size161KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

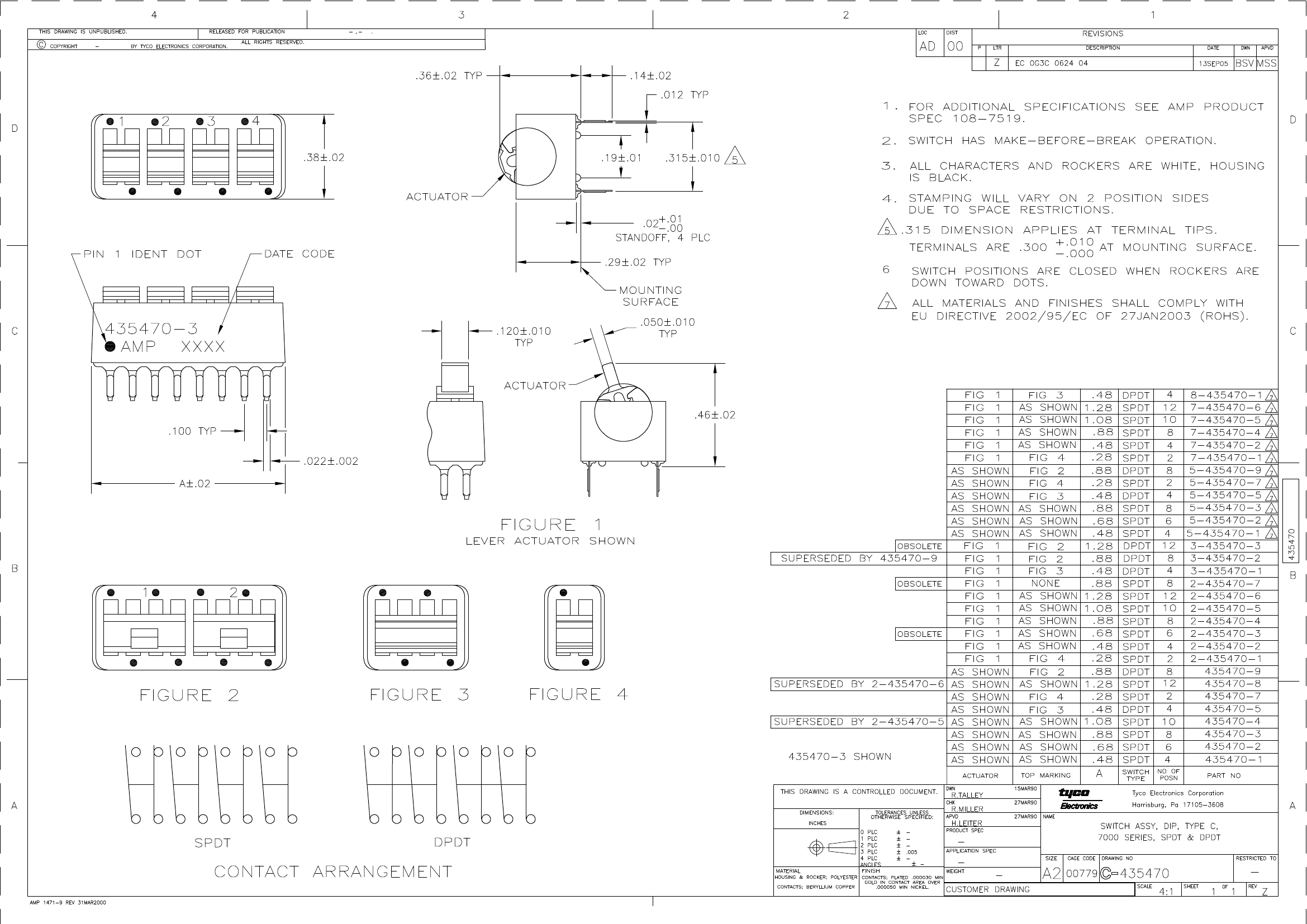

3-435470-2 Overview

SLIDE DIP SWITCH-8SWITCHES, DPDT, LATCHED,THROUGH HOLE-STRAIGHT

Parameter Name	Attribute value
Objectid	1580060075
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Actuator color	WHITE
Actuator length	0.17 inch
Actuator material	THERMOPLASTIC
Actuator type	PADDLE
Other features	EXTENDED LEVER
body width	9.65 mm
Body color	BLACK
body height	7.37 mm
Body length or diameter	22.35 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VDC V
Electrical life	7000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Insulation resistance	100000000000 Ω
insulator material	GLASS FILLED POLYESTER
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB hole count	16
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	SLIDE DIP SWITCH
Terminal surface	TIN-LEAD/NICKEL
Terminal length	0.14 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

	3-435470-2	2-435470-3	2-435470-7	3-435470-3
Description	SLIDE DIP SWITCH-8SWITCHES, DPDT, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-6SWITCHES, SPDT, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-8SWITCHES, SPDT, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-12SWITCHES, DPDT, LATCHED,THROUGH HOLE-STRAIGHT
Objectid	1580060075	1580060068	1580060072	1580060076
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	9.65 mm	9.65 mm	9.65 mm	9.65 mm
body height	7.37 mm	7.37 mm	7.37 mm	7.37 mm
Body length or diameter	22.35 mm	17.27 mm	22.35 mm	32.51 mm
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of switching segments	8	6	8	12
surface mount	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED
switch function	DPDT	SPDT	SPDT	DPDT
Switch type	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
