Data sheet

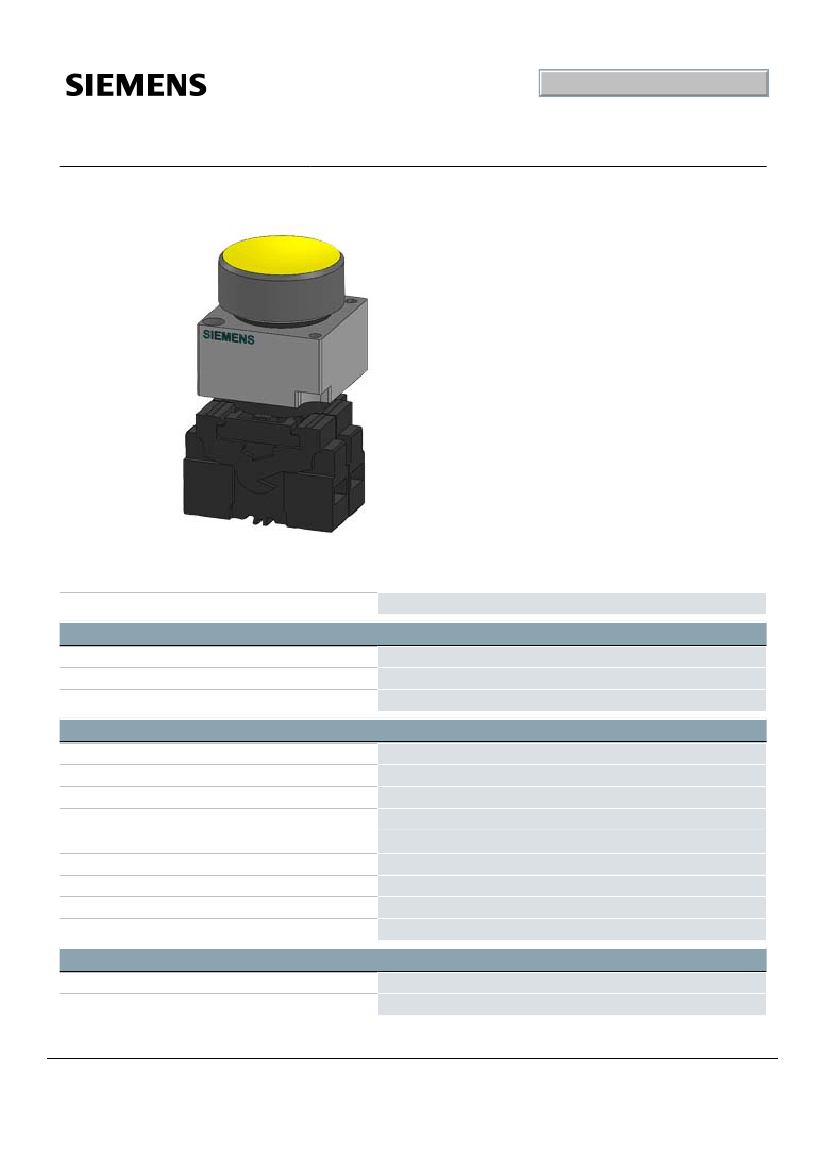

3SB3645-0AA31
ILLUMINATED PUSHBUTTON, 22MM, ROUND, METAL, YELLOW,
WITH FLAT BUTTON, WITH HOLDER, 1NO, LAMPHOLDER WITH
INTEGRATED LED 24V AC/DC, SCREW TERMINAL
Design of the product
Complete unit round
Enclosure:
Shape of the enclosure front
Material of the enclosure
Number of command points
round
metal
1
Actuator:
Design of the operating mechanism
Manner of function of the actuating element
Product extension optional Light source
Color
● of the actuating element
Material of the actuating element
Shape of the actuating element
Type of unlocking device
Number of switching positions
Yellow
plastic
Flat pushbutton
without
2
Illuminated pushbutton
Momentary contact type
Yes
Front ring:
Product component front ring
Design of the front ring
Yes
Standard
3SB3645-0AA31
Page 1/4
07/20/2016
Subject to change without notice
© Copyright Siemens AG
Material of the front ring
Color of the front ring
metal
silver
Holder:
Material of the holder
Metal
Contact block/ lampholder:
Mounting type
Number of lampholders
Number of switching elements
integrated LED
1
1
General technical data:
Product function
● positive opening
Product component
● Light source
Protection class IP
Vibration resistance
● acc. to IEC 60068-2-6
Operating frequency maximum
Mechanical service life (switching cycles)
● typical
Equipment marking
● acc. to DIN 40719 extended according to IEC
204-2 acc. to IEC 750
● acc. to DIN EN 61346-2
● acc. to DIN EN 81346-2
S
S
S
3 000 000
20 ... 200 Hz: 5g
1 000 1/h
Yes
IP67
No
Supply voltage:
Type of voltage of the supply voltage
● of the light source
Supply voltage 1 of the light source at AC
● at 50 Hz rated value
● at 60 Hz rated value
Supply voltage 1 of the light source at DC
● rated value
Relative negative tolerance of the supply voltage
Relative positive tolerance of the supply voltage
24 V
-15 %
10 %
24 V
24 V
AC/DC
Auxiliary circuit:
Number of NC contacts
● for auxiliary contacts
Number of NO contacts
● for auxiliary contacts
Number of CO contacts
● for auxiliary contacts
0
1
0
3SB3645-0AA31
Page 2/4
07/20/2016
Subject to change without notice
© Copyright Siemens AG
Consumed current for rated value of supply voltage
maximum
Operating current at AC-12
● at 24 V rated value
● at 48 V rated value
● at 110 V rated value
● at 230 V rated value
● at 400 V rated value
Operating current at AC-15
● at 24 V rated value
● at 48 V rated value
● at 110 V rated value
● at 230 V rated value
● at 400 V rated value
Operating current at DC-12
● at 24 V rated value
● at 48 V rated value
● at 110 V rated value
● at 230 V rated value
Operating current at DC-13
● at 24 V rated value
● at 48 V rated value
● at 110 V rated value
● at 230 V rated value
18 mA
10 A
10 A
10 A
10 A
10 A
6 A
6 A
6 A
6 A
3 A
10 A
5 A
2.5 A
1 A
3 A
1.5 A
0.7 A
0.3 A
Connections/ Terminals:
Type of electrical connection
Tightening torque of the screws in the bracket
screw-type terminals
1 N·m
Ambient conditions:
Ambient temperature
● during operation
● during storage
Environmental category during operation acc. to IEC
60721
-25 ... +70 °C
-40 ... +80 °C
3K6
Installation/ mounting/ dimensions:
Mounting type
Shape of the installation opening
Mounting diameter
front mounting
round
22 mm
Accessories:
Product component holder for 3 switching elements
Yes
Certificates/approvals
3SB3645-0AA31
Page 3/4
07/20/2016
Subject to change without notice
© Copyright Siemens AG
General Product Approval
Declaration of
Conformity
Test
Certificates
spezielle
Prüfbescheinigunge
n
Shipping
Approval
Shipping Approval
other
Umweltbestätigung
Bestätigungen
sonstig
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/industrial-controls/catalogs
Industry Mall (Online ordering system)
https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=3SB3645-0AA31
Cax online generator
http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3SB3645-0AA31
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
https://support.industry.siemens.com/cs/ww/en/ps/3SB3645-0AA31
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SB3645-0AA31&lang=en
last modified:
07/15/2016
3SB3645-0AA31
Page 4/4
07/20/2016
Subject to change without notice
© Copyright Siemens AG
