This document was generated on 03/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0903273355
Active
1.27mm (.050") Pitch Picoflex® PF-50, Low Profile, IDT Receptacle, 6 Circuits, Natural,

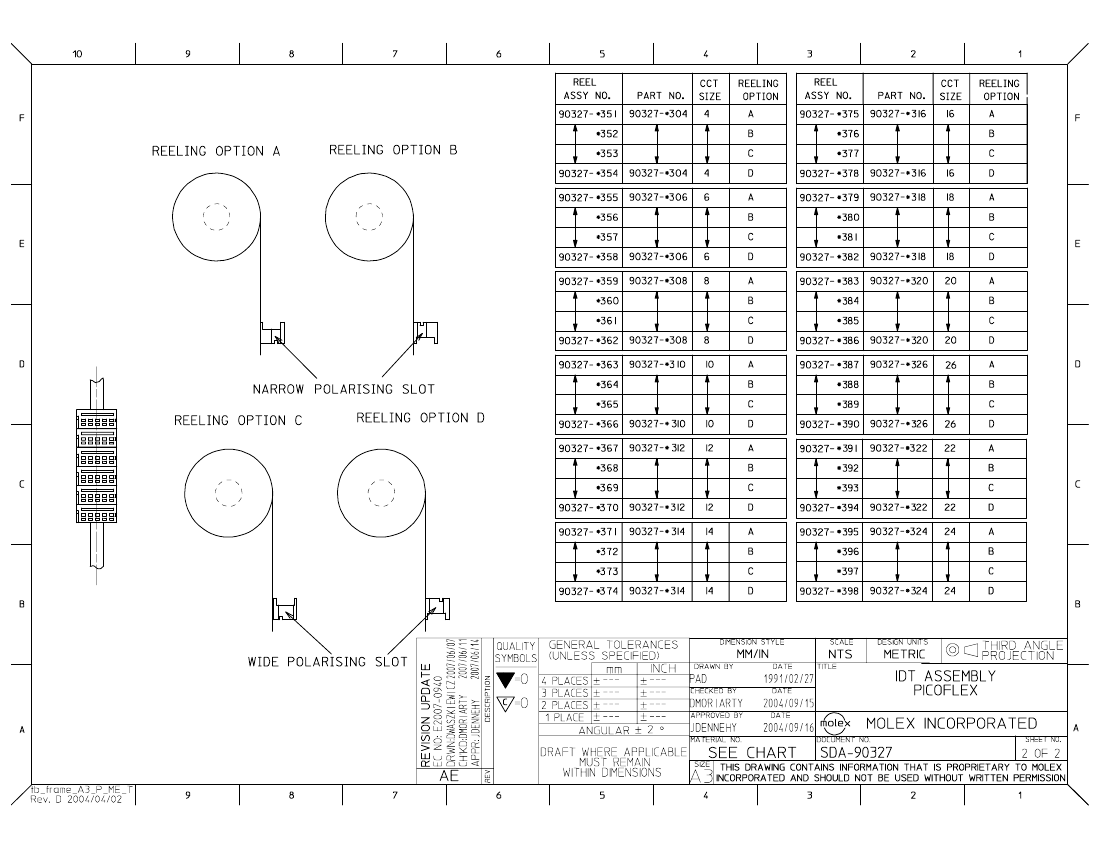

Gold Plated, Reeling Option A
Documents:
3D Model
Drawing (PDF)
Product Specification PS-99020-0011 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
90327
Low Profile|Reeling Option A
Housing
No
Picoflex®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
6
Natural
100
90° Angle
94V-0
Yes
Phosphor Bronze
Gold
Tin
Polyester
2
None
Bag
0.050 In
1.27 mm
Yes
No
N/A
-40°C to +105°C
IDT or Pierce
1.00mm (.039") max.
26, 28
Ribbon Cable
Search Parts in this Series
90327Series
Mates With
Low Profile Vertical 90325 , Low Profile
Right Angle 90800 , 90715 , 90814 , 90779
Vertical
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
0690081070
(Plastic) for 90327
Connector, 4-26
Circuit
Extrator Tool
0621006000
for Picoflex™
Connectors
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.2A
250V
Material Info
Reference - Drawing Numbers
Product Specification

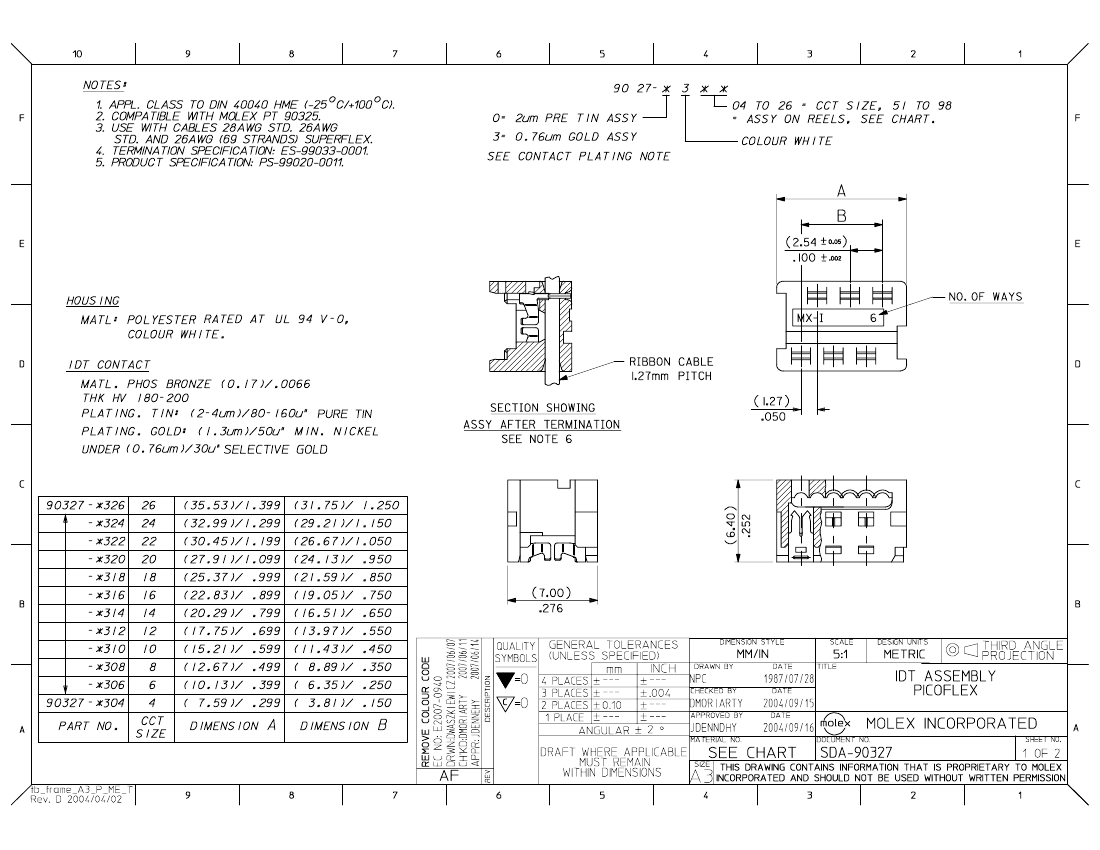

Sales Drawing
PS-99020-0011
SDA-90327
