MA4ST1300 Series
Low Voltage / Low Rs Silicon Hyperabrupt Varactor Diode
Rev. V5

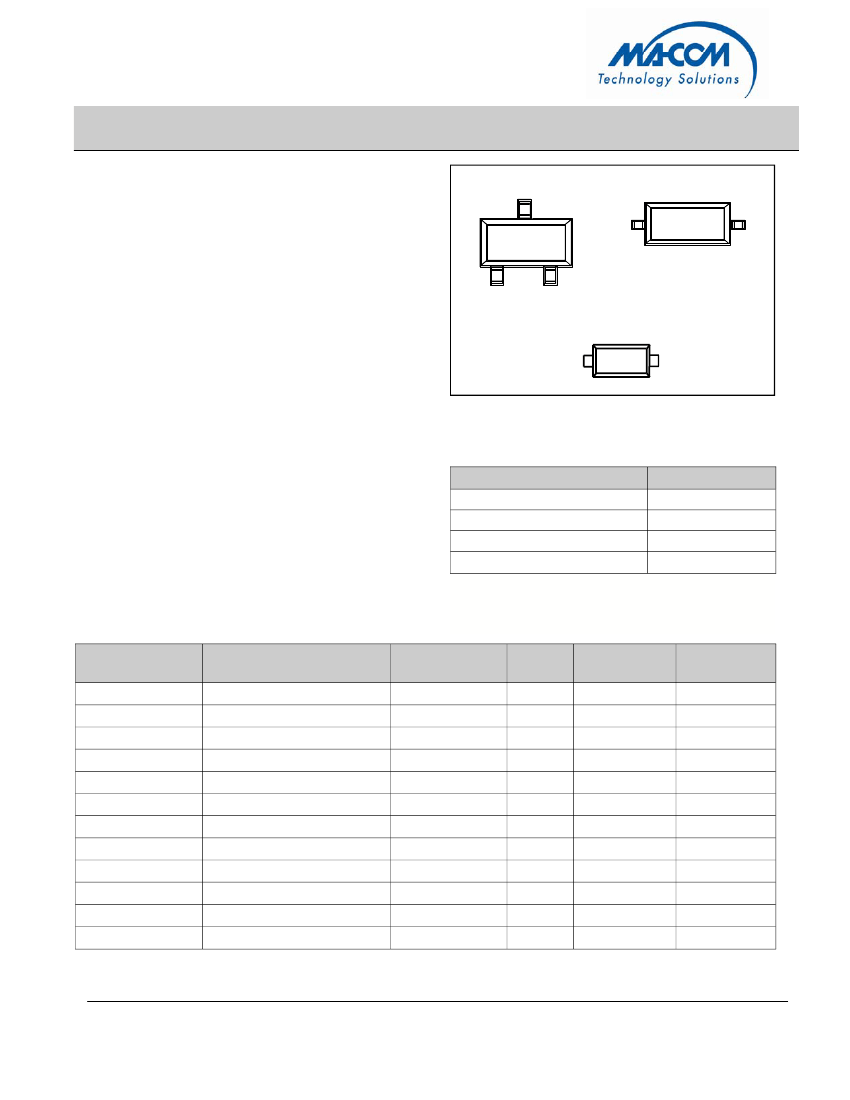

Features
•
Low Series Resistance at Low Tuning Voltages
•
High Capacitance Ratio at Low Tuning Voltages
•
Surface Mount Plastic Packages : SC-79 , SOD-
323, SC-70 ( 3L ) (other packages & configura-
tions available)
•
SPC Process for Superior C vs V Repeatability
•
Lead-Free (RoHs Compliant) equivalents avail-
able with 260°C reflow compatibility.
SC-70 (3 lead)
SOD-323
SC-79
Description and Applications
M/A-COM’s MA4ST1300 series is a highly
repeatable, UHCVD/ion-implanted, hyperabrupt
silicon tuning varactor in a cost effective surface
mount package. This series of varactors is designed
for high capacitance ratio, and high Q for low battery
voltage operation. It is efficient for wide band tuning
and low phase noise application where the supply
voltage is limited to 5 volts or less. The varactors are
offered as singles in SC-79 and SOD-323 along with
a common cathode version offered in the SC-70, 3
Lead. These diodes are offered with standard Sn/Pb
plating , as well as 100% matte Sn plating on our
RoHs compliant equivalent devices.
Absolute Maximum Ratings
1,2
@ T
A
=+25 °C (Unless Otherwise Noted)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Absolute Maximum
12 V
50 mA
-55 °C to +125 °C
-55 °C to +125 °C
1. Operation of this device above any one of these parameters
may cause permanent damage.
2. Please refer to application note M538 for surface mounting
instructions
Part Number
RoHs Compliant Part Number
MAVR-001320-12790T
MAVR-001330-12790T
MAVR-001340-12790T
MAVR-001350-12790T
MAVR-001320-11410T
MAVR-001330-11410T
MAVR-001340-11410T
MAVR-001350-11410T
Configuration
Single
Single
Single
Single
Single
Single
Single
Single
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Package
SC-79
SC-79
SC-79
SC-79
SOD-323
SOD-323
SOD-323
SOD-323
SC-70 (3L)
SC-70 (3L)
SC-70 (3L)
SC-70 (3L)
Package Cp
(pF)
0.10
0.10
0.10
0.10
0.11
0.11
0.11
0.11
0.12
0.12
0.12
0.12
Package Ls
(nH)
0.6
0.6
0.6
0.6
1.2
1.2
1.2
1.2
1.3
1.3
1.3
1.3
MA4ST1320CK-1146T
MA4ST1330CK-1146T
MA4ST1340CK-1146T
MA4ST1350CK-1146T
1
MAVR-001320-1146FT
MAVR-001330-1146FT
MAVR-001340-1146FT
MAVR-001350-1146FT
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MA4ST1300 Series
Low Voltage / Low Rs Silicon Hyperabrupt Varactor Diode
Rev. V5
Electrical Specifications @ T
A
= +25 °C
Breakdown Voltage @ I
R
= 10
μ
A, V
b
= 12 V Minimum
Reverse Leakage Current @ V
R
=10V, I
R
= 100 nA Maximum
Ct
(pF)
2
Part Number
Base
1
RoHS Compliant
Part No. Base
1
Min.
MA4ST1320
MA4ST1330
MA4ST1340
MA4ST1350
1.
2.
3.
MAVR-001320-XXXXXX
MAVR-001330-XXXXXX
MAVR-001340-XXXXXX
MAVR-001350-XXXXXX
48.0
22.0
15.0
9.5
Capacitance
Ratio
2
V
R
= 4.0 V
Ct
0.5
/Ct
3.0
Typ.
3.37
3.31
3.4
3.2
Rs
3
(Ohm)
V
R
= 2.0 V
Typ.
0.32
0.45
0.57
0.78
V
R
= 0.5 V
Nom.
55.0
25.0
18.0
11.0
Max.
63.0
30.0
21.0
13.5
Typ.
17.0
7.8
5.2
3.6
Max.
0.5
0.7
0.85
1.0
The prefix defines package style, configuration and packaging information. Contact representative for complete part identification.
Capacitance @ 1 MHz
Series Resistance @ 100 MHz

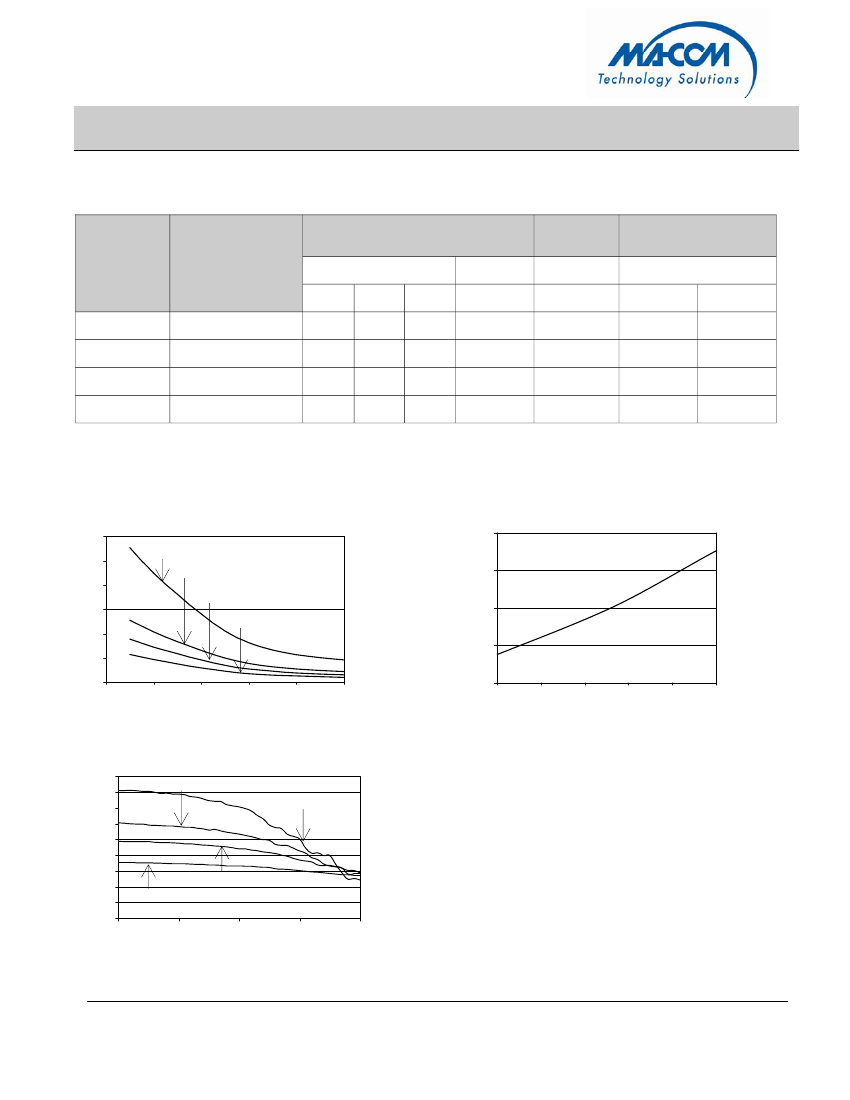

Typical Capacitance vs. Biasing Voltage
60
Typical Capacitance Change vs. Temperature
4%
MA4ST1320/ MAVR-001320
% of Capacitance Change
(relative to 25 C)
50
MA4ST1330/MAVR-001330
Capacitance (pF)
40
2%
MA4ST1340/ MAVR-001340
30
0%
MA4ST1350/MAVR-001350
20
10
0
0
1
2
3
4
5
Biasing Voltage (V)
-2%
-4%
-40
-15
10
35
60
85
Temperature (degree C)
Series Resistance vs Biasing Voltage*
0.90
Series Resistance (Ohm)
0.80
0.70
0.60
0.50
0.40
0.30
0.20
0.10
0.00
0.0
1.0
2.0
Biasing Voltage (V)
3.0
4.0
MA4ST1330 / MAVR-001330
MA4ST1320 / MAVR-001320
MA4ST1340 / MAVR-001340
MA4ST1350 / MAVR-001350
2
Specifications subject to change without prior notification
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MA4ST1300 Series
Low Voltage / Low Rs Silicon Hyperabrupt Varactor Diode
Rev. V5

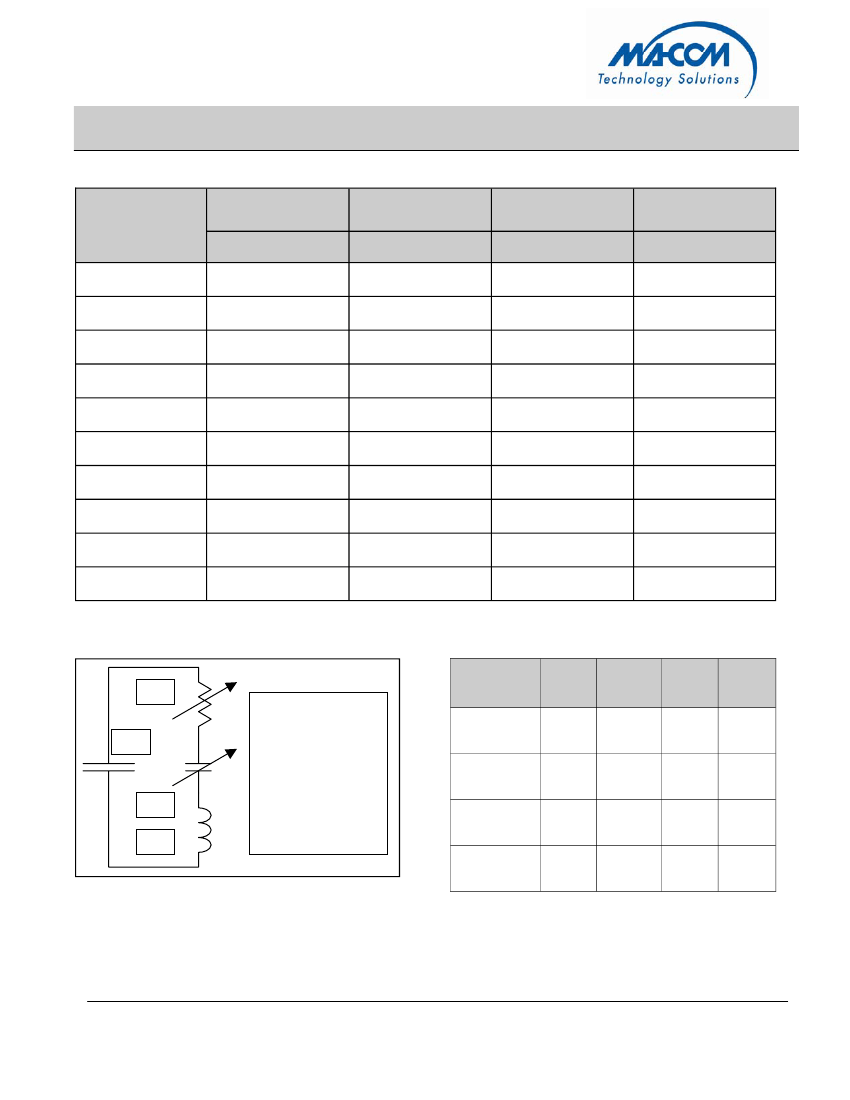

Typical Capacitance Values
MA4ST1320
V
R
(V)
MAVR-001320
Ct (pF)
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
55.45
45.0
36.3
28.3
21.2
16.4
13.3
11.4
10.0
9.1
MA4ST1330
MAVR-001330
Ct (pF)
25.4
20.7
16.8
13.2
10.1
7.9
6.4
5.5
4.8
4.4
MA4ST1340
MAVR-001340
Ct (pF)
17.7
14.4
11.7
9.2
7.0
5.4
4.4
3.8
3.3
3.0
MA4ST1350
MAVR-001350
Ct (pF)
11.4
9.3
7.6
5.9
4.5
3.4
2.9
2.5
2.2
2.0
Spice Model
Rs
Intrinsic Diode Model
N=N
Cj0=Cj0
Vj=Vj
Fc=0.5
BV=20 V
M=M
Parasitic Cp & Ls
Are per Above Table
Part Number
MA4ST1320
MAVR-001320
MA4ST1330
MAVR-001330
MA4ST1340
MAVR-001340
MA4ST1350
MAVR-001350
N
CJO
(pF)
71.5
Vj
(V)
20.35
M
1.1
13.21
Cp
1.1
32.8
20.91
13.72
Cj
Ls
1.1
22.7
22.32
14.72
1.1
14.3
25.52
15.87
3
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MA4ST1300 Series
Low Voltage / Low Rs Silicon Hyperabrupt Varactor Diode
Rev. V5

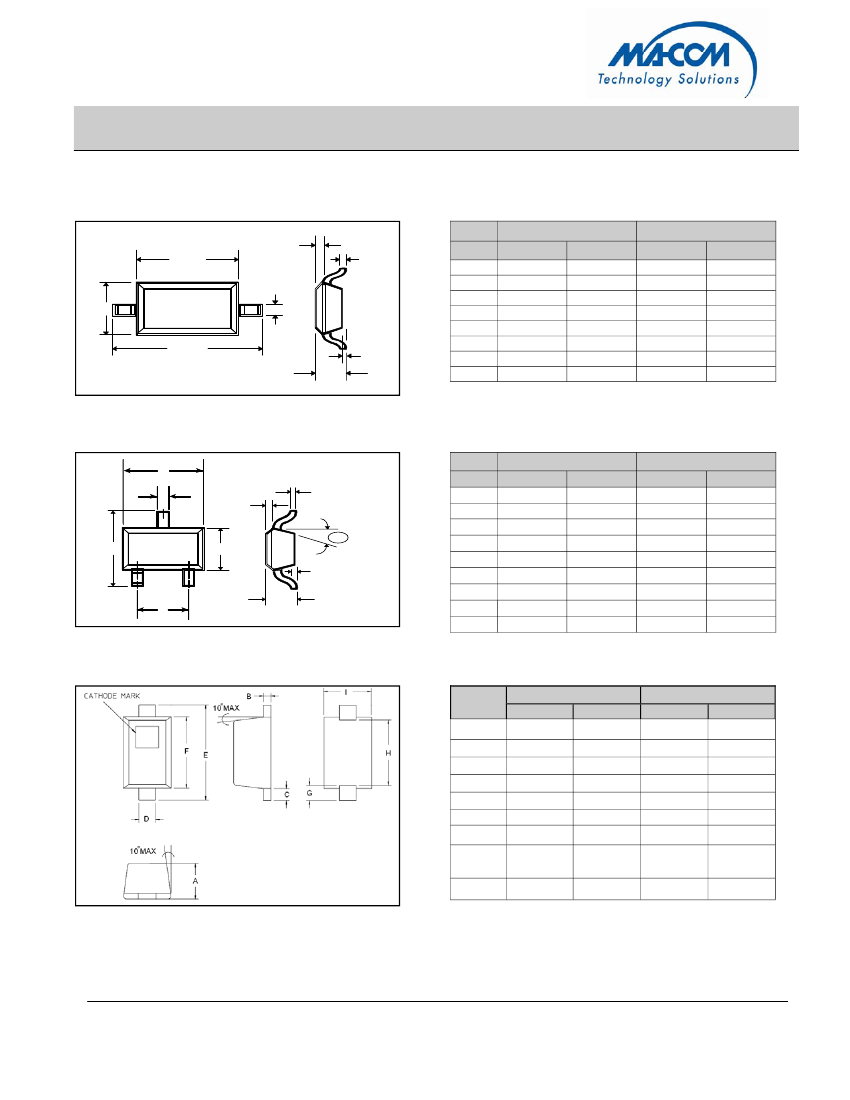

Case Styles
SOD-323 (Case Style 1141)
INCHES
C
F
D
G
E
MILLIMETERS
MIN.
⎯
⎯
⎯
0.25
0.08
1.6
1.15
2.3
DIM.
A
B
C
D
E
F
G
H
MIN.
⎯
⎯
⎯
0.010
0.003
0.063
0.045
0.091
MAX.
0.043
0.004
0.008
0.016
0.006
0.075
0.057
0.106
MAX.
1.1
0.1
0.2
0.4
0.15
1.9
1.45
2.7
H
B
A
SC-70, 3 Lead (Case Style 1146)
A
E
J
H
DIM.
A
B
C
D
E
F
G
H
J
INCHES
MIN.
MAX.
0.071
0.045
0.071
0.047
0.010
0.031
0.000
0.004
0.004
0.087
0.053
0.094
0.057
0.016
0.039
0.004
0.007
0.010
MILLIMETERS
MIN.
MAX.
1.80
1.15
1.80
1.19
0.25
0.80
0.00
0.10
0.10
2.20
1.35
2.40
1.45
0.41
1.00
0.10
0.18
0.25
10
°
M A X.
C
B
G
F
D
SC-79 (Case Style 1279)
DIM.
A
B
C
D
E
F
G
H
I
INCHES
MIN.
MAX.
0.020
0.003
0.006
0.010
0.059
0.043
0.011
0.037
typical
.028
0.028
0.008
0.010
0.014
0.067
0.051
0.012
0.043
.035
MILLIMETERS
MIN.
MAX.
0.50
0.08
0.15
0.25
0.08
1.50
0.28
0.94
0.71
0.71
0.20
0.25
0.36
0.15
1.30
0.30
1.09
0.89
4
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MA4ST1300 Series
Low Voltage / Low Rs Silicon Hyperabrupt Varactor Diode
Rev. V5

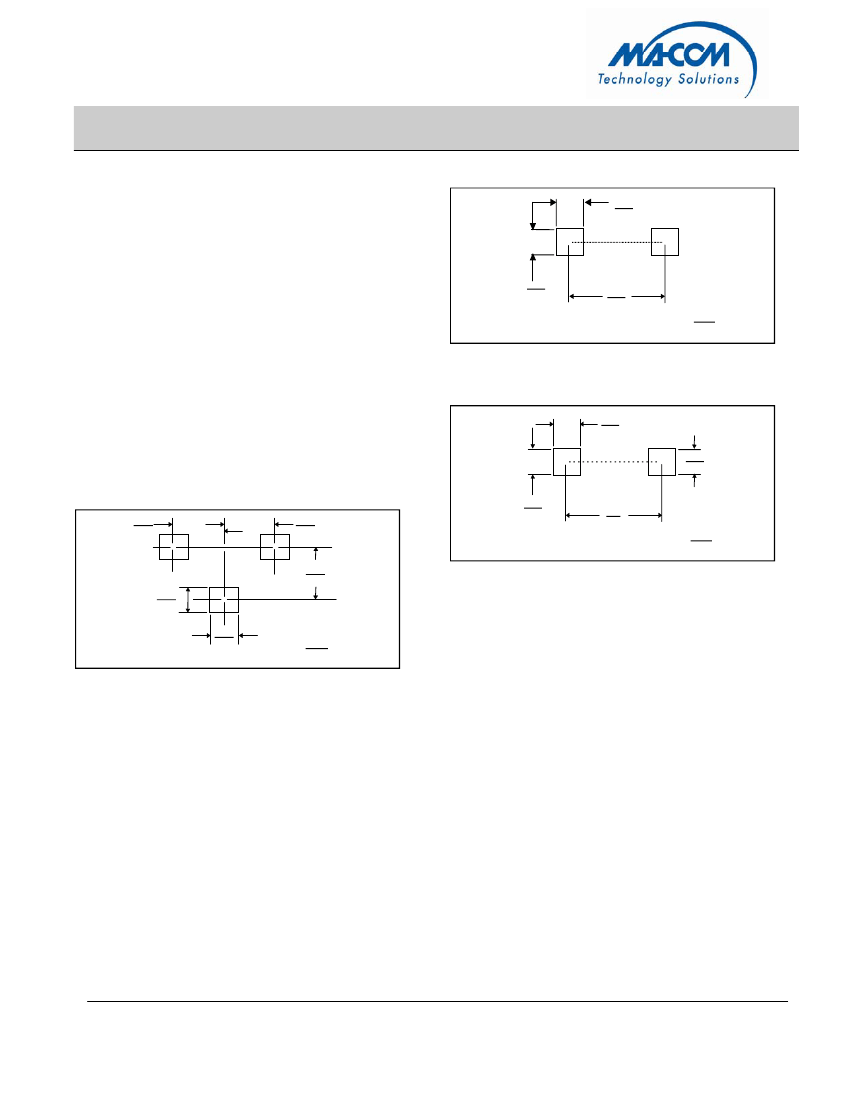

Mounting Information
The illustration indicates the recommended
mounting pad configuration for the SC-79, SOT-323
and SOD-323 packages. Solder paste containing
flux should be screened onto the pads to a thickness
of 0.005- 0.007 inches. The plastic package is
placed in position, firmly adhering to the solder
paste.
Permanent attachment is performed by a reflow
soldering procedure during which the tab
temperature does not exceed +275
°C
and the body
temperature does not exceed +250
°C,
for standard
models and +260
°C
for the RoHS compliant
devices.
Please refer to Application Note M538 for surface
mounting instructions.
SC-79 (Case Style 1279)
0.020
0.50
0.020
0.50
0.053
1.35
Dimenstions: inches
mm
SOD-323 (Case Style 1141)
0.030
0.80
0.030
0.80
SC-70, 3 Lead (Case Style 1146)
0.030
0.80
0.030
0.80
0.030
0.80
.090
2.2
Dimenstions: inches
mm
0.075
1.9
0.030
0.80
0.030
0.80
Dimenstions: inches
mm
5
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
京公网安备 11010802033920号
EEWORLD
